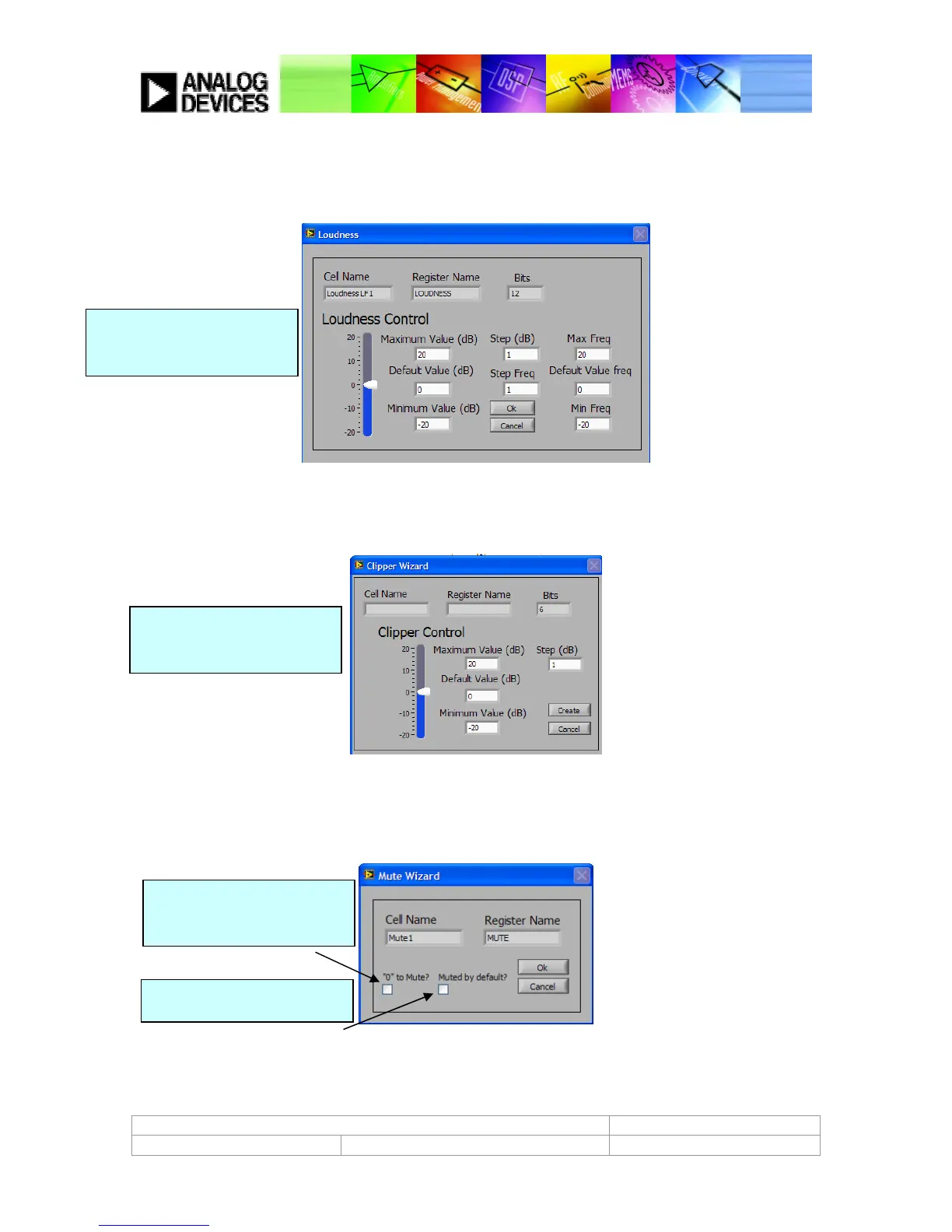

Loudness Wizard
The loudness wizard creates a loudness block control. This control will have two fields in the register, one to control
the cutoff frequency and one to control the level. The wizard will automatically create these two fields, and assign
the suffixes _LFC and _LLEVEL to generate the two inputs.
Figure 66: Loudness wizard
Clipper Wizard
Controls the clipper blocks. This wizard is very similar to the volume / gain wizard.
Figure 67: Clipper wizard
Mute Wizard
Controls the mute blocks.
Figure 68: Mute wizard
1) Select the maximum, default
and minimum values along with
step sizes
1) Select the maximum, default
and minimum values along with
step sizes
1) If ticked, a 0 will mute the
output. If unticked a 1 will mute
the output.
2) If ticked, by default the block
will
be muted
