External Reference In
The External Reference In port is a 50 Ω BNC female connector that provides for input of an
external frequency reference. Refer to your Technical Data Sheet for valid frequencies. To
prevent damage to your instrument, do not use pliers or a wrench to tighten the BNC
connector.
External Trigger In (S332E, S362E Models)
A TTL signal that is applied to the External Trigger female BNC input connector causes a
single sweep to occur. In the Spectrum Analyzer mode, it is used in zero span, and triggering
occurs on the rising edge of the signal. After the sweep is complete, the resultant trace is
displayed until the next trigger signal arrives.
Analyzer/RF In
50 Ω Type-N female connector. Maximum input is +33 dBm at 50 VDC.
USB Interface – Mini-B
The USB 2.0 Mini-B connector can be used to connect the Site Master directly to a PC. The
first time the Site Master is connected to a PC, the normal USB device detection by the
computer operating system will take place.
GPS Antenna Connector (Option 31)
The GPS antenna connection on the Site Master is type SMA-female. GPS function is
described in Chapter 6, “GPS (Option 31) ”.
To prevent damage to your instrument, do not use pliers or a plain wrench to tighten the
SMA connector. Do not over-tighten the connector. The recommended torque is 8 lbf·in
(0.9 N·m or 90 N·cm).

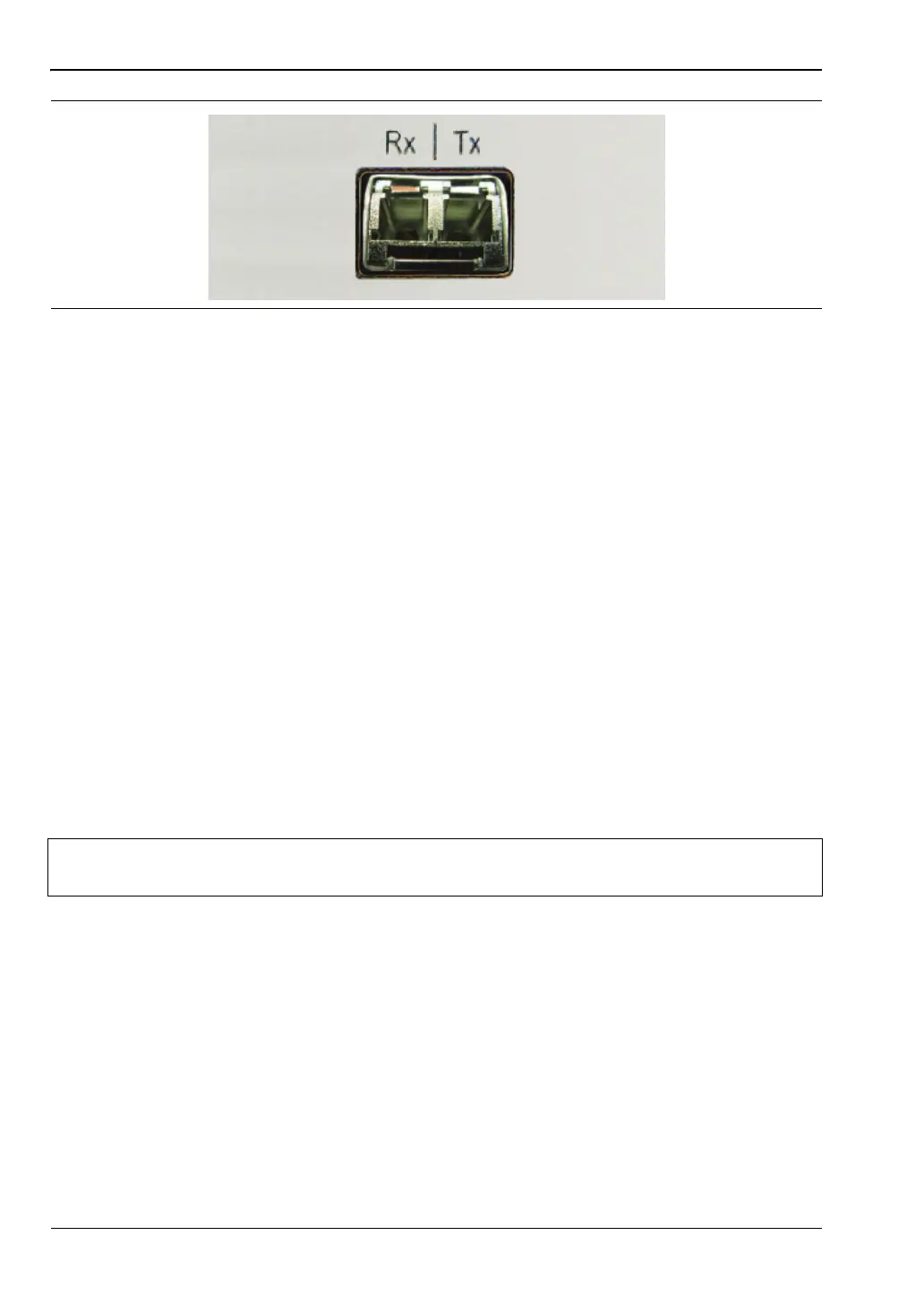

Figure 2-17. Optical Module Connector (Option 751)
Note
For proper detection, the applicable Anritsu Software Tool should be installed on
the PC prior to connecting the Site Master to the USB port.
