Instrument Overview 2-7 Connector Panel
Site Master User Guide PN: 10580-00252 Rev. K 2-17
2-7 Connector Panel

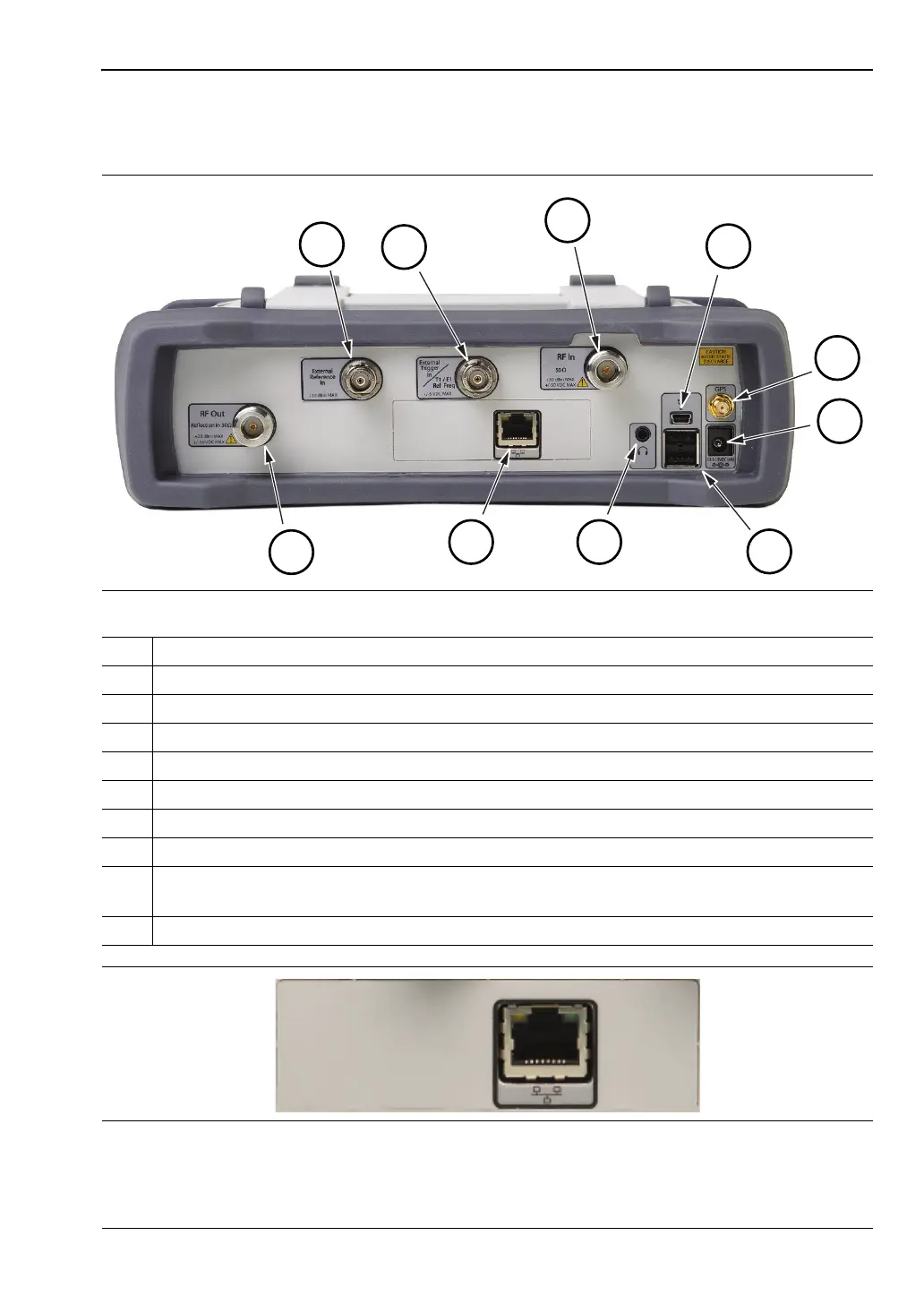

The Site Master S332E connector panel is illustrated in Figure 2-15.
Figure 2-15. S332E Connector Panel
1. External Reference In
2. External Trigger In
3. Analyzer/RF In (Type N)
4. USB Mini-B
5. GPS Type SMA (Option 31)
6. External Power
7. USB Type A
8. Headset jack
9. Option 411: RJ45 Ethernet Connector (see Figure 2-16)
Option 751: SFP Optical Module Connector (see Figure 2-17)
10. RF Out (Type N)
Figure 2-16. RJ45 Ethernet Connector (Option 411)
1
2
3
4
5
6
7
89
10
