Spectrum Analyzer MG PN: 10580-00349 Rev. H 1-1
Chapter 1 — General Information
1-1 Introduction
This Measurement Guide describes the test and measurement functions of Anritsu RF and
Microwave Handheld Instruments. Basic spectrum analyzer functions are included with most
Anritsu handheld instruments. Other functions are available only when the related option is
installed and activated:
• “Interference Analyzer (Option 25)”
• “Channel Scanner (Option 27)”
• “CW Signal Generator (Option 28)”
• “Coverage Mapping (Option 431)”
• “AM/FM/PM Analyzer (Option 509)”
• “EMF (Option 444)”
Screen captured images contained in this document are provided as examples. Illustrations of
menu maps, or menu trees, may show submenu keys that display only under certain
conditions. The actual displays, screen menus, and measurement details may differ based on
instrument model, firmware version, installed options, and current instrument settings.
1-2 Selecting a Measurement Mode
To switch to another measurement mode, or application:
1. Press the Shift front panel key, followed by Mode (9). The Mode Selector dialog opens.
2. Use the arrow keys or rotary knob, or press the touch screen to highlight the desired
measurement mode. The list of available applications depends on the options that are
installed and activated on your instrument. See Figure 1-1.
3. Press Enter.

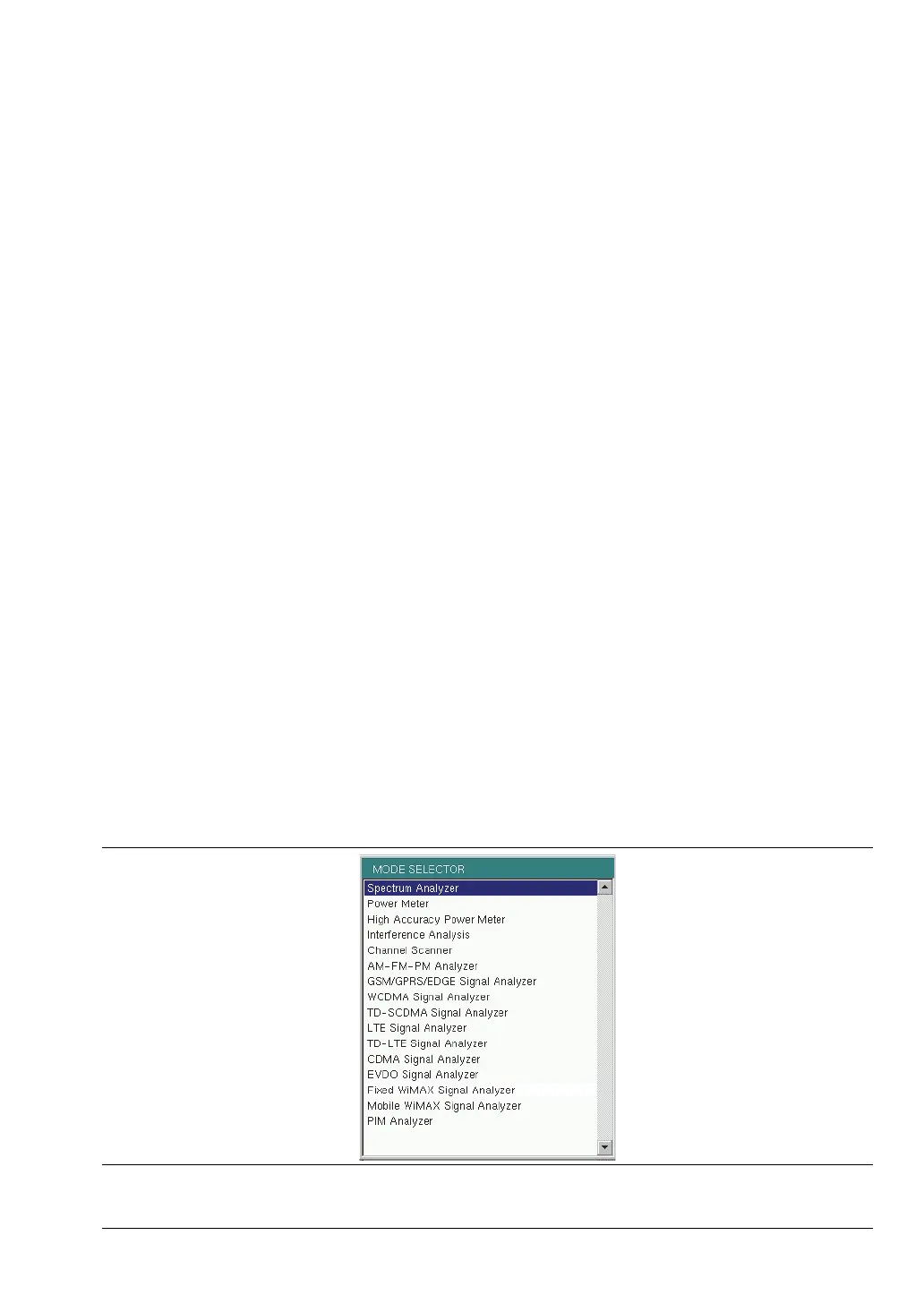

Figure 1-1. Mode Selector Dialog Box
