Chapter 9 — EMF (Option 444)
9-1 Introduction
Option 444 adds the EMF Measurement menu to the Spectrum Analyzer measurement mode.
It must be used in conjunction with the Anritsu isotropic antenna, at a frequency range that
is within specification of the instrument and antenna used. Refer to the isotropic antenna and
spectrum analyzer technical data sheets.
9-2 Connecting the Antenna
1. Connect the antenna RF connector to the Analyzer/RF In port on the instrument. See
Figure 9-1. The antenna connector must be finger tight.
2. Connect the antenna USB connector to one of the USB Type A ports on the instrument.
Note
Not all instrument models offer every option. Please refer to the Technical Data
Sheet of your instrument for available options.

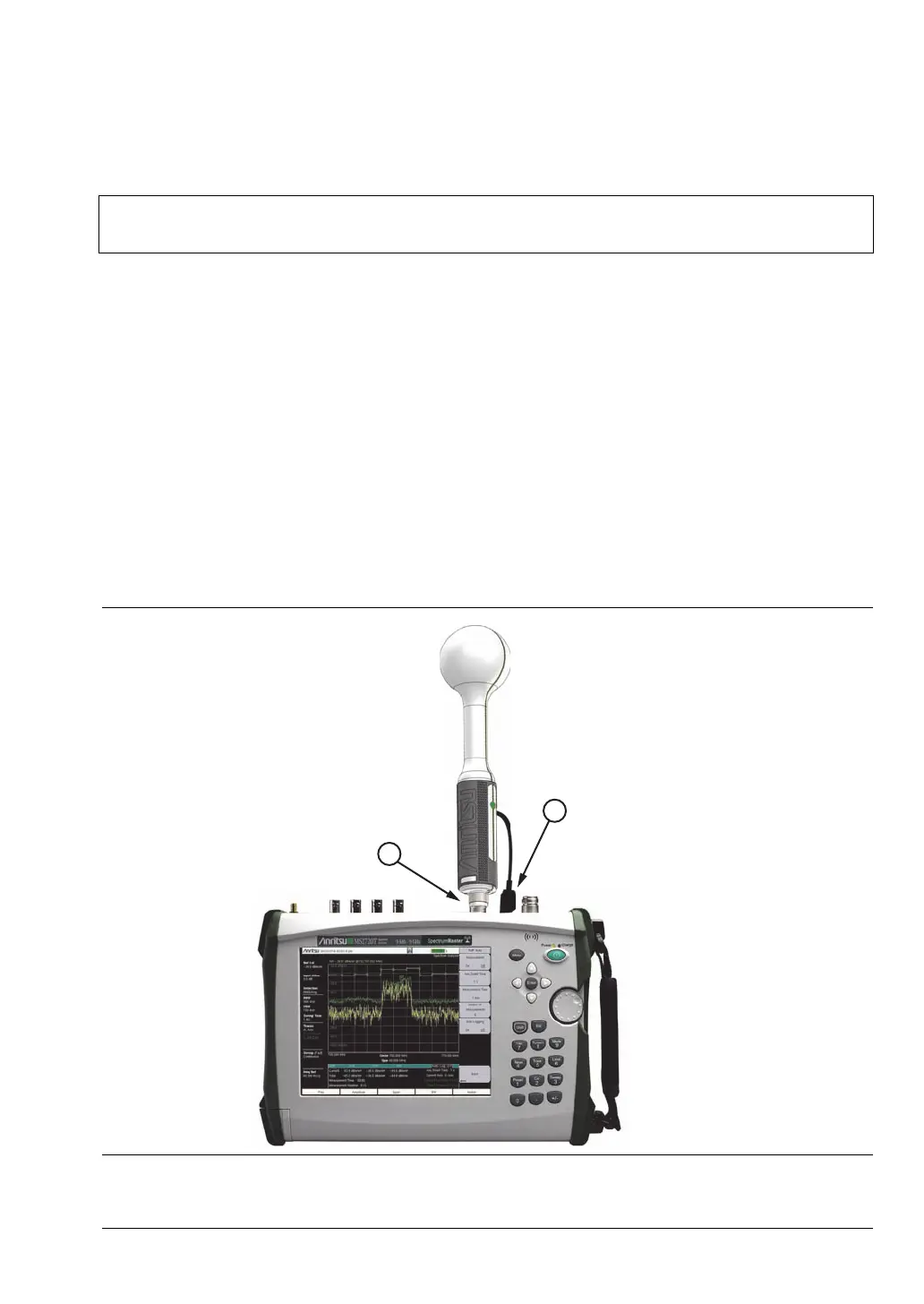

Figure 9-1. Connecting the Anritsu Isotropic Antenna
1
2
