Spectrum Analyzer 2-22 Spurious Emissions (Out-of-Band)
Spectrum Analyzer MG PN: 10580-00349 Rev. H 2-31
You can also select the Spurious Emissions submenu by pressing the Shift key followed
by the Measure (4) key, then pressing the Masks and C/I submenu key followed by the
Spurious Emissions (Out-of-Band) key.
7. Press Segment Setup to display the Spurious Segments submenu, illustrated in
Figure 2-18.
8. Press Add Current Settings As New Segment.
9. Press Segment Start Amplitude and enter the desired pass/fail limit amplitude for the
first point of the segment.
10. Press Segment Stop Amplitude and enter the desired pass/fail limit amplitude for the
last point of the segment.
11. Press Save Current Settings to Selected Segment.
12. Repeat Step 3 through Step 11 as necessary to create more segments.
13. Press Save Mask and enter the mask name in the Filename entry field. If needed, select
Spurious Emission Mask from the Filetype pull-down menu. Press Enter.
To start the spurious emission measurements, refer to “Spurious Emissions (Out-of-Band)
Measurements” on page 2-34.

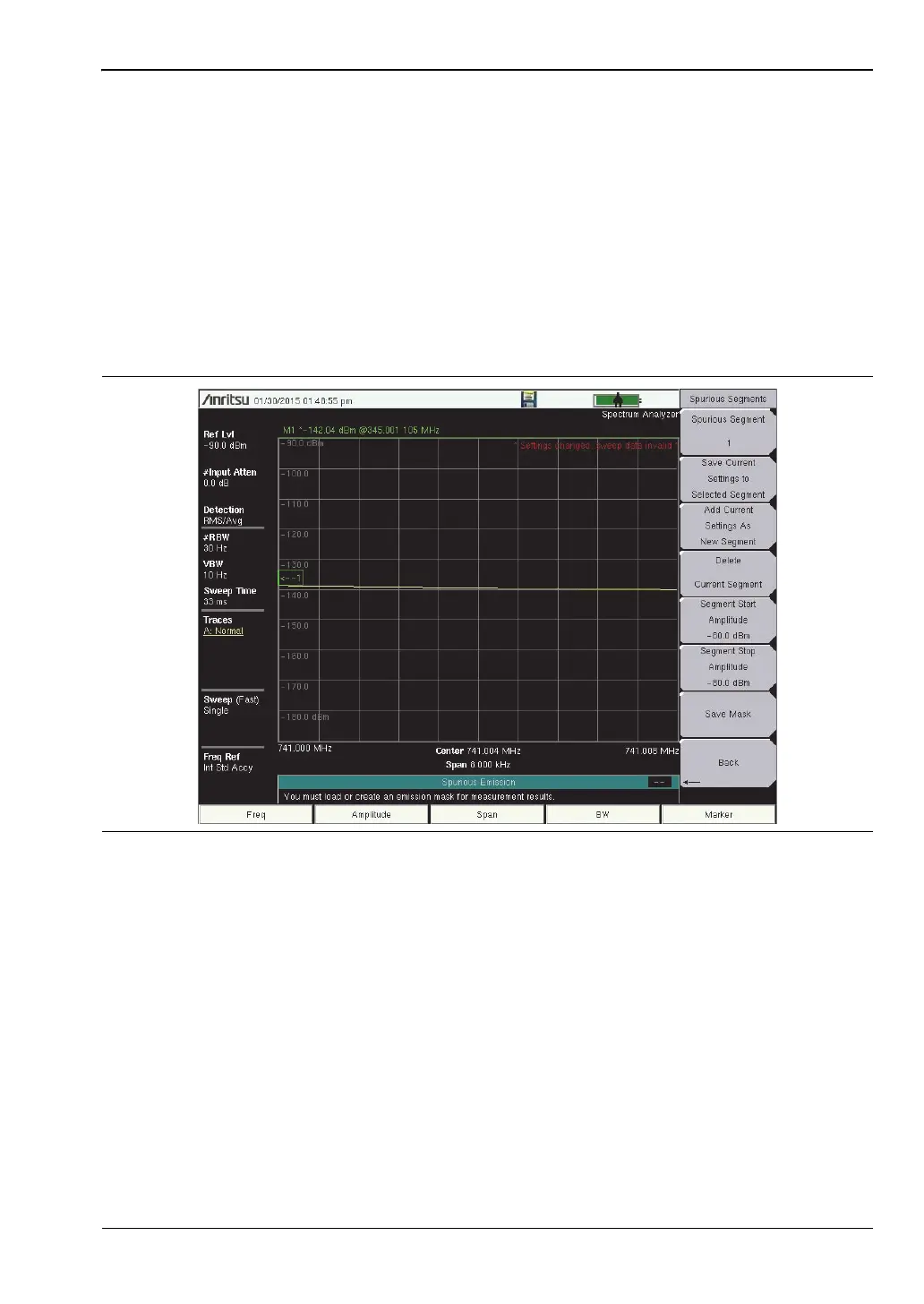

Figure 2-18. Spurious Segments Screen
