Spurious Emissions (Out-of-Band) Measurements
Three types of measurements are available once you have created an emission mask. You can
choose to sweep the full mask once or continuously, or sweep an individual mask segment.
You can also select to save or not save the measurement results.
Sweeping All Segments Once
1. Press the Sweep submenu key and select Single.
2. Press the Auto Save submenu key and select Off, On, or Full. Refer to “Auto Save Modes”.
3. Press Sweep All to initiate one measurement sweep of the full spurious emission mask.
See Figure 2-19.
Sweeping All Segments Continuously
1. Press the Auto Save submenu key and select Off, On, or Full. Refer to “Auto Save Modes”.
2. Press the Sweep submenu key and select Continuous to start the measurements.
3. Press Sweep again to select Single and stop the measurements.
Sweeping an Individual Segment
1. Press the Sweep submenu key and select Single.
2. Press the Auto Save submenu key and select Off, On, or Full. Refer to “Auto Save Modes”.
3. Press Sweep Once to initiate one measurement sweep of the currently selected segment,
which is highlighted in yellow in the Spurious Emission table. See Figure 2-19.

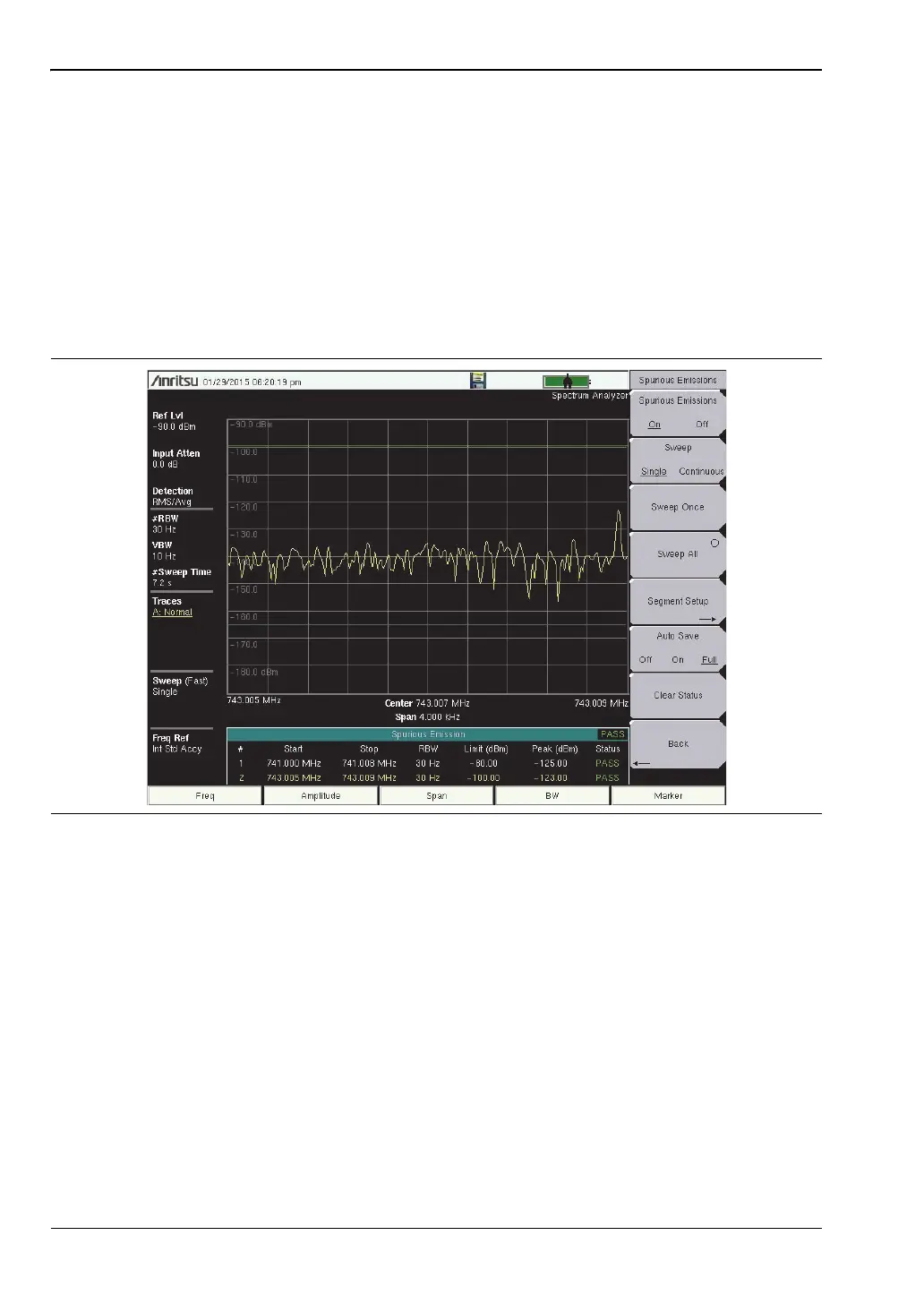

Figure 2-19. Spurious Emission Measurements
