Anritsu Spectrum Master MS2720T User Manual

3-12 Measurements Menu W-CDMA/HSPA+ Signal Analyzer
3-32 PN: 10580-00234 Rev. T 3GPP MG
Band Spectrum Menu
Key Sequence: Measurements > RF Measurements > Band Spectrum
Channel Spectrum Menu
Key Sequence: Measurements > RF Measurements > Channel Spectrum
Ref Level: Sets the required reference level.
Scale: Changes the scale.
Band Channel: Use the cursor to select the required channel to analyze the
selected channel signal.
Previous Band: Selects the previous band.
Next Band: Selects the next band.
Back: Returns to the “RF Measurement Menu” on page 3-31.

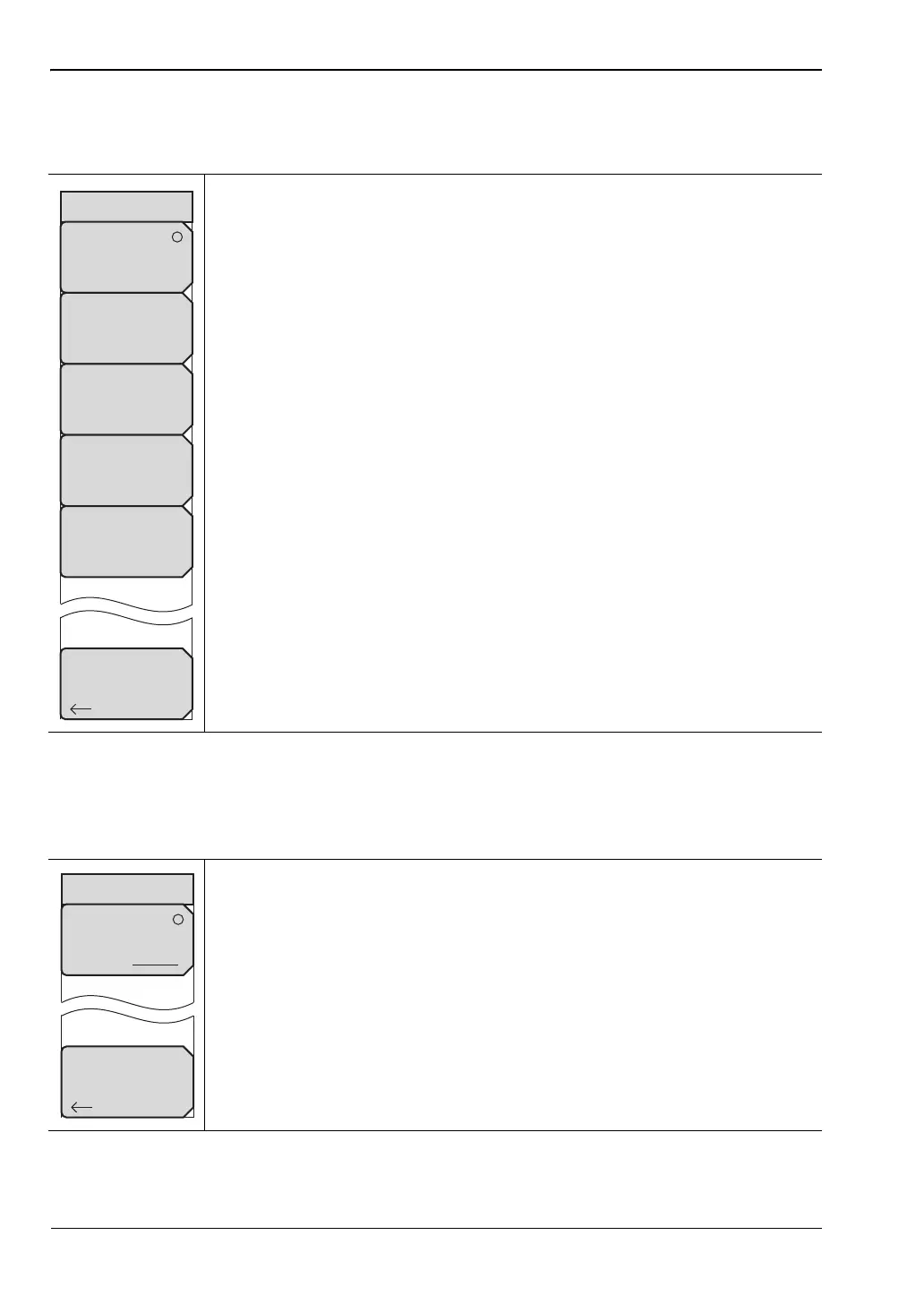

Figure 3-22. W-CDMA/HSPA+ Band Spectrum Menu
Span: Select either a 5 MHz or 10 MHz span.
Back: Returns to the “RF Measurement Menu” on page 3-31.
Figure 3-23. W-CDMA/HSPA+ Channel Spectrum Menu
Back
Band Spectrum
Ref Level
10.0 dBm
Scale
10 dB
Band Channel
4357
Previous
Band
Next
Band
Back
Channel Spectrum
Span
5 MHz 10 MHz
