CDMA Signal Analyzer 2-5 CDMA Demodulator Measurements Setup
3GPP2 MG PN: 10580-00235 Rev. D 2-9
CDP Table View Setup
The CDP table view displays all of the active codes in a tabular format.
From the Demodulator measurement menu, use the following procedure for CDP Table view:
1. Press the CDP submenu key to display the Code Domain Power menus.
2. Press the Zoom submenu key to activate zoom for 16, 32, or 64 codes.
3. Press the Zoom Start Index submenu key and enter the desired location manually.
4. Press CDP Units to select either Relative power (in dB) or Absolute power (in dBm).
5. Press Back to go back to the previous menu.
6. Press the CDP Table submenu key to display the measurements (Figure 2-7).

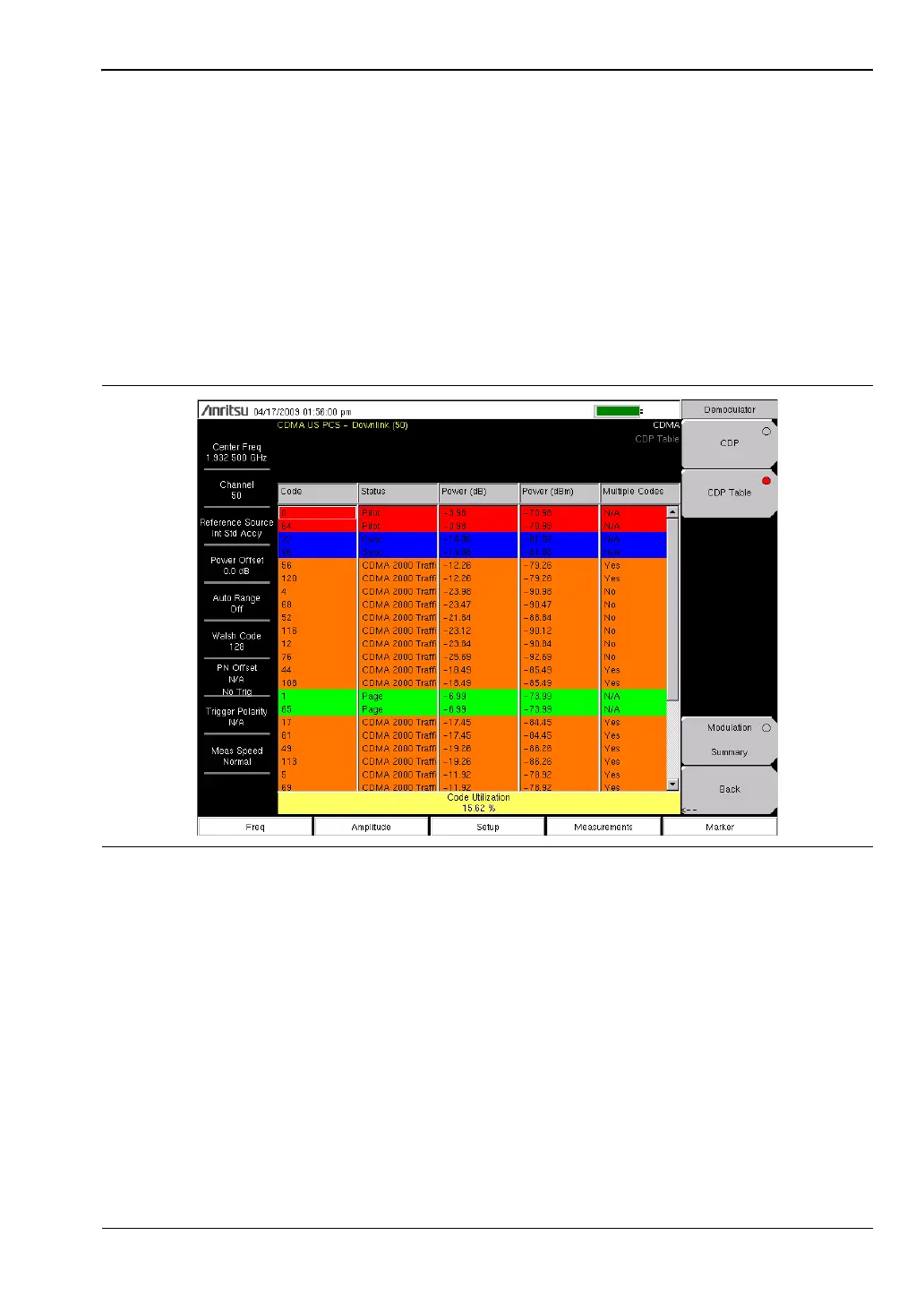

Figure 2-7. Demodulator, CDP Table
