EVDO Signal Analyzer 3-6 EVDO Over-The-Air Measurement Setup
3GPP2 MG PN: 10580-00235 Rev. D 3-13
The following procedures are used to display the OTA Pilot Scan and Multipath views:
From the OTA menu, press the Pilot Scan submenu key to display the nine strongest pilots,
the PN codes, Ec/Io, Tau, Pilot Power, Channel Power, and Pilot dominance (Figure 3-10).
From the OTA menu, press the Multipath submenu key to display six channels of multipath
parameters, including Ec/Io, Tau, Channel Power, and Multipath Power (Figure 3-11).

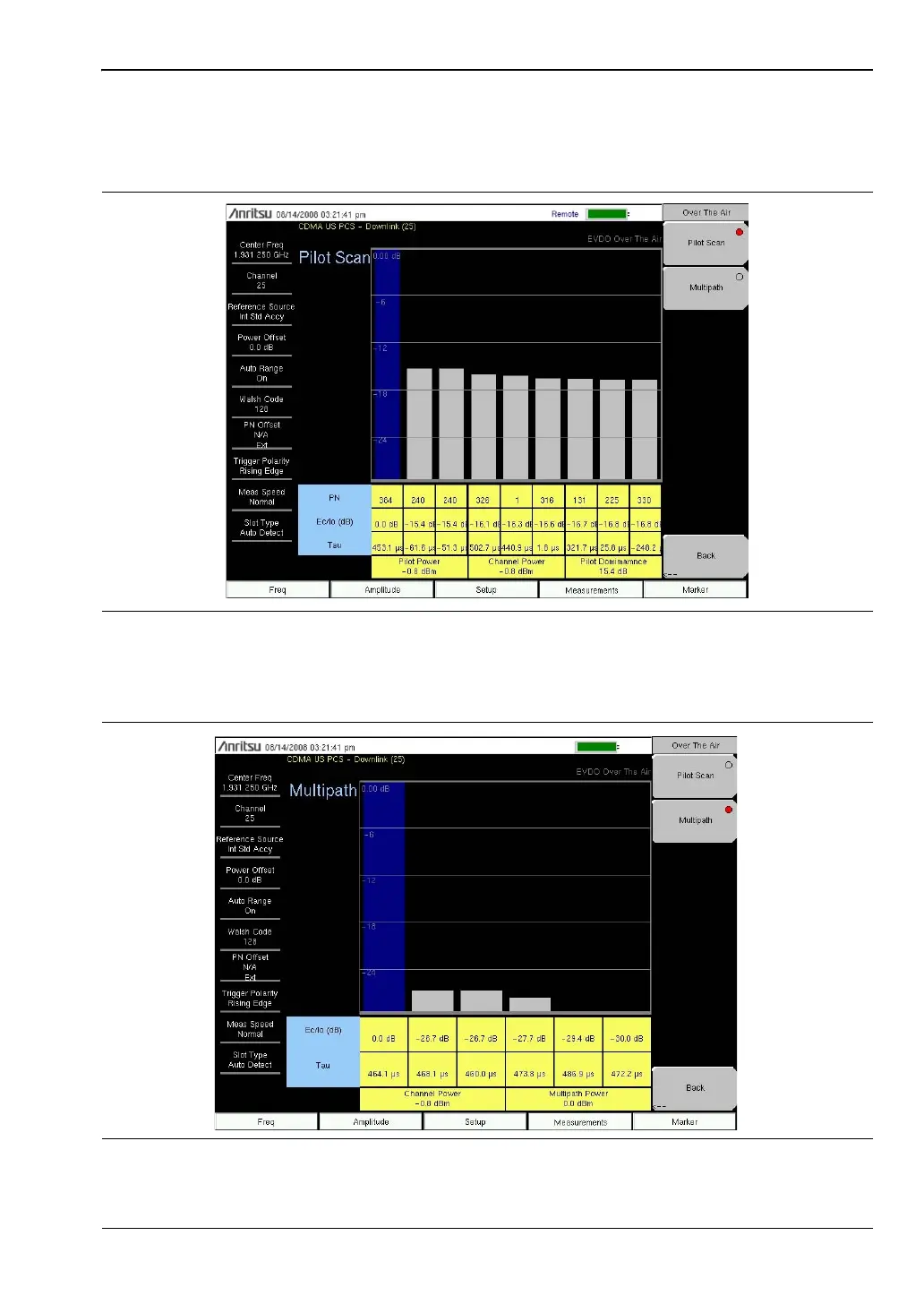

Figure 3-10. EVDO OTA Pilot Scan
Figure 3-11. EVDO OTA Multipath
