3-7 Pass Fail Setup
The instrument stores user-defined pass fail criteria test models for testing base station
performance and recalls these models for quick, easy measurements. After selection of a test
model, the instrument displays test results in tabular format with clear PASS or FAIL
indications that include min/max threshold (Figure 3-12).
Using Master Software Tools, a custom test list can be created and downloaded into the
BTS Master. All critical parameters can be selected for pass fail testing.
From the Measurements main menu, use the following procedure to enter the Pass Fail
Mode:
1. Press the Pass Fail submenu key to display pass fail criteria.
2. Press the Pass Fail submenu key again to open the Pass Fail Mode key menu.
3. Press the Select Pass/Fail Test submenu key and select the applicable Test Model to
activate the measurement.
4. Press the Reset submenu key to reset the pass fail function and begin a new pass fail
test.

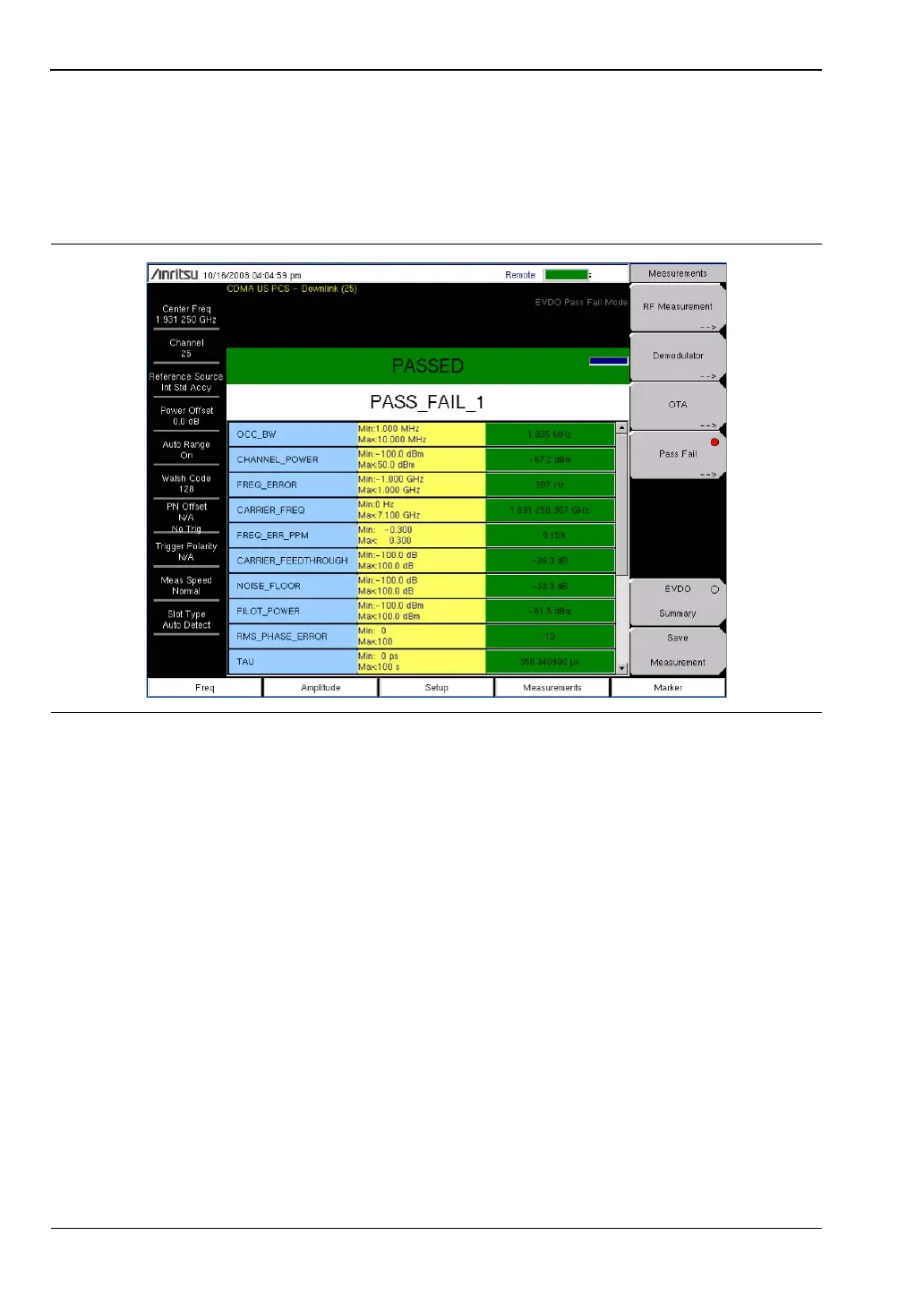

Figure 3-12. Pass Fail Measurement
