POS MV V4 User Guide
Fault Identification
Copyright © Applanix Corporation, 2009
9-26

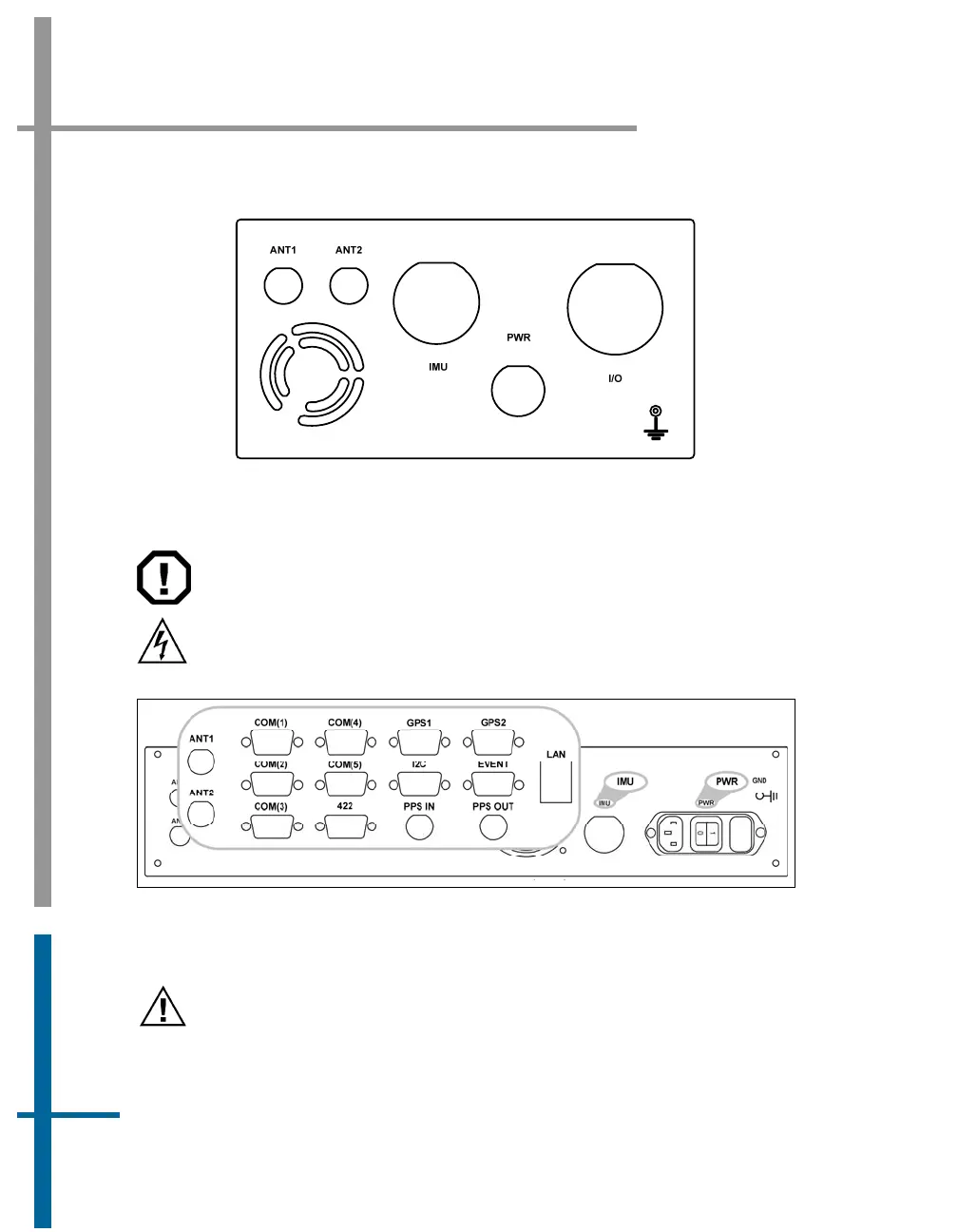

Figure 55: PCS Rear Panel - POS MV V4-1
ELECTRICAL HAZARD
The PCS employs double pole / neutral fusing on the powe
r
receptacle. Each of the two RoHS compliant fuses are rated at:
• Rating = 250 V
• Current = 3.15 A
• Type = slow blow, long time lag
• Case = 5 mm x 20 mm
Figure 56: PCS Rear Panel - POS MV V4
Inertial Measurement Unit
The IMU contains sensitive and expensive solid-state
accelerometer and gyro components. Permanent damage to
these components will result if handled roughly. To prevent
irreversible damage, handle the IMU with care.
