Applanix POS MV V4 - Figure 7: PCS Rear Panel - POS MV V4-1; Table 3: Connector;Cable Summary

To Next Page

To Previous Page

POS MV V4 User Guide

Installation

2-19

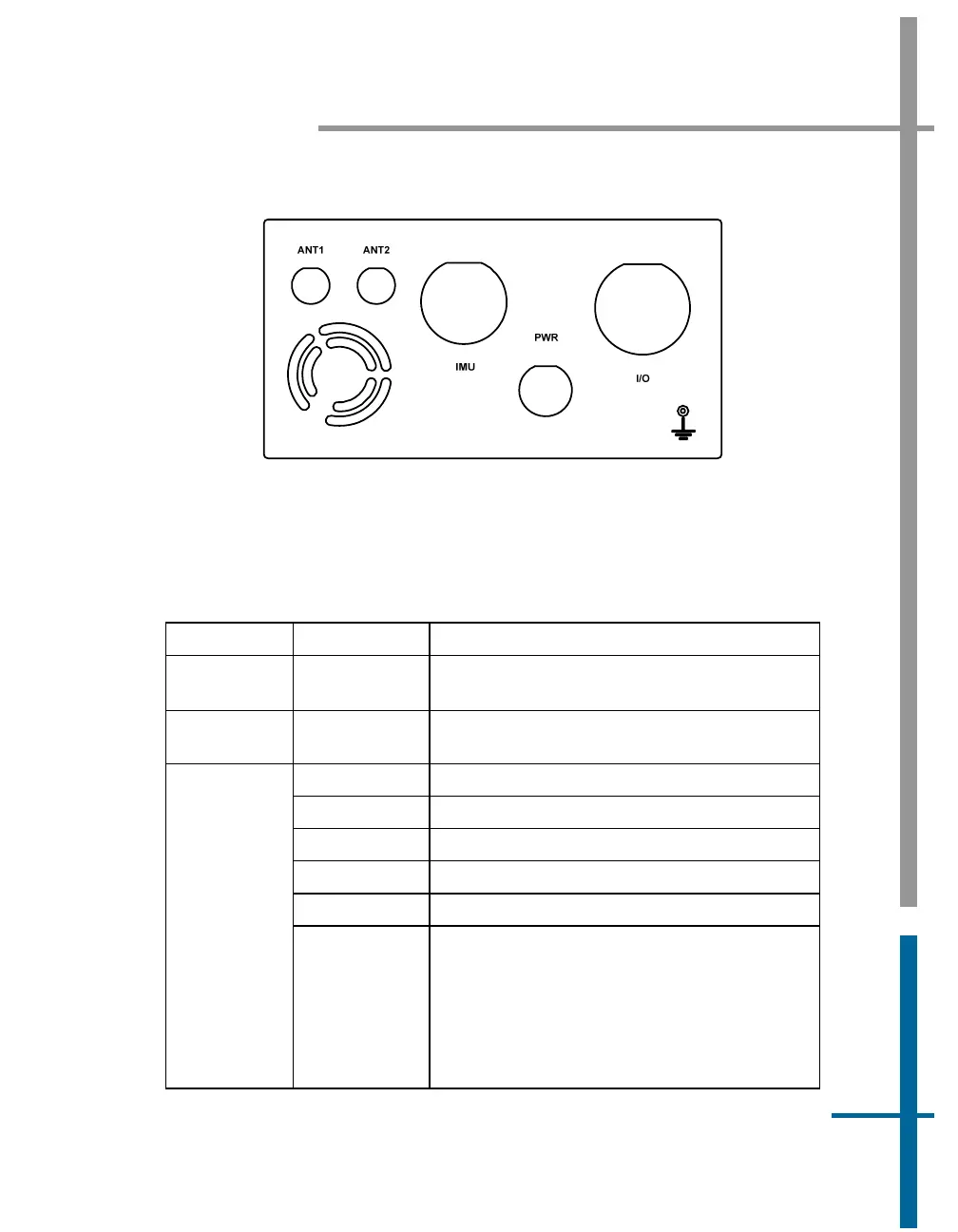

Figure 7: PCS Rear Panel - POS MV V4-1

Use

Table 3 as a guide when making cable connections to the PCS rear

panel.

Table 3: Connector/Cable Summary - POS MV V4-1

Connector Port Description

PWR Connects to a power converter; see page 2-

4 for details

IMU

• RS-422 serial I/O port

• Supplies dc power and data to/from IMU

COM (1) RS-232 Serial I/O port (digital)

COM (2) RS-232 Serial I/O port (digital)

COM (3) RS-232 Serial I/O port (digital)

COM (4) RS-232 Serial I/O port (digital)

COM (5) RS-232 Serial I/O port (digital)

I/O

GNSS 1/2

(GNSS 1 =

primary)

(GNSS 2 =

secondary)

• RS-232 Serial I/O port (digital)

• Primary GNSS receiver software upgrade

- contact Applanix Customer Support for

details

• Secondary GNSS receiver software

upgrade - contact Applanix Customer

Support for details
