Applanix POS MV V4 - System Description and Overview; Figure 1: Typical POS MV Components

POS MV V4 User Guide
Introduction
Copyright © Applanix Corporation, 2009
1-2
System Description and Overview
Each POS MV system consists of a POS Computer System (PCS) with two
embedded Global Navigation Satellite System (GNSS) receivers, two GNSS
antennas and an Inertial Measurement Unit (IMU).
The PCS has two versions:
POS MV V4 - a 19-inch rack mount chassis, 2U high, ac powered.
POS MV V4-1 - a stand alone mini-POS (mPOS) chassis, dc powered.
The POS MV product family consists of three models:
POS MV 320 - consists of a POS MV V4 PCS and a type 2 IMU.
POS MV WaveMaster - consists of a POS MV V4-1 PCS and a type 17
IMU.
POS MV WaveMaster RM - consists of a POS MV V4 PCS and a type 17
IMU.
Shown in Figure 1 and detailed in Appendix E are the typical components of
the POS MV systems.

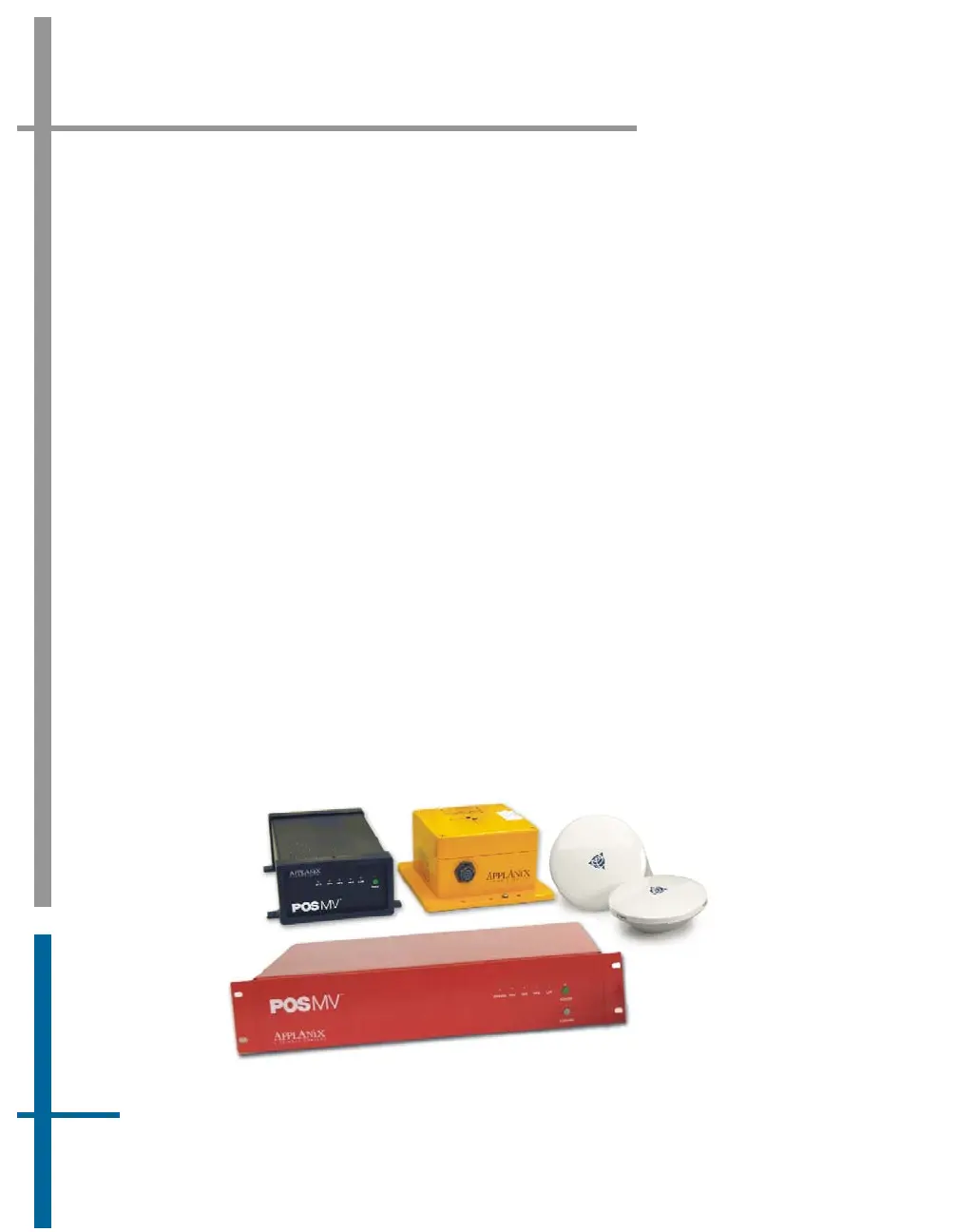

Figure 1: Typical POS MV Components
