POS MV V4 User Guide
Drawings
Copyright © Applanix Corporation, 2009
E-3

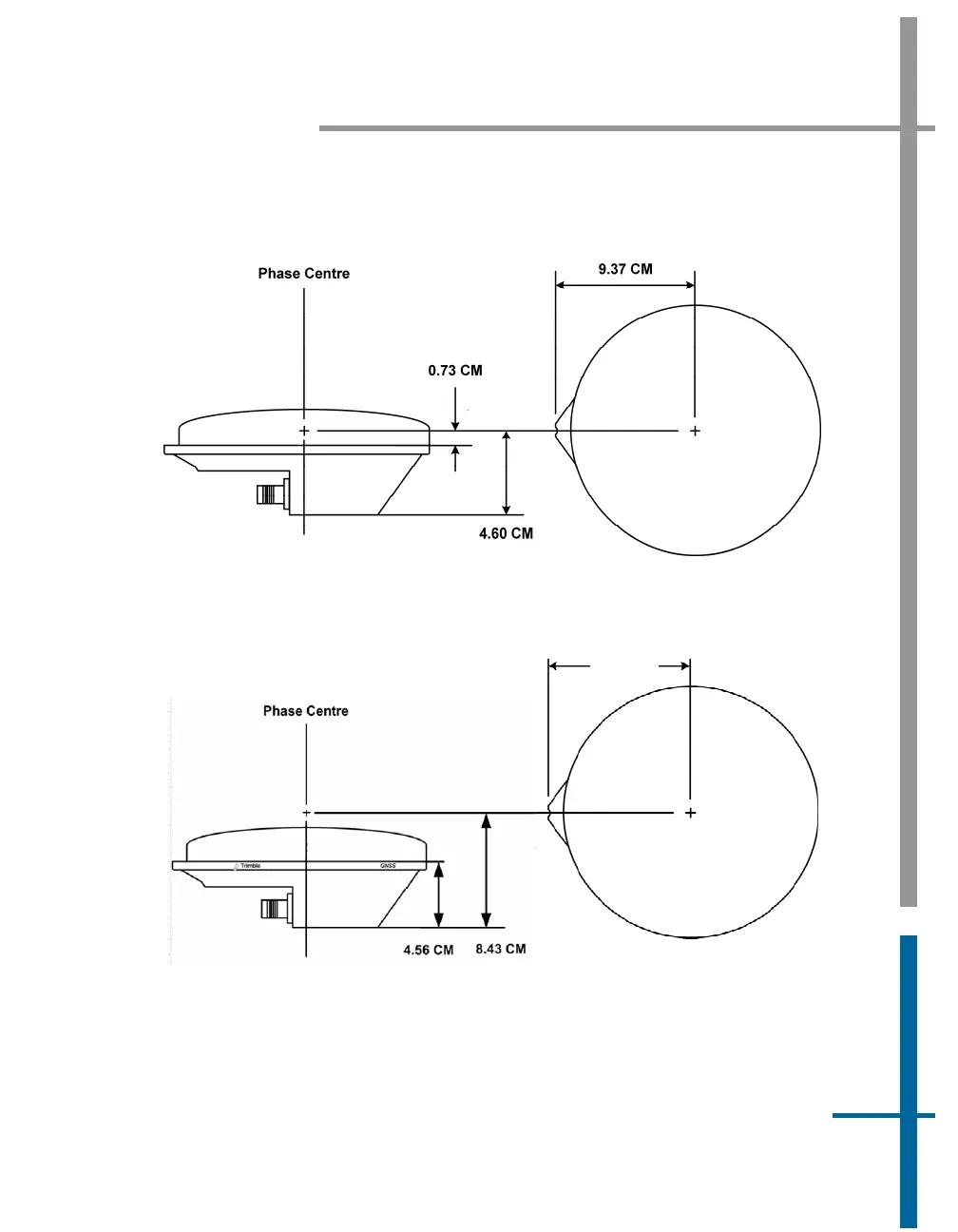

Figure 85: Zephyr Model 1 GPS Antenna Footprint
9.37 CM
Figure 86: Zephyr Model 2 GNSS Antenna Footprint
