Octave Configuration Guide 28
Width (ms) – set the width of the pulse in milliseconds. This will communicate a
pulse for each passed width count.
For example, if you have set the resolution to 1 liter per pulse and the pumping
flow rate is 3.6 cubes per hour, the result will be one pulse per second. The
calculation is the total liters divided to the number of minutes, divided to the
number of seconds in a minute:

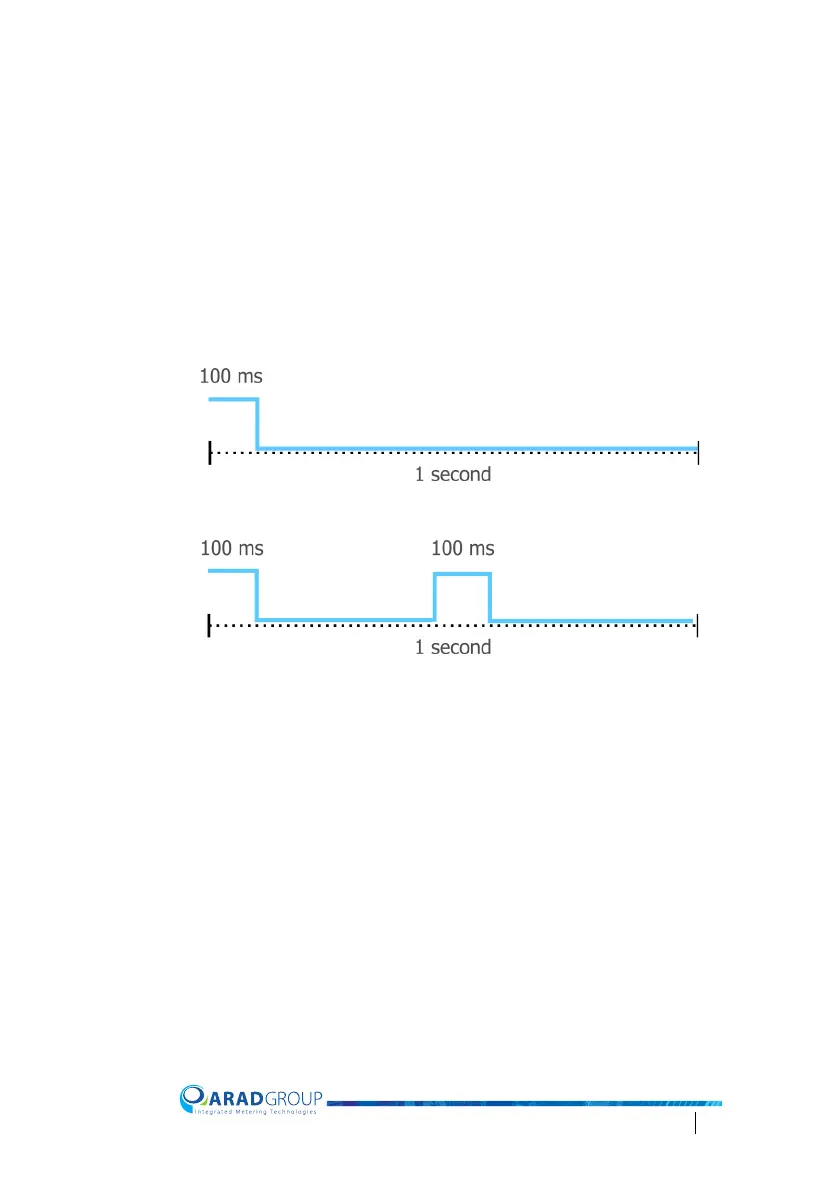

This is how a pulse with a 100 ms width would look like in that context:
If the velocity was twice a
s much (7.2 m
3
/h), two pulses would fit in one second:
Encoder + Pulse
In this mode both flow-rate data and pulse is output data via the AMR/AMI
interface protocol.
See the preceding Encoder and Pulse sections for a description of each of the
parameters to configure.
3600 60
60
--------------------------
