Arad Octave - Encoder Output Configuration

Octave Configuration Guide 25
Encoder
The Encoder output type supports a commonly-used AMR/AMI interface
protocol (UI-1203), which outputs the meter ID and volume. When needed, you
can use this module to also output the count of pulses to the encoder’s counter.

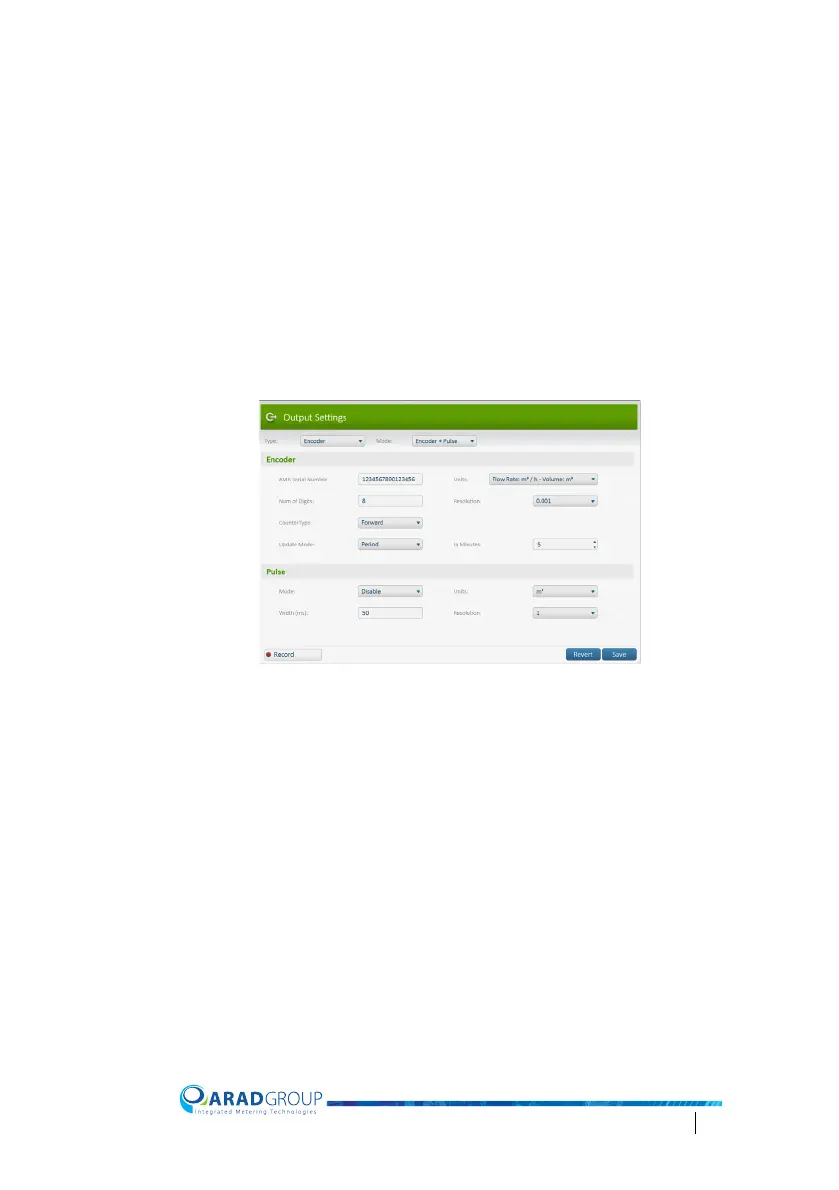

Mode – choose which mode you will be using for Encoder output:
• “Encoder” – output only the standard encoder data (meter ID and
volume)
• “Pulses” – output only the count of pulses
• “Encoder + Pulse”– output both standard encoder data and pulse
count
Encoder
AMR Serial Number – the meter’s auto-detected serial number (Automatic
Meter Reading).
Units – set the output units. The available flow rate-volume unit combinations
are:
• Flow Rate: m
3
/h - Volume: m
3
• Flow Rate: Lt/s - Volume: m
3
• Flow Rate: GPM - Volume: GAL
• Flow Rate: GPM - Volume: Ft
3
• Flow Rate: GPM - Volume: A.F.
• Flow Rate: IGPM - Volume: IGAL
• Flow Rate: GPM - Volume: A.I.
