Ariens 921049 - Auger Gearcase Replacement; Remove Gearcase Assembly; Install Gearcase Assembly

EN – 28

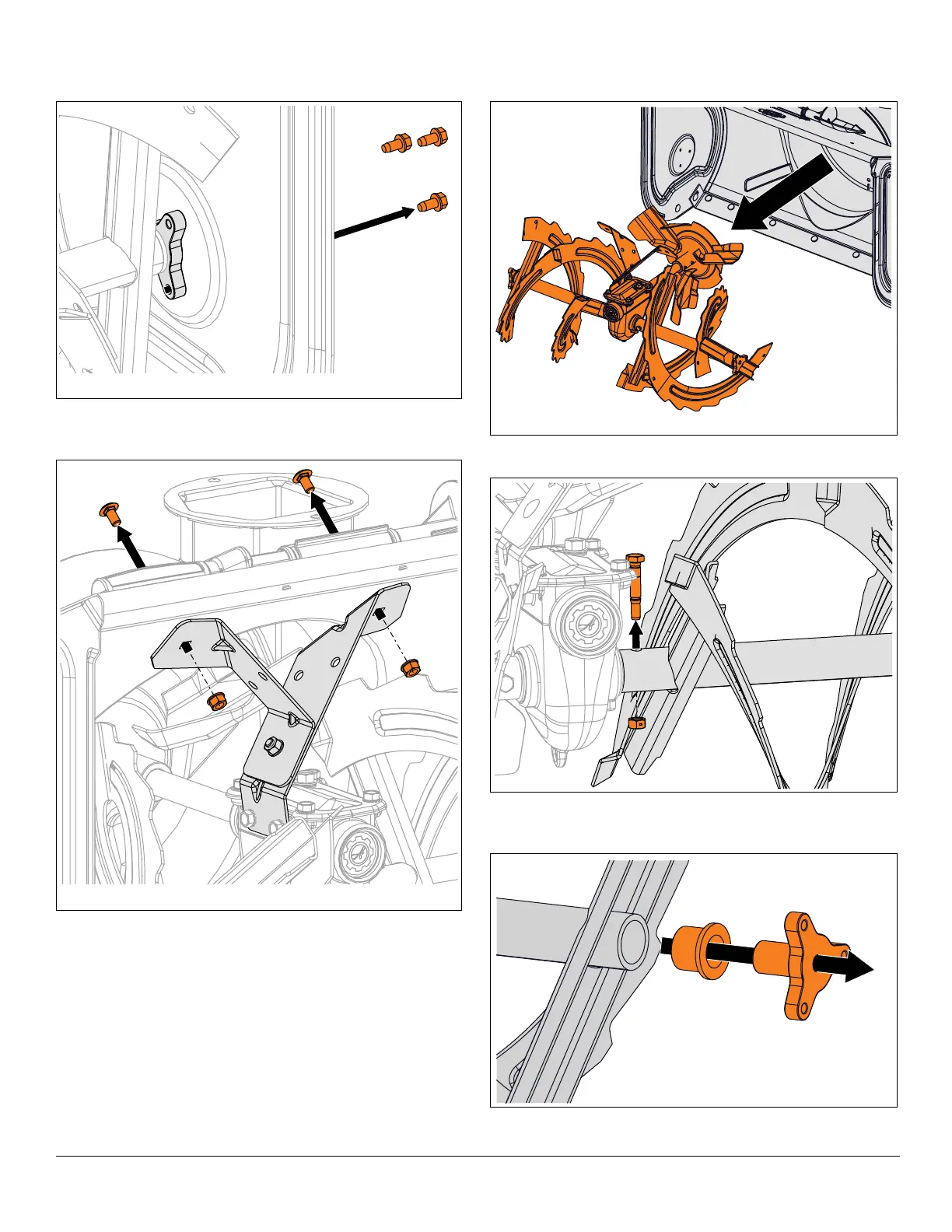

7. Remove hardware retaining support bushings to auger
housing. See Figure 61.
8. Remove hardware retaining gearcase support
brackets to auger housing. See Figure 62.
9. Remove auger assembly from housing. See
Figure 63.
10. Remove shear bolt from auger shaft. See Figure 64.
11. Remove support bushing and flange bushing from
auger end. See Figure 65.
Figure 61
Figure 62
Figure 63
Figure 64
Figure 65
