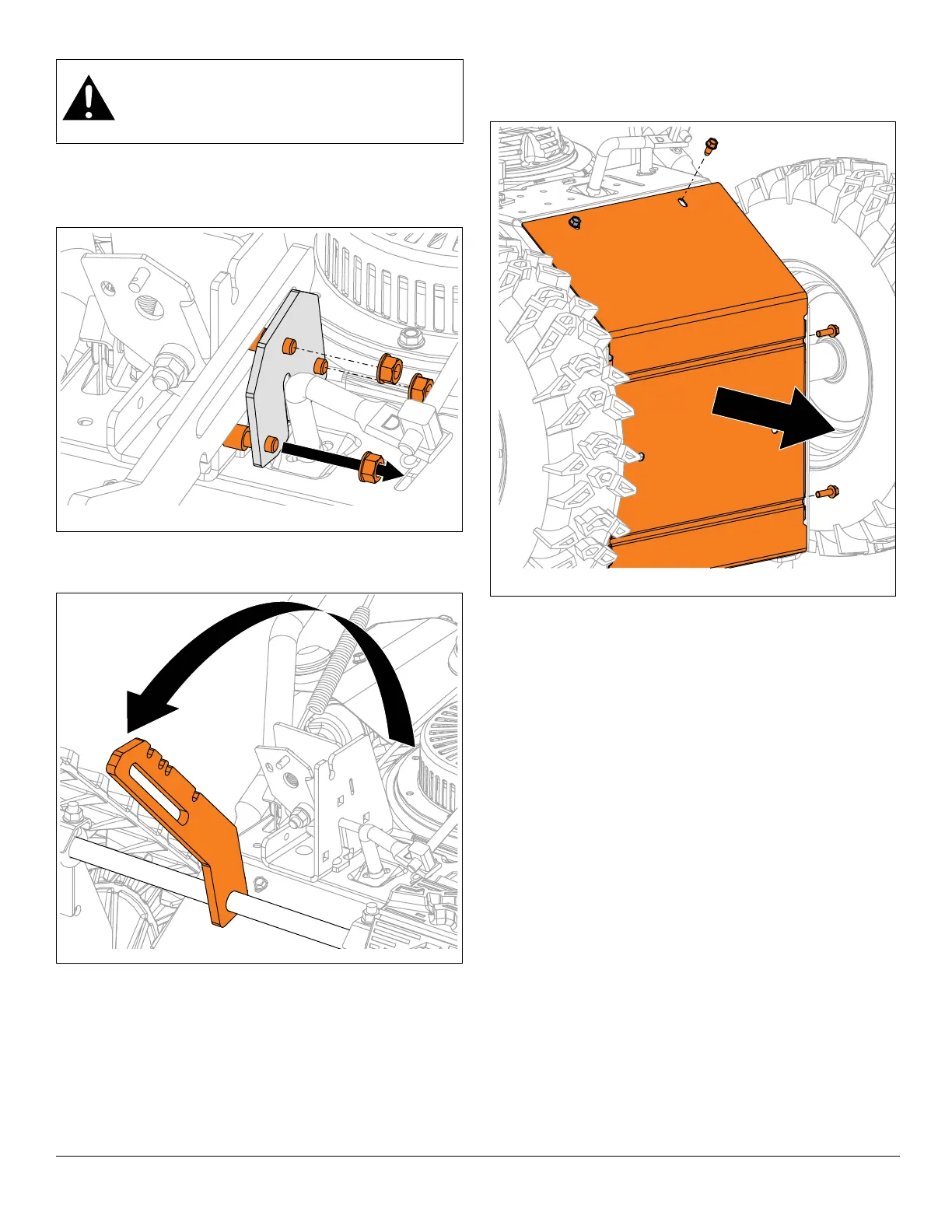

See Figure 20.
8. Remove three top-lock flange nuts retaining height-
adjuster plate. Remove plate and remaining hardware.
9. Move height-adjuster stop to the right and rotate away
from frame. See Figure 21.
All Models
10. Remove hardware retaining bottom cover to frame
and remove cover. See Figure 22.
CAUTION: AVOID INJURY. The track carriage
will rotate freely without the height-adjuster
bracket. Keep fingers and hands away from
pinch points.
