EN – 65
AXLE BEARING REPLACEMENT
(TRACK MODELS)
Models 921326, 921328
Remove Left Bearing
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 7.
4. Remove tracks. See Remove Track on page 63.
5. Remove bottom cover. See Bottom Cover Removal on
page 13.

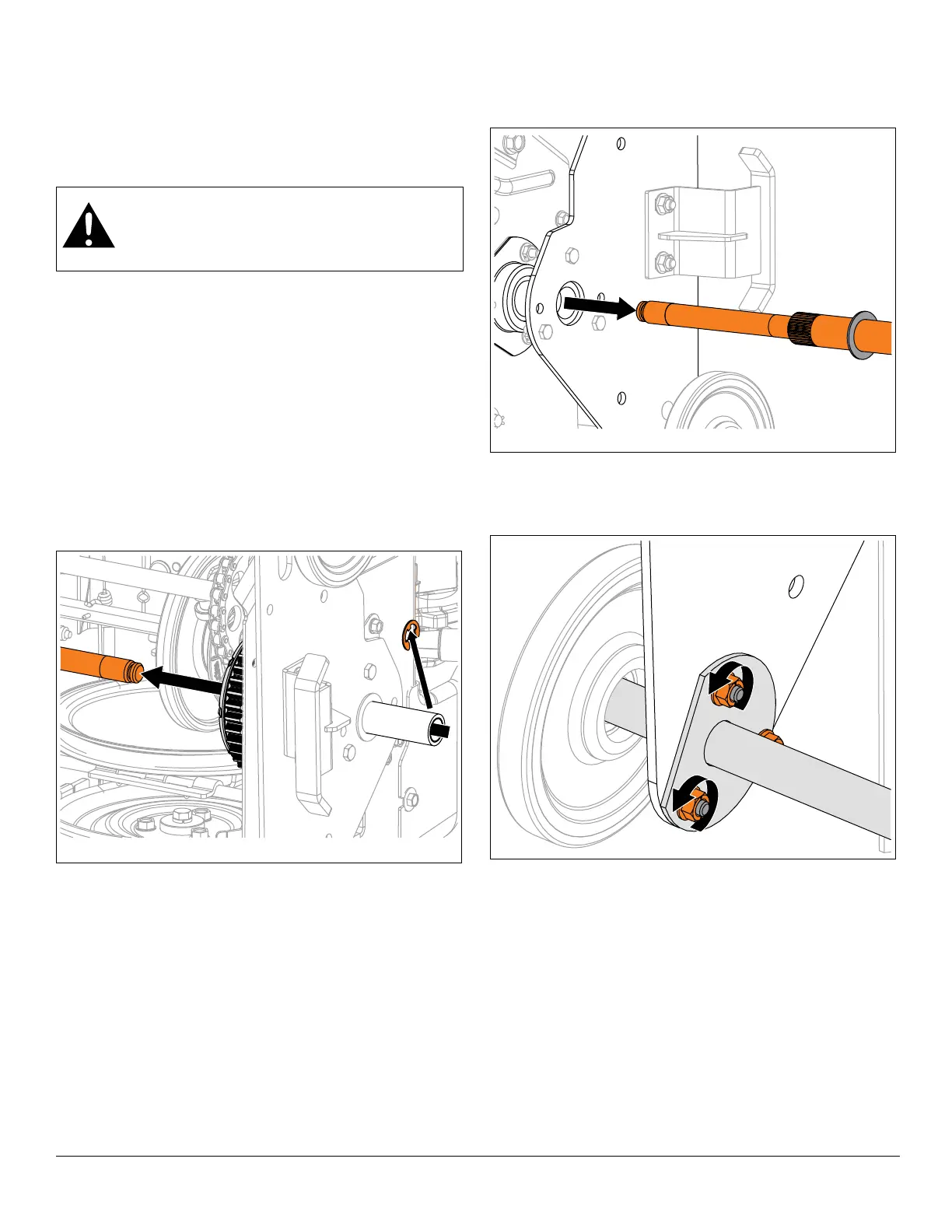

See Figure 165.
6. Remove E-ring from axle end.
7. Hold differential gear in place and remove long axle
from differential.
See Figure 166.
8. Remove axle.
IMPORTANT: Be aware of flat steel washer on axle.
9. Loosen, but DO NOT remove hardware securing axle
mount plates to carriage side plates. See Figure 167.
IMPORTANT: Loosen mount plates on both sides of unit.
WARNING: AVOID INJURY. Before placing unit
in service position, drain fuel from tank and fuel
system. See Draining Fuel System on page 7.
Make sure unit is secure and will not tip.
To Next Page
