Ariens 921049 - Chute Gear Replacement; Remove Chute Rotation Gear

EN – 43
Install Right Axle Bushing
1. Secure bushing to frame exterior with three tapping
screws from inside frame. See Figure 101.
See Figure 102.
2. Reinstall short axle until a small portion of axle is
through frame.
3. Reinstall two flat steel washers onto axle.
4. Align differential gear with pinion gear and short axle.
Reinstall short axle into differential. See Figure 103.
See Figure 104.
5. Reinstall long axle into differential gear.
6. Reinstall E-ring onto axle end.
7. Reinstall bottom cover and secure with two tapping
screws and four hex bolts.
8. Reinstall wheels and secure with snap clips.
9. Return unit to operating position.
10. Reconnect spark plug wire and fill fuel tank.

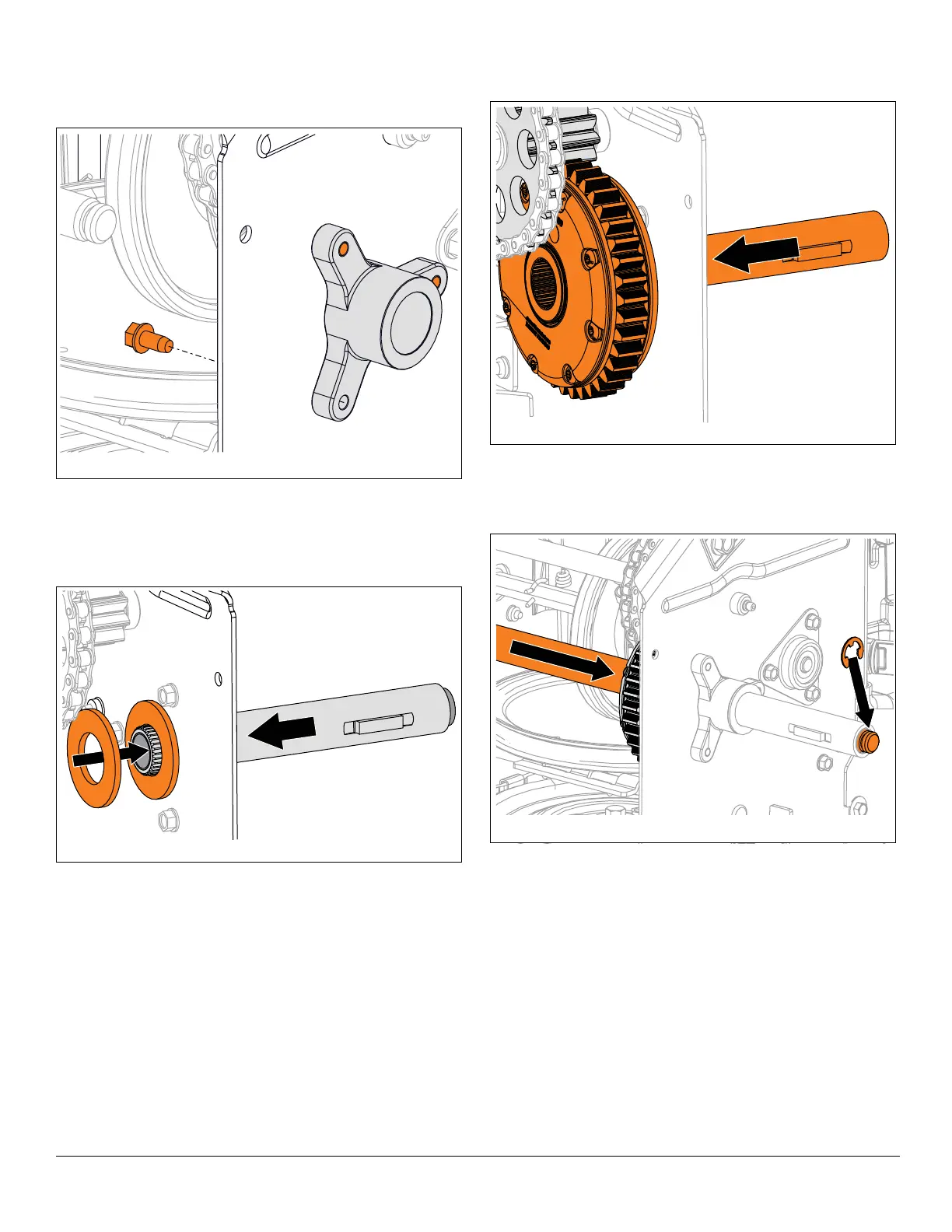

Figure 101
Figure 102
Figure 103
Figure 104
