5. Remove hairpin from hex rod and remove hex rod
from chute gears.
IMPORTANT: Support discharge chute so it remains
upright.
6. Remove hardware retaining chute rotation gear to
pedestal plate and remove gear. See Figure 121.
Install Chute Rotation Gear
Models 921045, 921046, 921047, 921048, 921049,
921323, 921324, 921325
1. Position discharge chute facing forward.
See Figure 122.
2. Position chute rotation gear on chute mount with flat
edge square to chute mount bracket.
3. Reposition flat steel washer and friction washer
between chute mount bracket and pedestal plate.
4. Insert round head square neck bolt through chute gear
and pedestal plate.
5. Reinstall friction washer, friction plate and
compression spring and secure with top locking flange
nut.
IMPORTANT: Ensure friction plate aligns with chute mount
bracket.

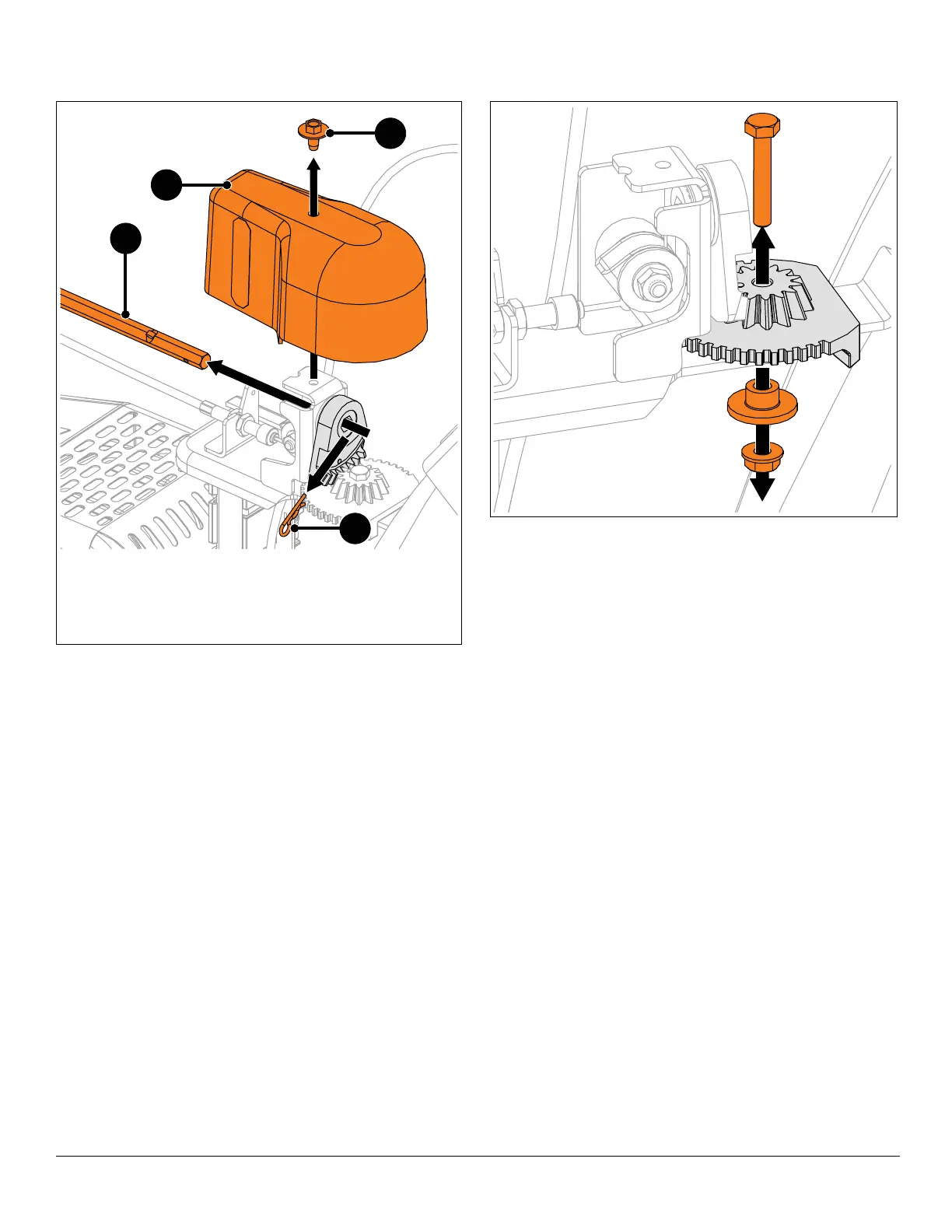

Figure 120
1. Tapping Screw
2. Chute Gear Cover
3. Hairpin
4. Hex Rod
