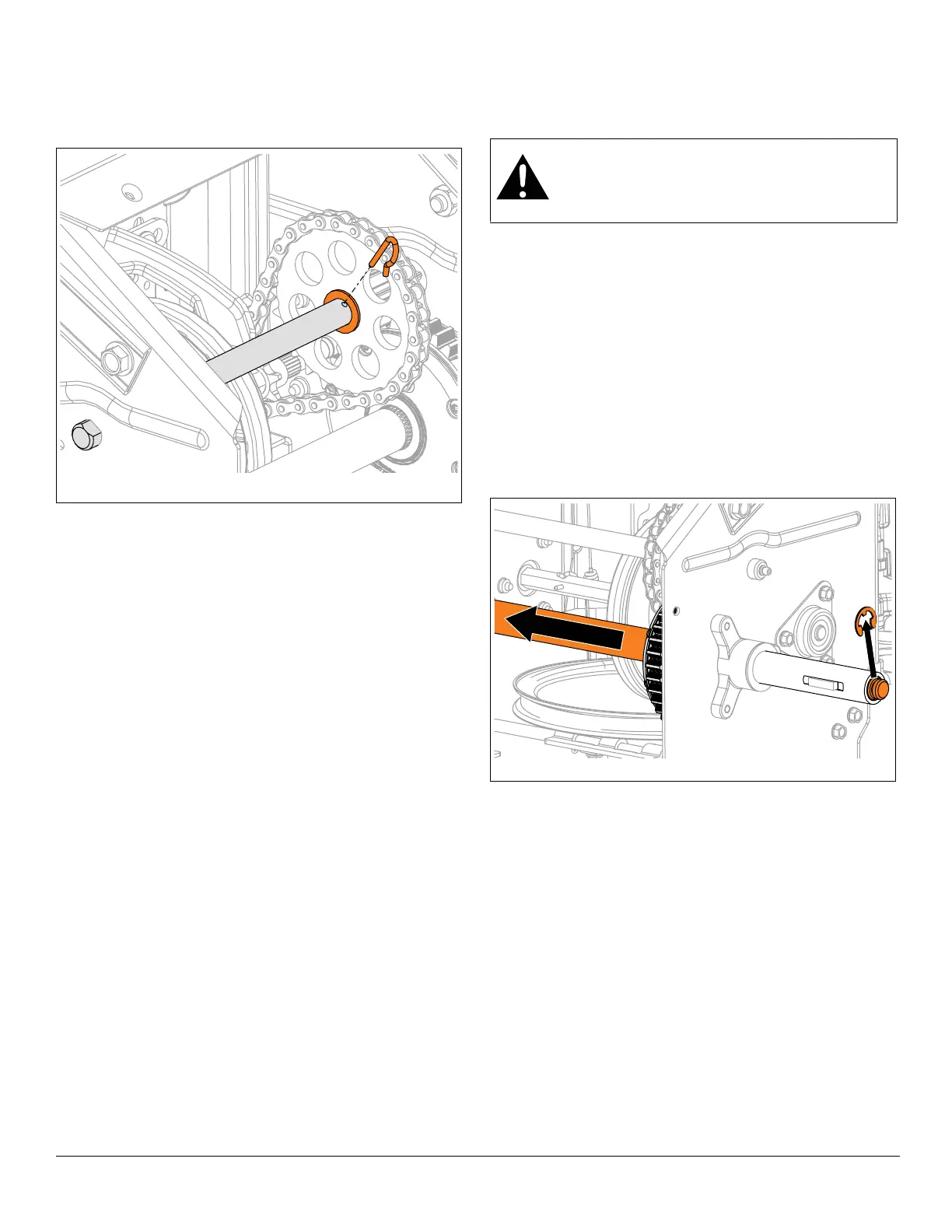

See Figure 108.
6. Insert pinion shaft end into left side of frame.
7. Position flat steel washer against pinion gear and
reinstall spring clip.
8. Reinstall bottom cover and secure with two tapping
screws and four hex bolts.
9. Reinstall wheel and secure with snap clip.
10. Return unit to operating position.
11. Reconnect spark plug wire and fill fuel tank.
DIFFERENTIAL GEAR REPLACEMENT
Remove Differential Gear
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position and remove bottom
cover. See Service Position on page 7 and Bottom
Cover Removal on page 13.
4. Remove snap clips from axle ends and remove
wheels.
See Figure 109.
5. Remove E-ring from axle end.
6. Hold differential gear in place and remove long axle
from differential.
WARNING: AVOID INJURY. Before placing unit
in service position, drain fuel from tank and fuel
system. See Draining Fuel System on page 7.
Make sure unit is secure and will not tip.
