Ariens 921049 - Remove Actuation Gear

EN – 46

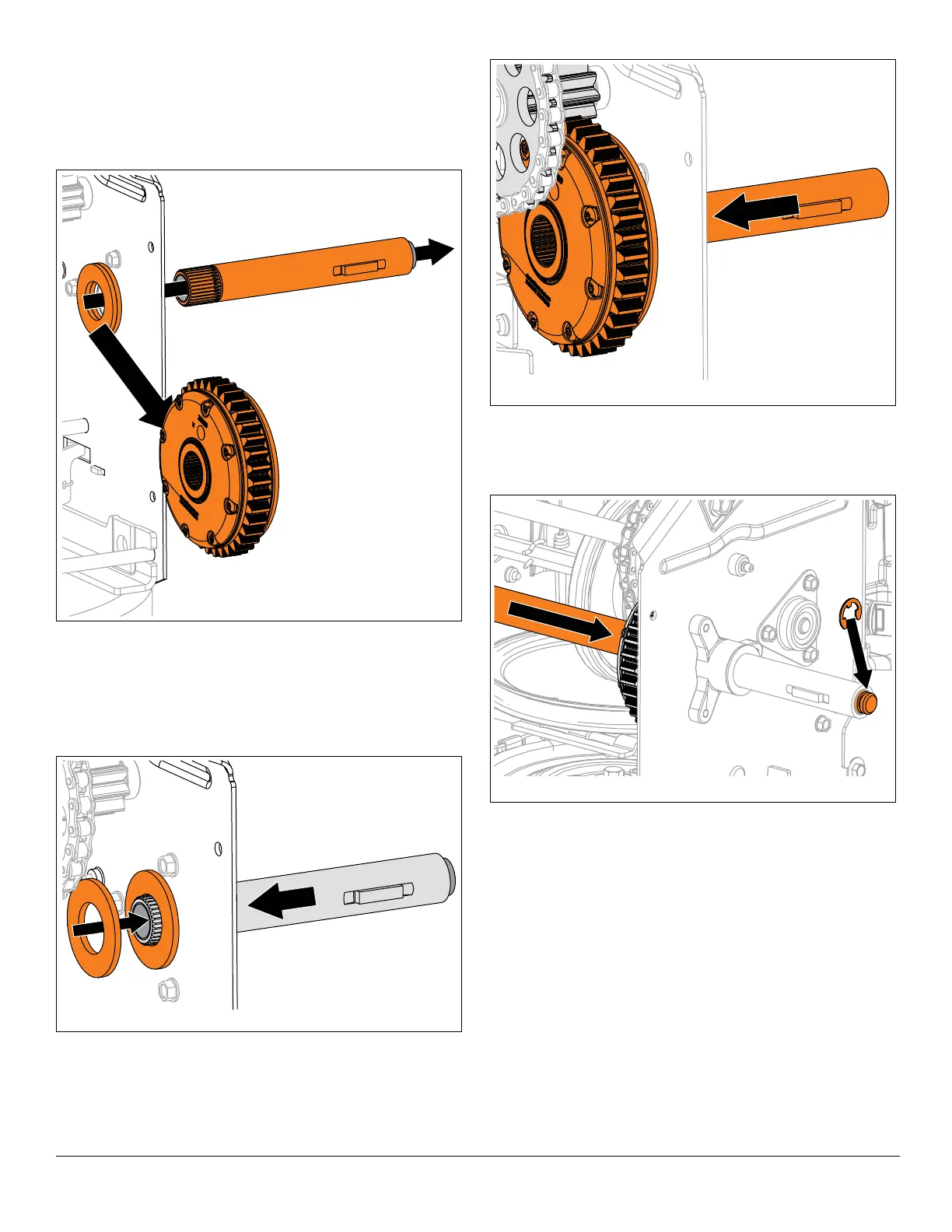

See Figure 110.
IMPORTANT: Two flat steel washers will fall when short
axle is removed.
7. Hold differential gear in place and remove short axle.
8. Remove differential.
Install Differential Gear
See Figure 111.
1. Reinstall short axle until a small portion of axle is
through frame.
2. Reinstall two flat steel washers onto axle.
3. Align differential gear with pinion gear and short axle.
Reinstall short axle into differential. See Figure 112.
See Figure 113.
4. Reinstall long axle into differential gear.
5. Reinstall E-ring onto axle end.
6. Reinstall bottom cover and secure with two tapping
screws and four hex bolts.
7. Reinstall wheels onto axle and secure with snap clips.
8. Return unit to operating position.
9. Reconnect spark plug wire and fill fuel tank.
Figure 110
Figure 111
Figure 112
Figure 113
