EN – 63

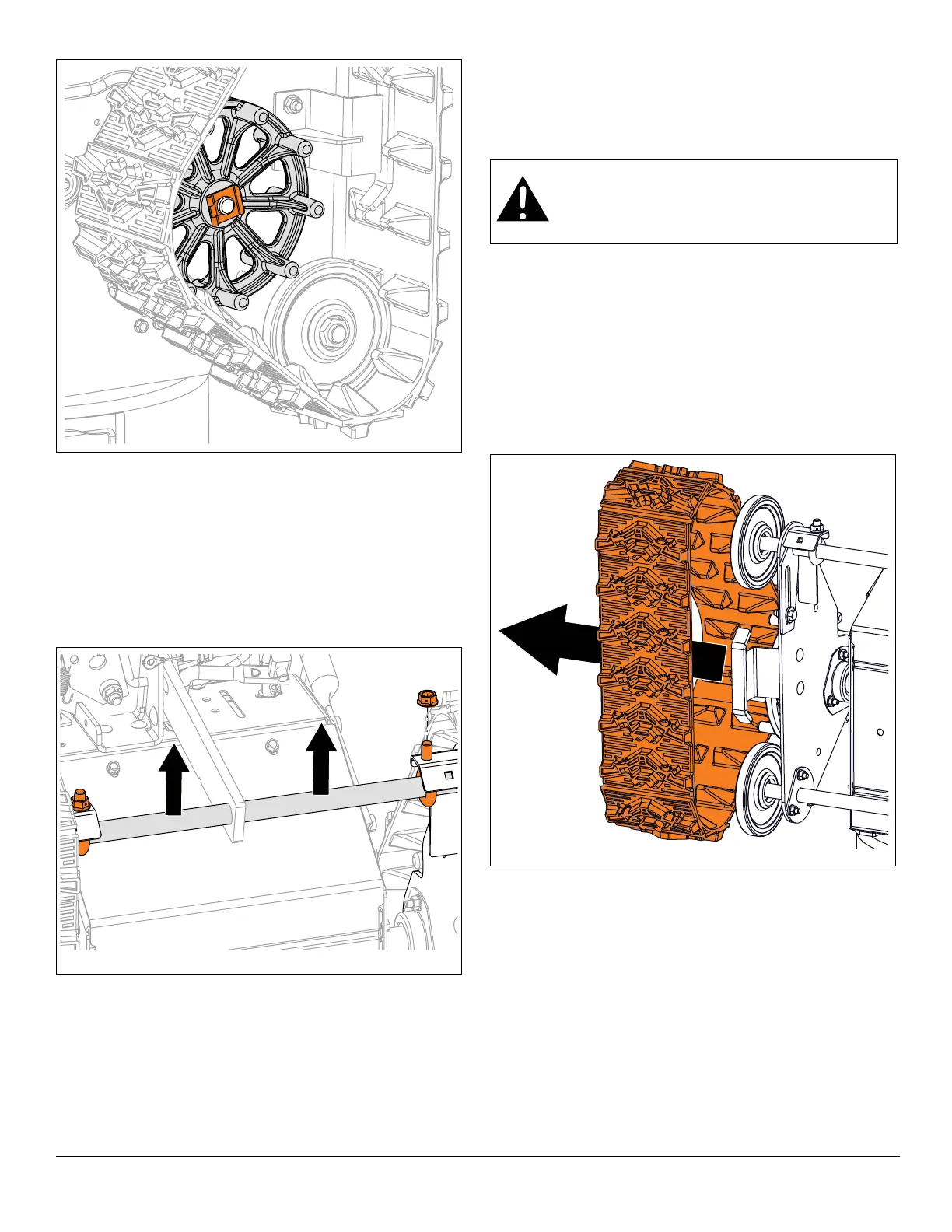

Install Track Drive Wheel
1. Install track drive wheel onto axle.
2. Align drive wheel with track center and secure with
snap ring.
See Figure 161.
3. With assistance from an adult helper, pull rear track
axle up so eye bolts insert through tension brackets.
Secure with center locking flange nuts and tighten.
4. Return unit to operating position.
5. Reconnect spark plug wire and fill fuel tank.
6. Adjust track tension. Refer to Operator’s Manual for
adjustment procedure.
IMPORTANT: Check all adjustments after first use.
TRACK REPLACEMENT
Models 921326, 921328
Remove Track
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 7.
4. Remove track drive wheel. See Remove Track Drive
Wheel on page 62.
5. Remove track from carriage assembly. See
Figure 162.
WARNING: AVOID INJURY. Before placing unit
in service position, drain fuel from tank and fuel
system. See Draining Fuel System on page 7.
Make sure unit is secure and will not tip.
