EN – 12
See Figure 16.
9. Reinstall belt finger and secure with two flat steel
washers, two locking washers and two hex bolts.
10. Check belt finger clearance:
• Engage attachment clutch lever and make sure belt
finger located opposite belt idler is less than 3.2 mm
(1/8") from belt, but not touching the belt.
• If needed, adjust clearance by loosening hex bolts,
repositioning belt finger, and tightening bolts.
11. Reinstall belt cover and secure left side with tapping
screw. Position right side under tapping screw and
tighten.
12. Models 921326, 921328: Advance to step 15.
Models 921045, 921046, 921047, 921048, 921049,
921323, 921324, 921325
12. Reinstall short end of chute rotation rod into dash
panel until opposite end clears chute gears.
13. Insert chute rotation rod into chute gear and secure
with spring clip.
14. Advance to step 24.
Models 921326, 921328
15. Insert hex rod end without ears into dash panel until
opposite end clears chute gears.
16. Position discharge chute facing forward.
17. Position chute rotation lever upright and insert hex rod
through chute gear until it stops.
18. Reinstall hairpin into hex rod.
19. Insert chute lock cable through hole in dash panel and
insert cable anchor into chute control assembly.
20. For service to models with a Generation 3 chute
control design, continue to step 21. For service to
models with a Generation 2 chute control design,
advance to step 23.
Generation 3 Chute Control Design
See Figure 17.
21. Remove hairpin from clevis pin and reinstall cable
eyelet onto clevis pin.
22. Insert clevis pin through chute control bracket and
secure with hairpin.

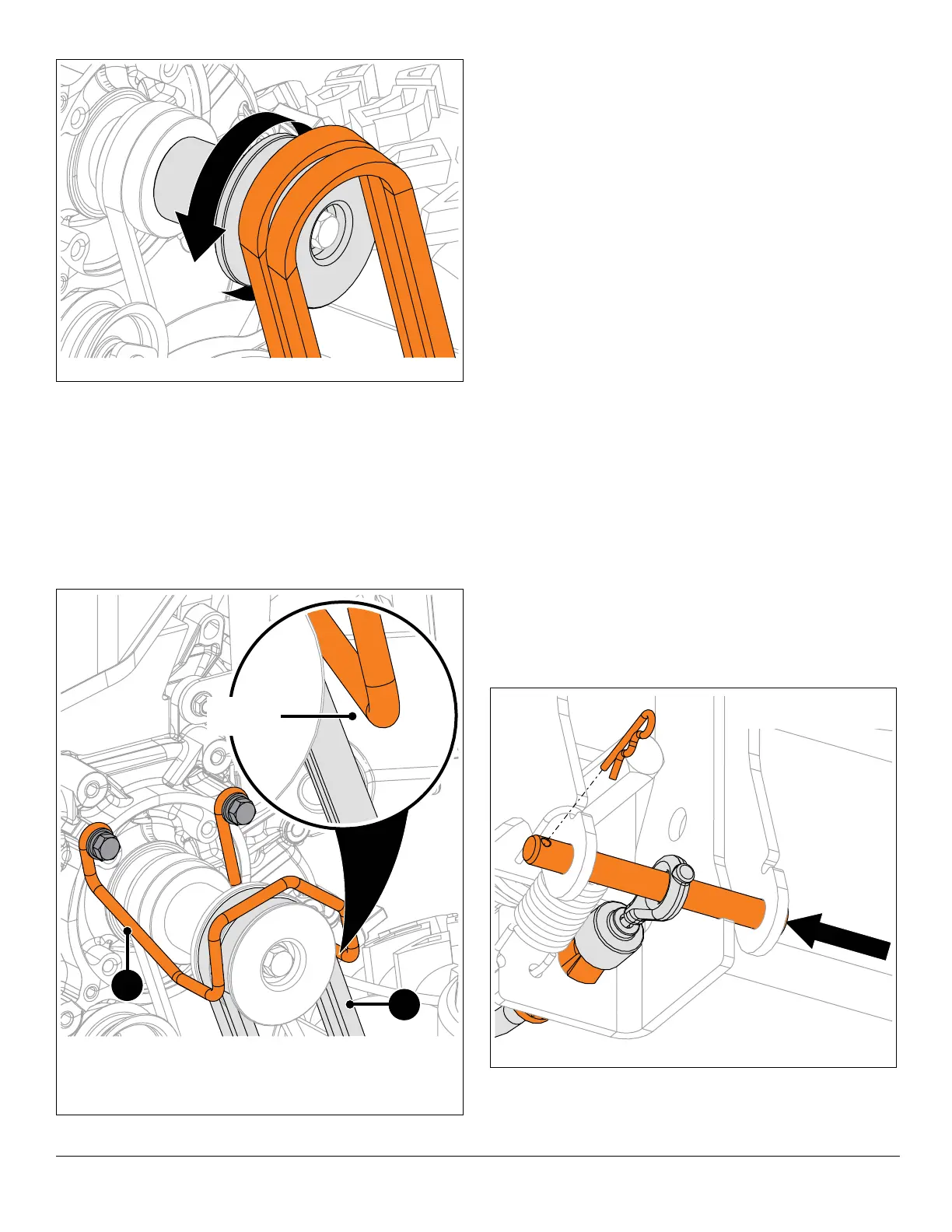

Figure 16
1. Belt Finger
2. Attachment Drive Belts
Measure
Here
1
2
Figure 17
Generation 3 Chute
Control Design
To Next Page
