9. Remove cable.
Install Traction Drive Clutch Cable
1. Rotate unit to service position and remove bottom
cover. See Service Position on page 7 and Bottom
Cover Removal on page 13.

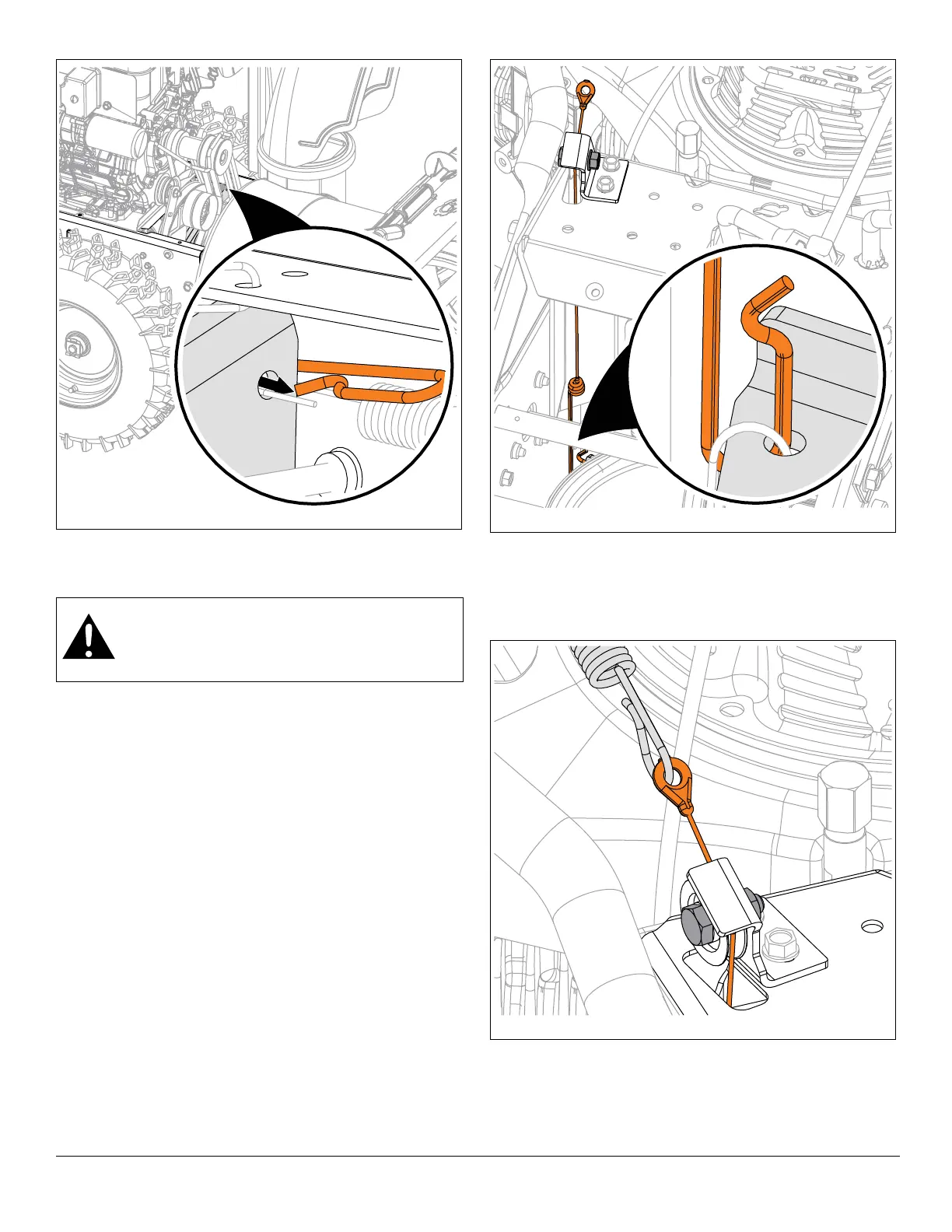

See Figure 89.
2. Route cable end with spring hook through hole in back
cover.
3. Install cable end onto swing gate.
See Figure 90.
4. Align cable with cable pulley and tighten shoulder bolt.
5. Reconnect lower traction clutch cable to upper traction
clutch cable.
6. Reinstall bottom cover and secure with two tapping
screws and four hex bolts.
WARNING: AVOID INJURY. Before placing unit
in service position, drain fuel from tank and fuel
system. See Draining Fuel System on page 7.
Make sure unit is secure and will not tip.
