10. Remove sleeve bushing between bearings on frame
and carriage side plate. See Figure 168.
11. Remove hardware retaining bearing(s) and remove
bearing(s).
IMPORTANT: Bearing plate is not a wear item and does
not need replacement unless damaged.
Install Left Bearing
IMPORTANT: Bearing plates are ONLY installed with
bearing on frame. Bearing plates are NOT installed with
bearing on side plate.
1. Secure each bearing to frame and / or side plate with
three hex bolts and three locking nuts.
2. Reinstall sleeve bushing between bearings on side
plate and frame.
3. Reinstall stepped-down end of long axle through side
plate, frame and into differential gear. See Figure 170.
4. Reinstall E-ring onto axle end. See Figure 171.
5. Tighten hardware securing axle mount plates to track
carriage.
6. Secure bottom cover to frame with six hex bolts.
7. Reinstall track drive wheels. See Install Track Drive
Wheel on page 63.
8. Reinstall tracks. See Install Track on page 64.
9. Return unit to operating position.
10. Reconnect spark plug wire and fill fuel tank.
11. Adjust track tension. Refer to Operator’s Manual for
adjustment procedure.
IMPORTANT: Check all adjustments after first use.

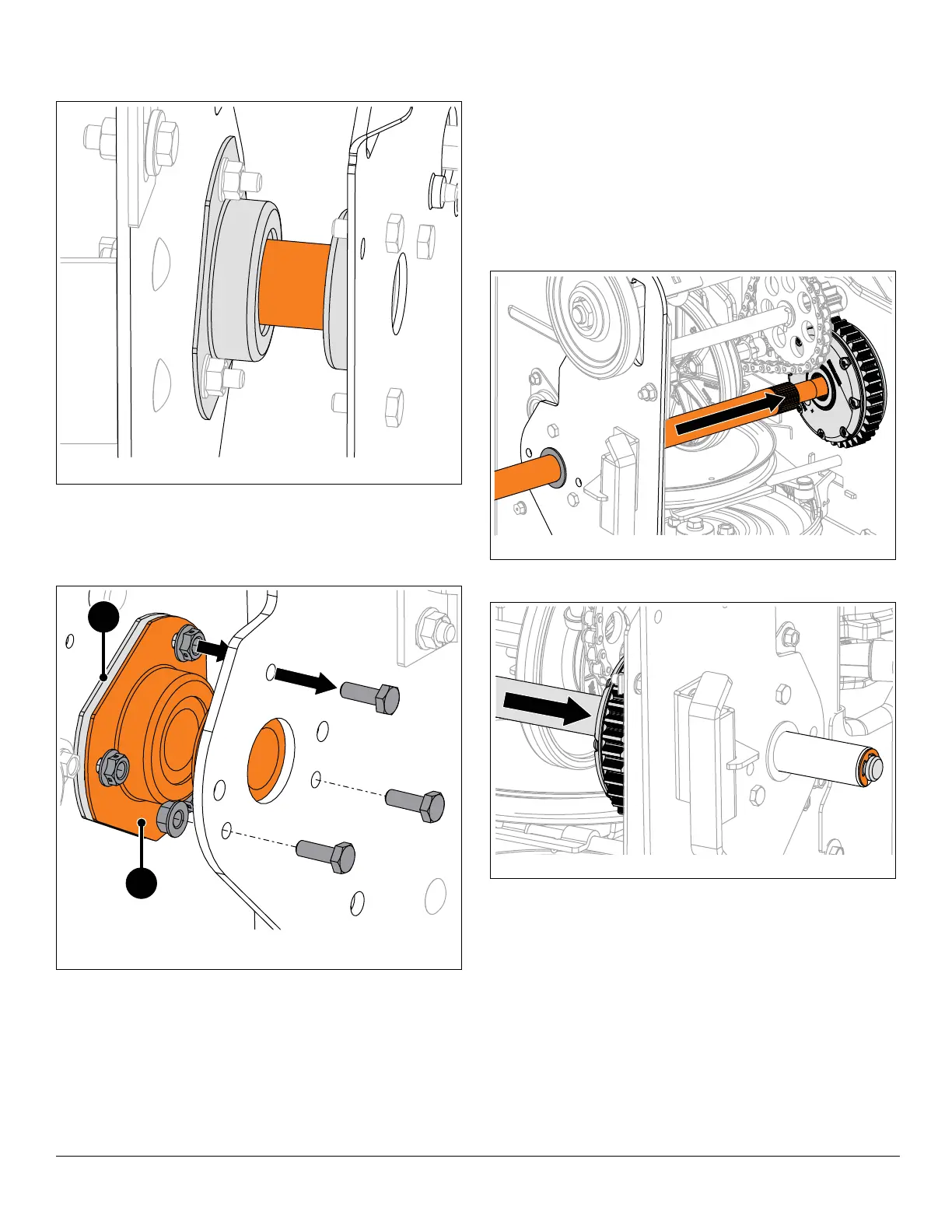

Figure 169
1. Bearing
2. Bearing Plate
1
2
