EN – 48
Remove Chute Rotation Gear
Models 921045, 921046, 921047, 921048, 921049,
921323, 921324, 921325
IMPORTANT: Save all hardware for reinstallation
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
See Figure 117.
3. Remove hardware retaining chute gear cover and
remove cover.
4. Remove spring clip from chute rotation rod and
remove rod from chute gears.
5. Remove hardware securing pinion gear bracket to
pedestal plate and remove bracket. See Figure 118.
IMPORTANT: Support discharge chute so it remains
upright.
6. Remove hardware retaining chute rotation gear to
pedestal plate and remove gear. See Figure 119.
Remove Chute Rotation Gear
Models 921326, 921328
IMPORTANT: Save all hardware for reinstallation
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Position discharge chute facing forward.
See Figure 120.
4. Remove hardware retaining chute gear cover and
remove cover.

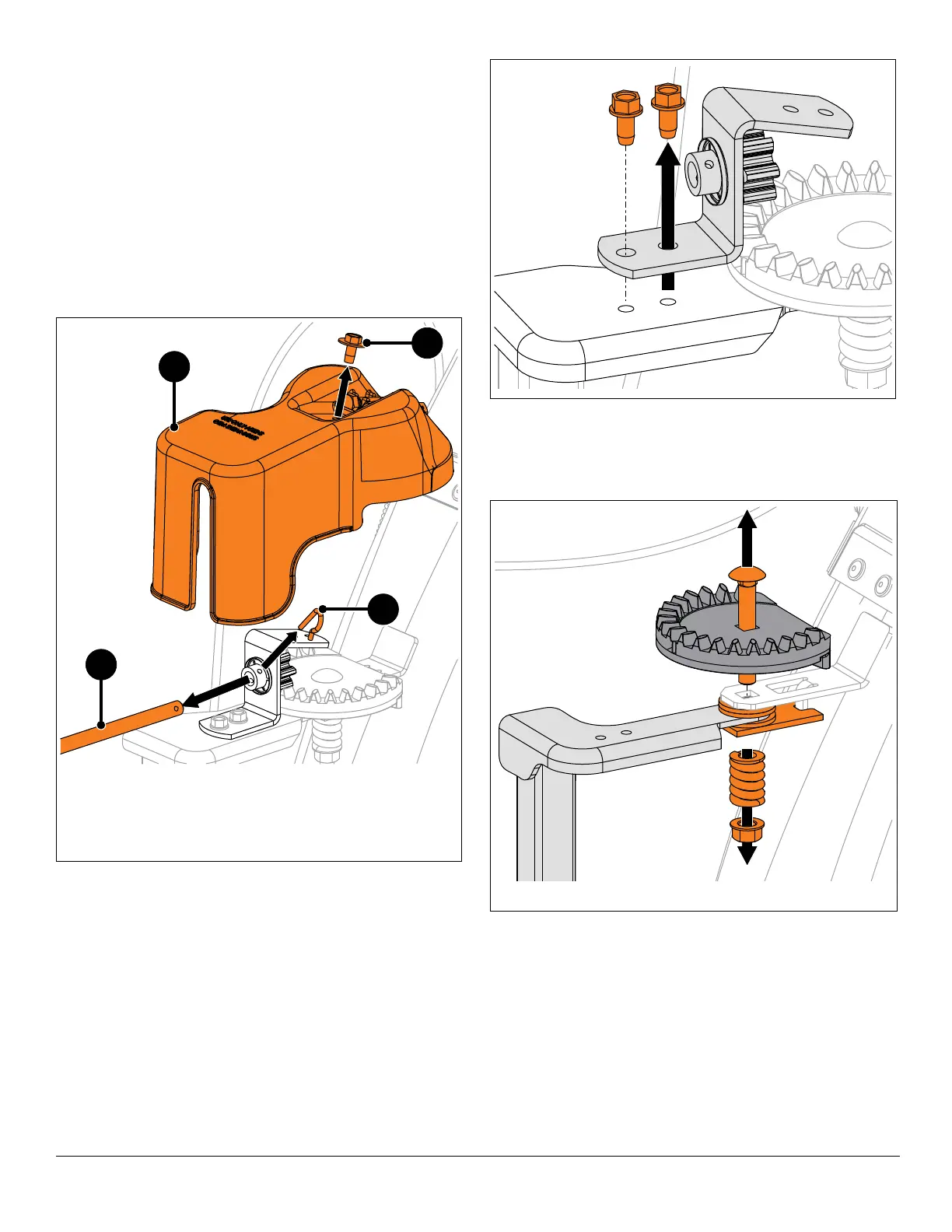

Figure 117
1. Tapping Screw
2. Chute Gear Cover
3. Spring Clip
4. Chute Rotation Rod
1
2
4
3
Figure 118
Figure 119
