EN – 16
All Models
9. Return unit to operating position.
ATTACHMENT DRIVE BELT
REPLACEMENT
Remove Attachment Drive Belts
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Remove auger housing. See Separate Housing From
Frame on page 7.

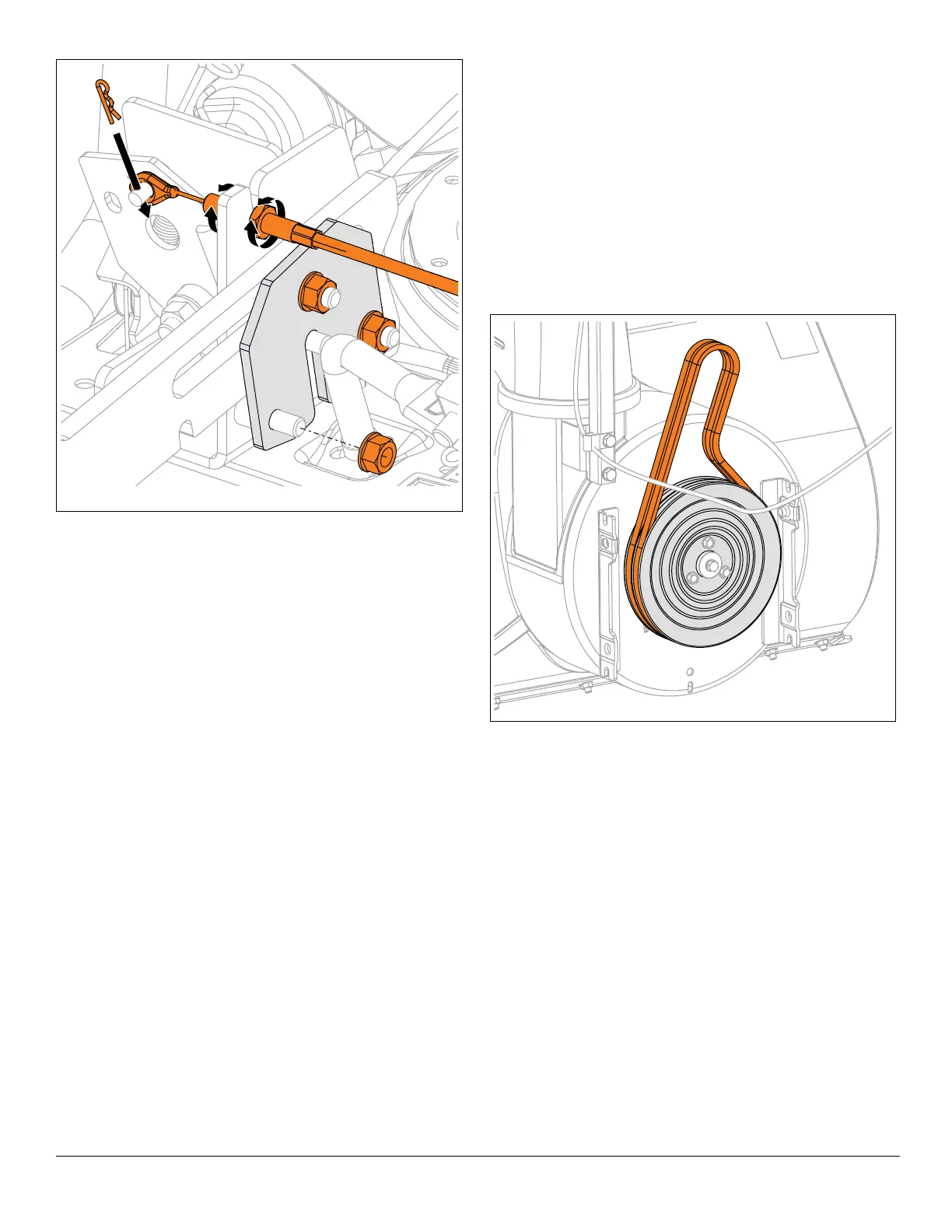

4. Remove attachment drive belts from attachment drive
pulley. See Figure 26.
Install Attachment Drive Belts
1. Install belts onto attachment drive pulley.
2. Reinstall auger housing to frame. See Reinstall Auger
Housing on page 11.
