GEARCASE REBUILD
Disassemble Gearcase
IMPORTANT: Save all parts for reassembly, unless
otherwise specified.
1. Remove gearcase. See Remove Gearcase Assembly
on page 31.
2. Remove any rust, if present, from auger and impeller
shafts with sandpaper. Wipe clean with oil.
3. Remove drain plug and seal washer from gearcase.
See Figure 138.
See Figure 139.
4. Remove hardware retaining gearcase cover and
remove cover.
5. Remove gasket and drain gearcase.
6. Remove bushing retainer from gearcase. See
Figure 140.

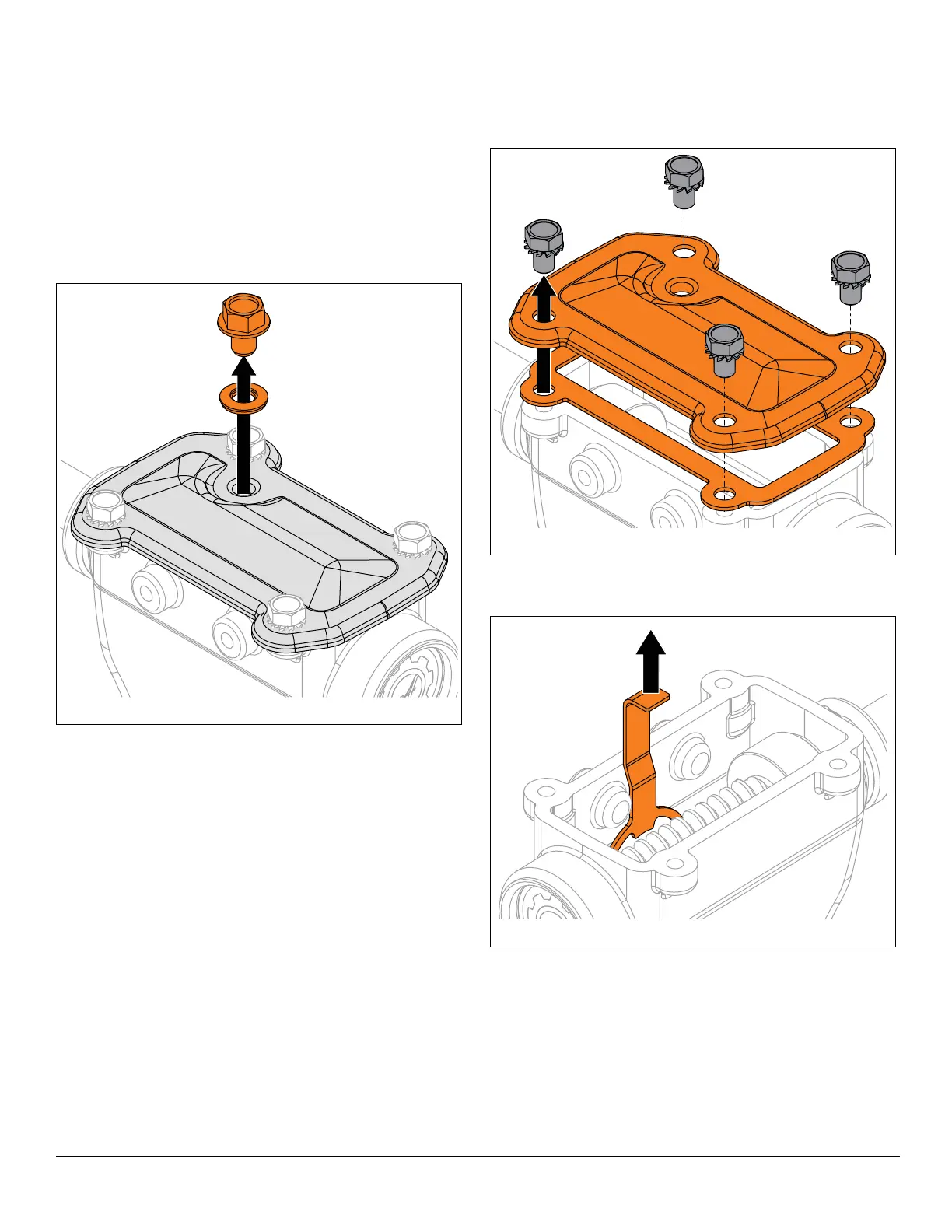

Figure 138
Figure 139
Figure 140
