EN – 44
FLANGE BUSHING REPLACEMENT
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position and remove bottom
cover. See Service Position on page 7 and Bottom
Cover Removal on page 13.
4. Remove snap clip from right axle end and remove
right wheel.

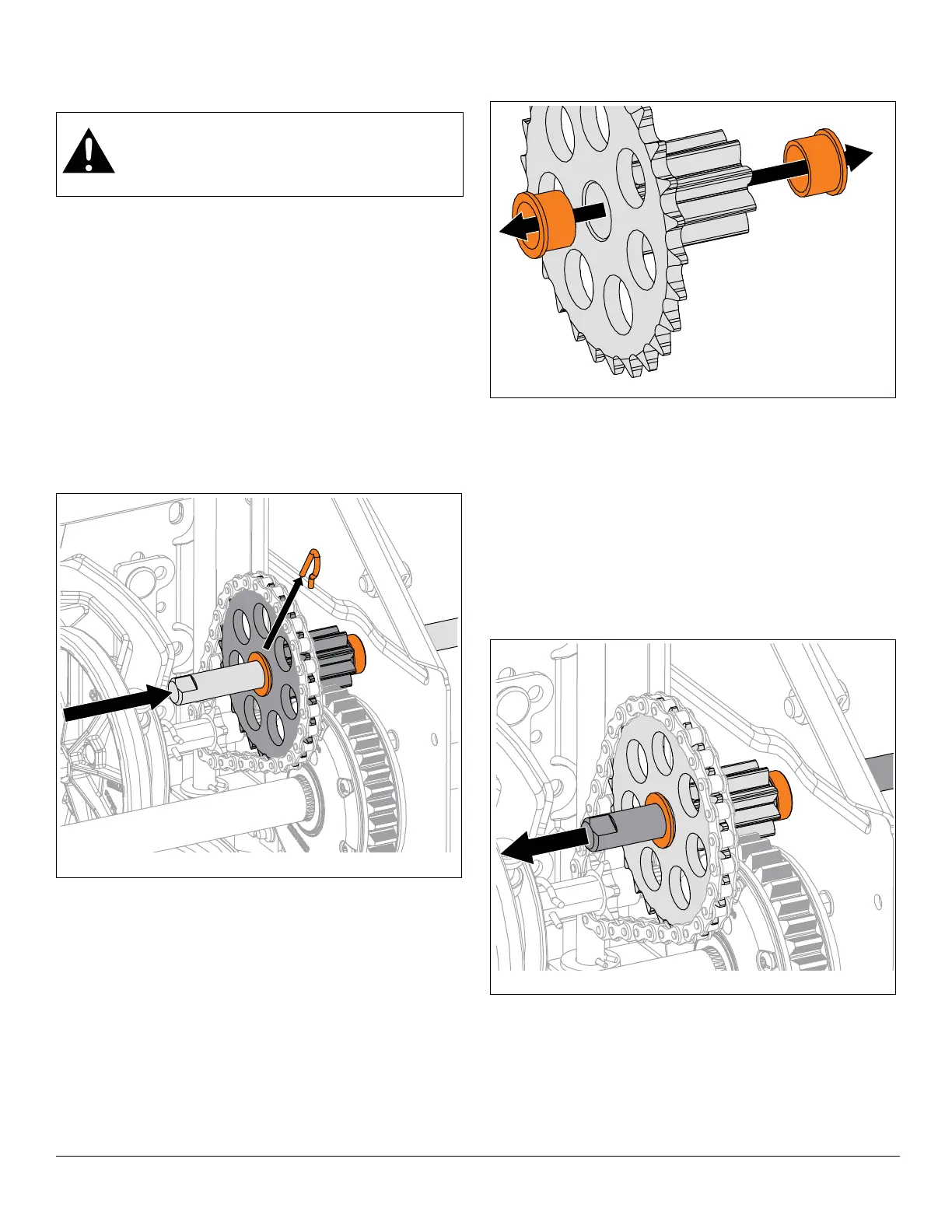

See Figure 105.
5. Remove spring clip from pinion shaft.
6. Remove pinion shaft.
IMPORTANT: Flat steel washer and sleeve bushing will fall
when pinion shaft is removed.
7. Remove pinion gear.
8. Remove flange bushings from pinion gear. See
Figure 106.
Install Flange Bushings
1. Install flange bushings into pinion gear.
See Figure 107.
2. Reinstall pinion gear into chain and align with
differential gear.
3. Position sleeve bushing between pinion gear and
frame.
4. Reinstall pinion shaft through frame, sleeve bushing
and pinion gear.
5. Reinstall one flat steel washer onto pinion shaft.
WARNING: AVOID INJURY. Before placing unit
in service position, drain fuel from tank and fuel
system. See Draining Fuel System on page 7.
Make sure unit is secure and will not tip.
