EN – 68
See Figure 175.
11. Remove hardware retaining bearing(s) and remove
bearing(s).
IMPORTANT: Bearing plate is not a wear item and does
not need replacement unless damaged.
Install Right Bearing
IMPORTANT: Bearing plates are ONLY installed with
bearing on frame. Bearing plates are NOT installed with
bearing on side plate.
1. Secure each bearing to frame and / or side plate with
three hex bolts and three locking nuts.
2. Reinstall sleeve bushing between bearings on side
plate and frame.
See Figure 176.
3. Reinstall short axle until a small portion of axle is
through frame.
4. Reinstall two flat steel washers onto short axle.
5. Align differential gear with pinion gear and short axle
and reinstall axle into differential.
6. Reinstall long axle into differential gear. See
Figure 177.
7. Reinstall E-ring onto axle end.
8. Tighten hardware securing axle mount plates to track
carriage.
9. Secure bottom cover to frame with six hex bolts.
10. Reinstall track drive wheels. See Install Track Drive
Wheel on page 63.
11. Reinstall tracks. See Install Track on page 64.
12. Return unit to operating position.
13. Reconnect spark plug wire and fill fuel tank.
14. Adjust track tension. Refer to Operator’s Manual for
adjustment procedure.
IMPORTANT: Check all adjustments after first use.

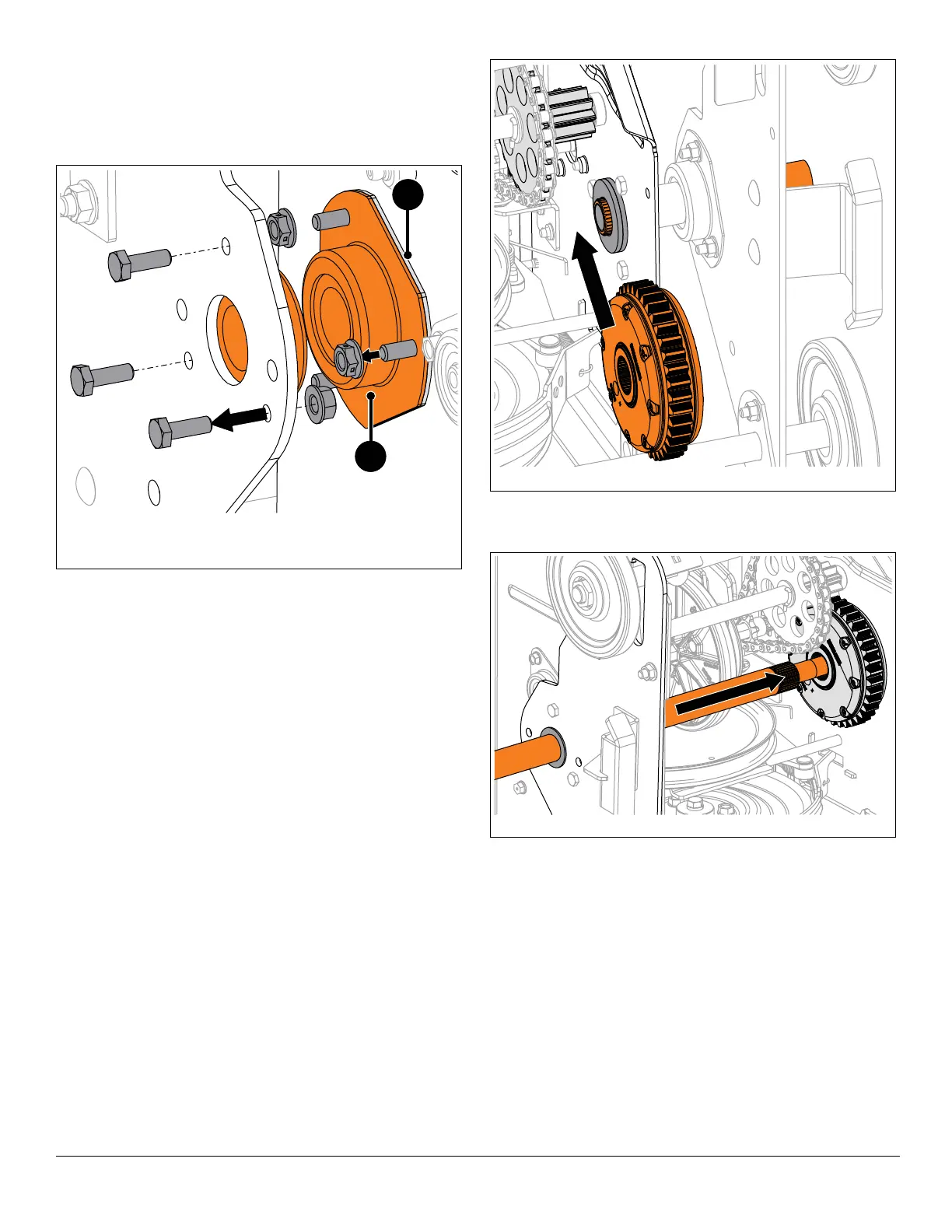

Figure 175
1. Bearing
2. Bearing Plate
2
1
To Next Page
