7. Reinstall upper traction clutch cable to traction clutch
lever. Secure with one flat steel washer and hairpin.
See Figure 86.
8. Return unit to operating position.
9. Adjust traction drive clutch. Refer to Operator’s
Manual for adjustment procedure.
10. Reconnect spark plug wire and fill fuel tank.
IMPORTANT: Check all adjustments after first use.
DUAL-HANDLE INTERLOCK CAM
REPLACEMENT
Remove Interlock Cam
IMPORTANT: Save all hardware for reinstallation.
See Figure 91.
1. Remove spring from interlock bracket.
2. Remove two spring clips securing interlock cams to
camshafts.

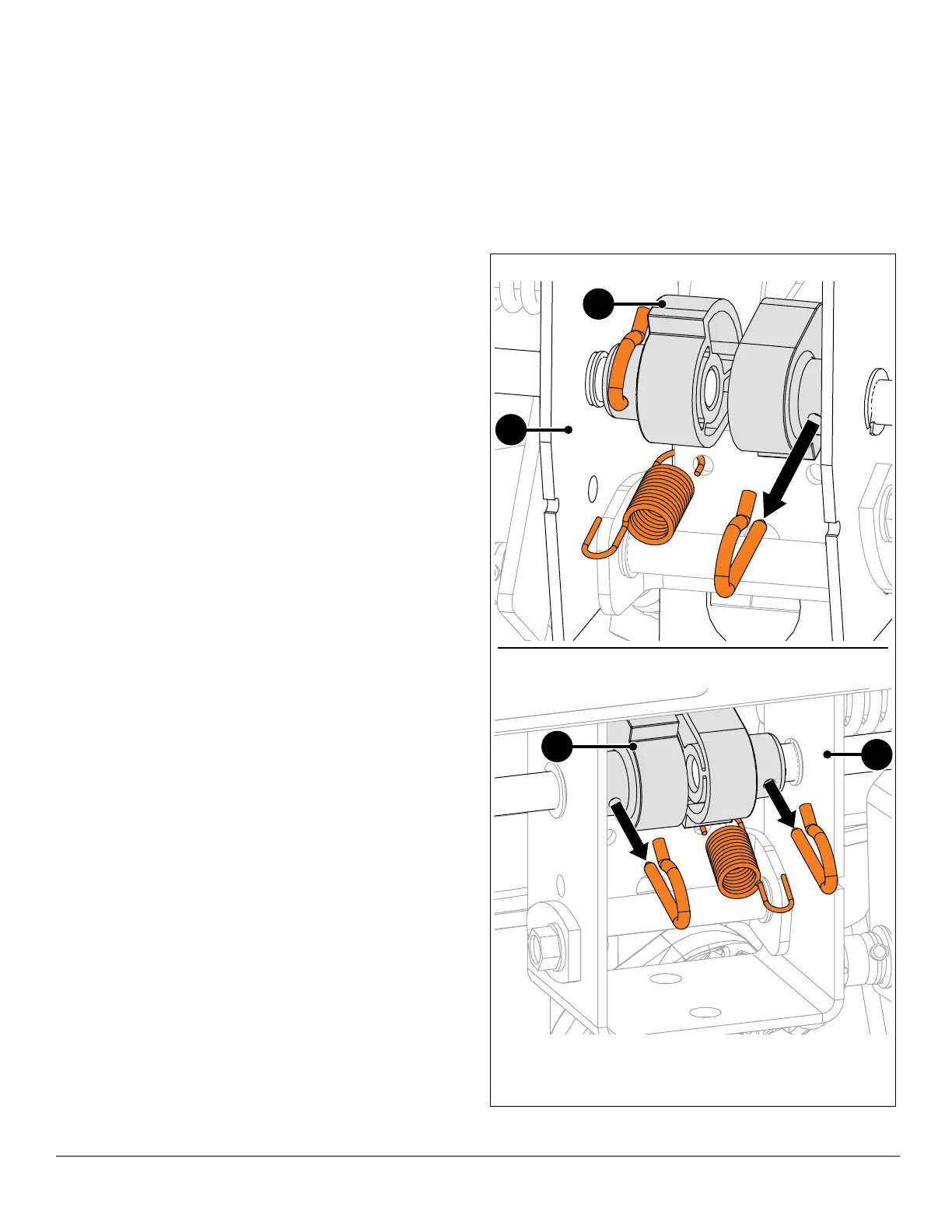

Figure 91
1. Interlock Cam
2. Interlock Bracket
2
1
1
2
Models 921047, 921049, 921323,
921324, 921325, 921326, 921328
Models 921045, 921046, 921048
