6. Secure support brackets to auger housing with original
round head square neck bolts and top locking flange

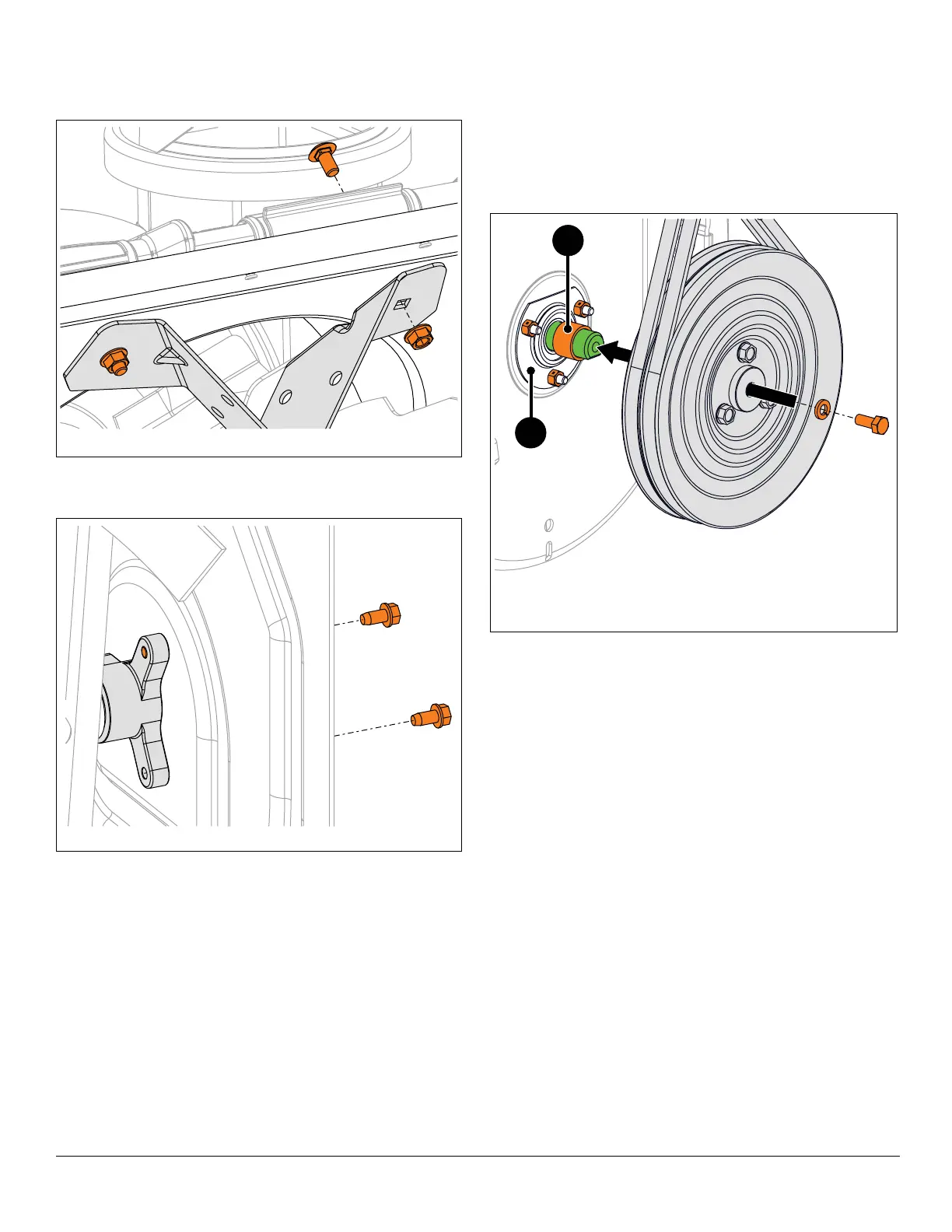

nuts. See Figure 70.
7. Secure support bushings to auger housing with six
tapping screws. See Figure 71.
See Figure 72.
8. Tighten three hex nuts retaining bearing plate.
9. Apply a thin layer of anti-seize to impeller shaft end.
10. Reinstall spacer bushing onto impeller shaft.
11. Secure attachment drive pulley to impeller shaft with
locking washer and hex bolt. Torque to 7.9 N•m – 16.5
N•m (5.8 lb-ft – 12.2 lb-ft).
12. Reinstall housing to frame. See Reinstall Auger
Housing on page 11.
13. Reconnect spark plug wire.
14. Adjust attachment clutch. Refer to operator’s manual
for instructions.
IMPORTANT: Check all adjustments after first use.
Figure 72
1. Spacer Bushing
2. Bearing Plate
