Ariens 921049 - Install Traction Drive Clutch Cable

EN – 34

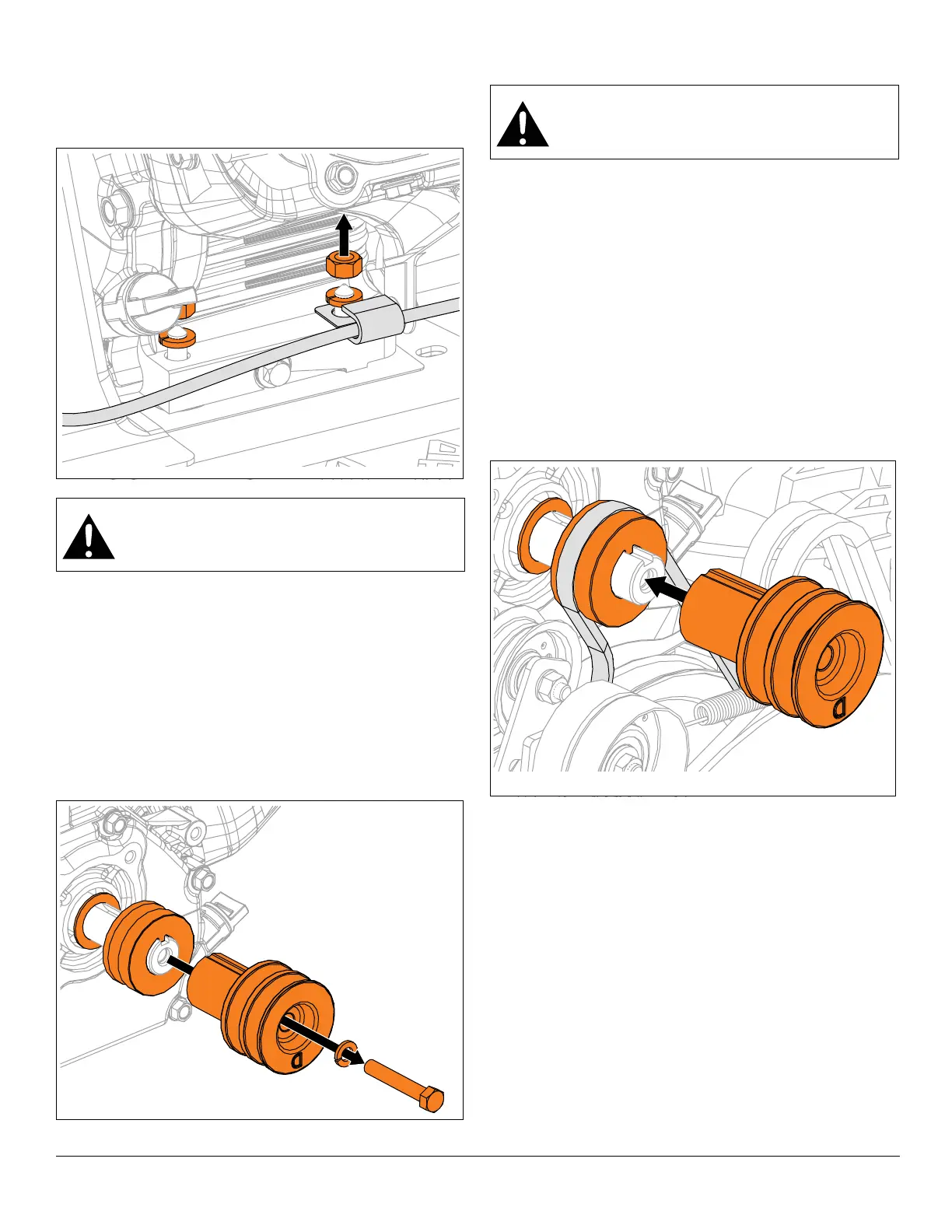

See Figure 81.
7. Remove engine mounting hardware.
8. Remove J-clamp and chute deflector cable from
engine mount.
9. Using a suitable lifting device or help from an adult
assistant, lift engine and tilt forward slightly to relieve
tension from belts. Remove belts from engine
sheaves.
10. Lower engine onto a flat, level surface.
See Figure 82.
11. Remove hardware securing attachment sheave to
crankshaft.
12. Remove attachment sheave, traction sheave and flat
steel washer from crankshaft.
Install Engine
1. Using a suitable lifting device or help from an adult
assistant, lift engine and lower onto bolts in frame.
2. Position belts over crankshaft.
3. Reinstall J-clamp to left rear engine mounting position.
4. Secure engine mount to frame with four locking nuts.
Torque to 11.9 N•m – 17.9 N•m (8.8 lb-ft – 13.2 lb-ft).
See Figure 83.
5. Reinstall flat steel washer and traction drive sheave
onto crankshaft.
6. Reinstall traction drive belt onto traction sheave.
7. Reinstall attachment drive sheave onto crankshaft.
IMPORTANT: Traction drive sheave must be reinstalled in
the orientation shown in Figure 83.
WARNING: AVOID INJURY. Engine is heavy.
NEVER lift engine without a suitable lifting device
or adult assistant.
Figure 81
Figure 82
WARNING: AVOID INJURY. Engine is heavy.
NEVER lift engine without a suitable lifting device
or adult assistant.
Figure 83
