EN – 24

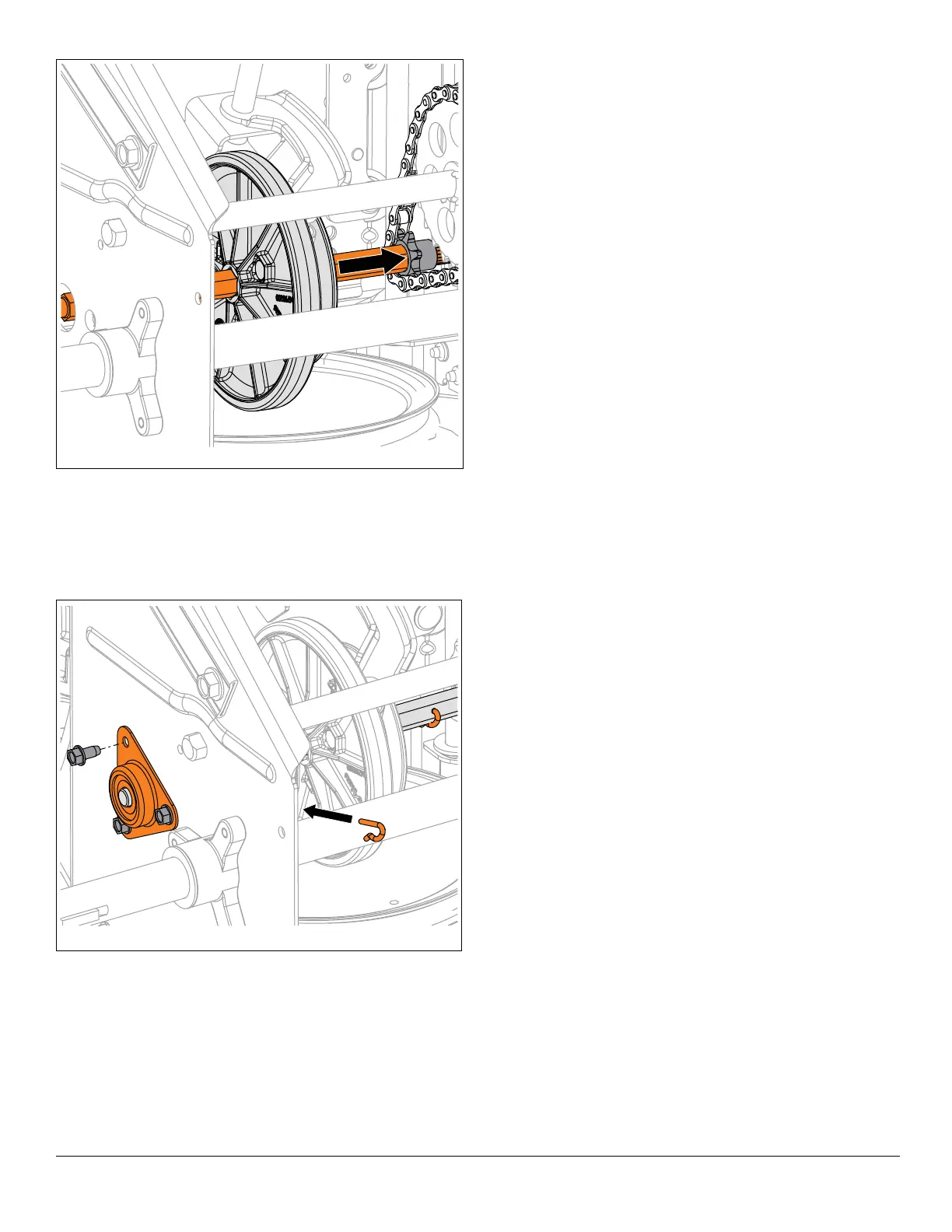

See Figure 51.
3. Reinstall spring clips into hex shaft.
4. Reinstall bearing onto hex shaft end.
5. Reinstall bearing flange over bearing and secure to
frame with three tapping screws.
6. Reinstall adjustment pin onto shift arm and secure
with hairpin.
7. Reinstall bottom cover and secure with two tapping
screws and four hex bolts.
8. Reinstall wheels onto axle and secure with snap clips.
9. Return unit to operating position.
10. Fill fuel tank and reconnect spark plug wire.
11. Adjust speed selector lever. Refer to Operator’s
Manual for adjustment procedure.
IMPORTANT: Check all adjustments after first use.
