EN – 25
HEX SHAFT BEARING REPLACEMENT
Remove Bearing
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.

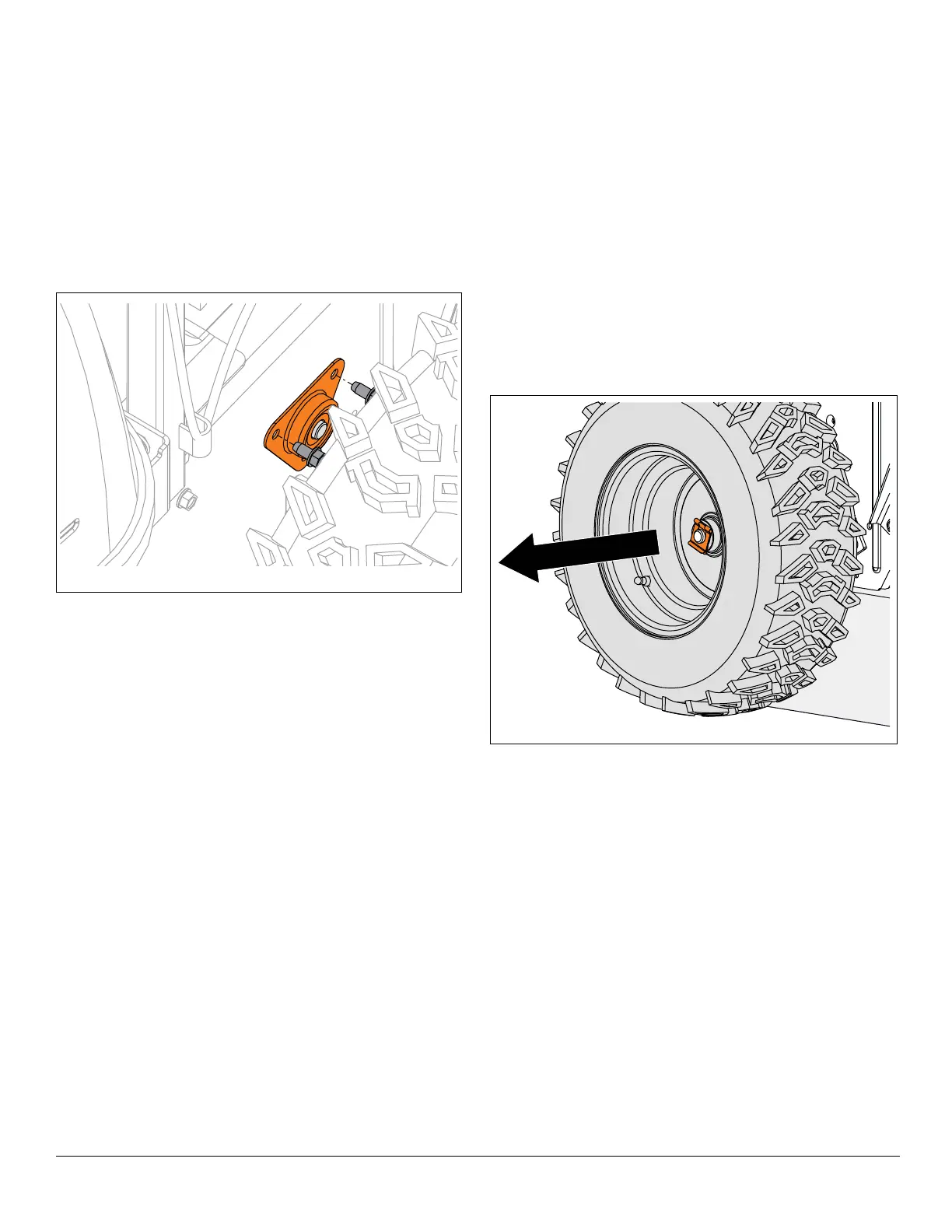

See Figure 52.
3. Remove hardware retaining bearing flange to frame
and remove flange.
4. Remove bearing from hex shaft.
Install Bearing
1. Install bearing onto hex shaft end.
2. Install bearing flange over bearing and secure to
frame with three tapping screws.
SWING GATE REPLACEMENT
Remove Swing Gate Assembly
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Remove auger housing. See Separate Housing From
Frame on page 7.
4. Remove traction drive belt. See Remove Traction
Drive Belt on page 17.
See Figure 53.
5. Position tractor / frame on a support, such as wood
blocks, so wheels are off the ground. Make sure unit is
secure and will not tip.
6. Remove snap clip from axle ends and remove wheels.
