EN – 40
See Figure 95.
3. Position left interlock cam inside interlock bracket and
align with left camshaft.
4. Insert camshaft through interlock bracket and into
interlock cam.
5. Secure camshaft to clutch lever with one tapping
screw.

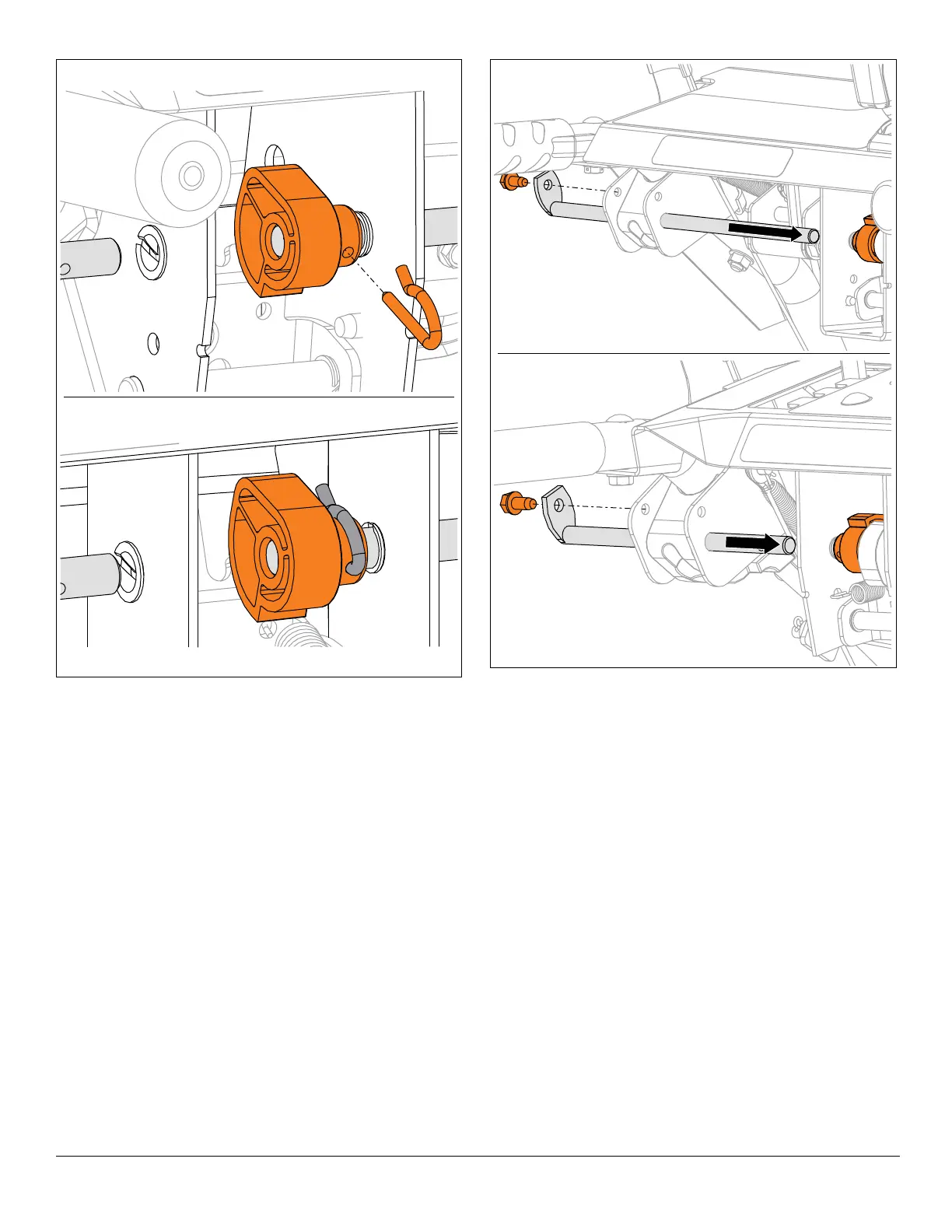

Figure 94
Models 921047, 921049, 921323,
921324, 921325, 921326, 921328
Models 921045, 921046, 921048
Figure 95
Models 921047, 921049,
921323, 921324, 921325,
921326, 921328
Models 921045,
921046, 921048
