EN – 11

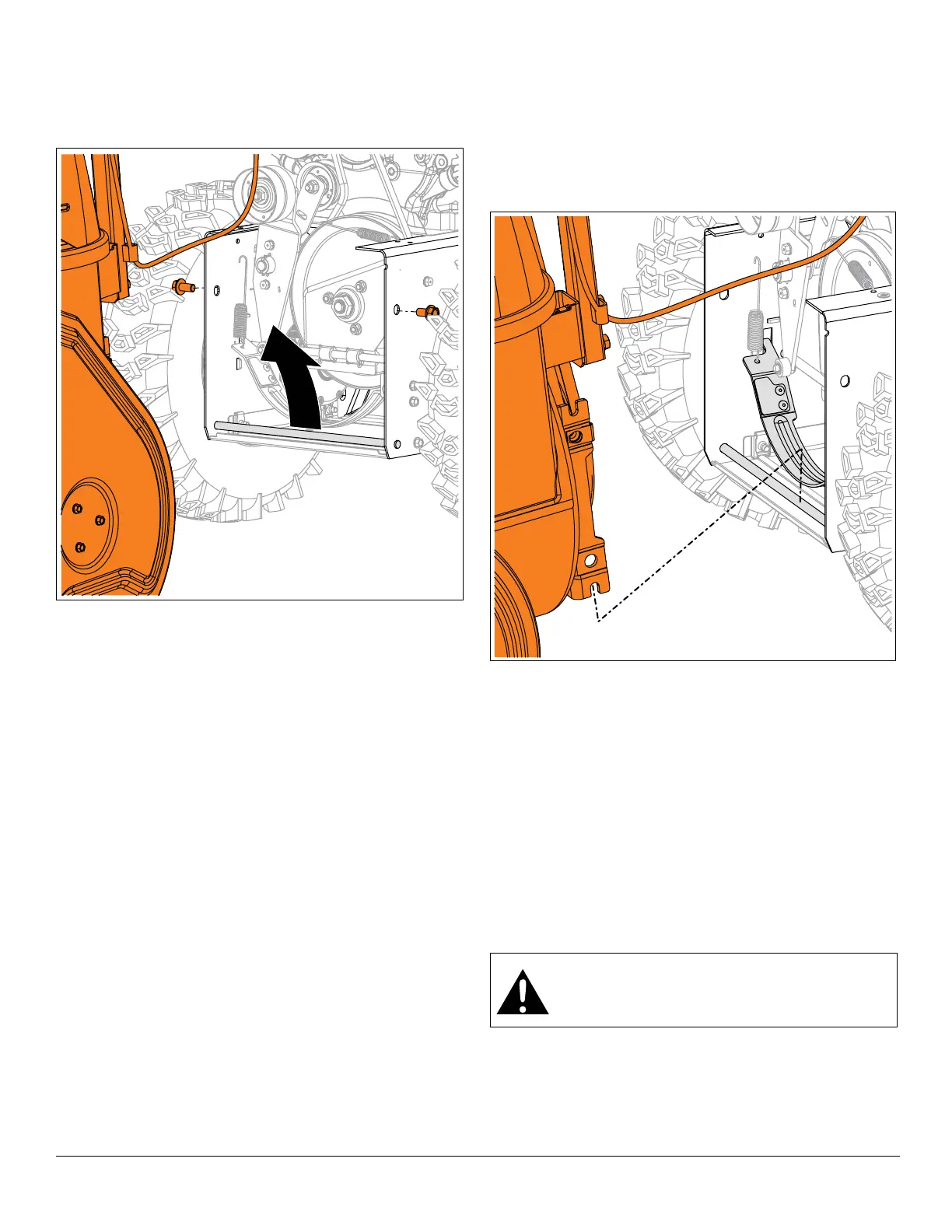

See Figure 13.
25. Remove hardware securing auger housing to frame.
26. Lift auger housing rear slightly to disengage from
mount rod and separate from unit.
Reinstall Auger Housing
See Figure 14.
1. With assistance from an adult helper, engage
attachment clutch lever so attachment brake will not
obstruct attachment drive pulley in step 2.
2. Lift auger housing rear and lower mount brackets onto
mount rod.
3. Release attachment clutch lever.
4. Align holes in mount brackets with holes in frame and
secure housing to frame with two hex bolts, but DO
NOT tighten.
IMPORTANT: Unit must be on a flat, level surface during
steps 5 – 7.
5. Check tire pressure and adjust if necessary. Refer to
Operator’s Manual for specification.
6. Torque hex bolts installed in step 4 to
33.8 N•m – 70.1 N•m (24.9 lb-ft – 51.7 lb-ft).
7. Loosen skid shoe hardware and adjust skid shoes.
Refer to Operator’s Manual for adjustment procedure.
See Figure 15.
8. Reinstall attachment drive belts onto attachment
sheave.
To assist belt installation, slowly pull recoil starter handle
while gently guiding belts onto attachment sheave.
WARNING: AVOID INJURY. Attachment sheave
edges are sharp. Wear thick gloves to install
belts onto attachment sheave.
