EN – 10

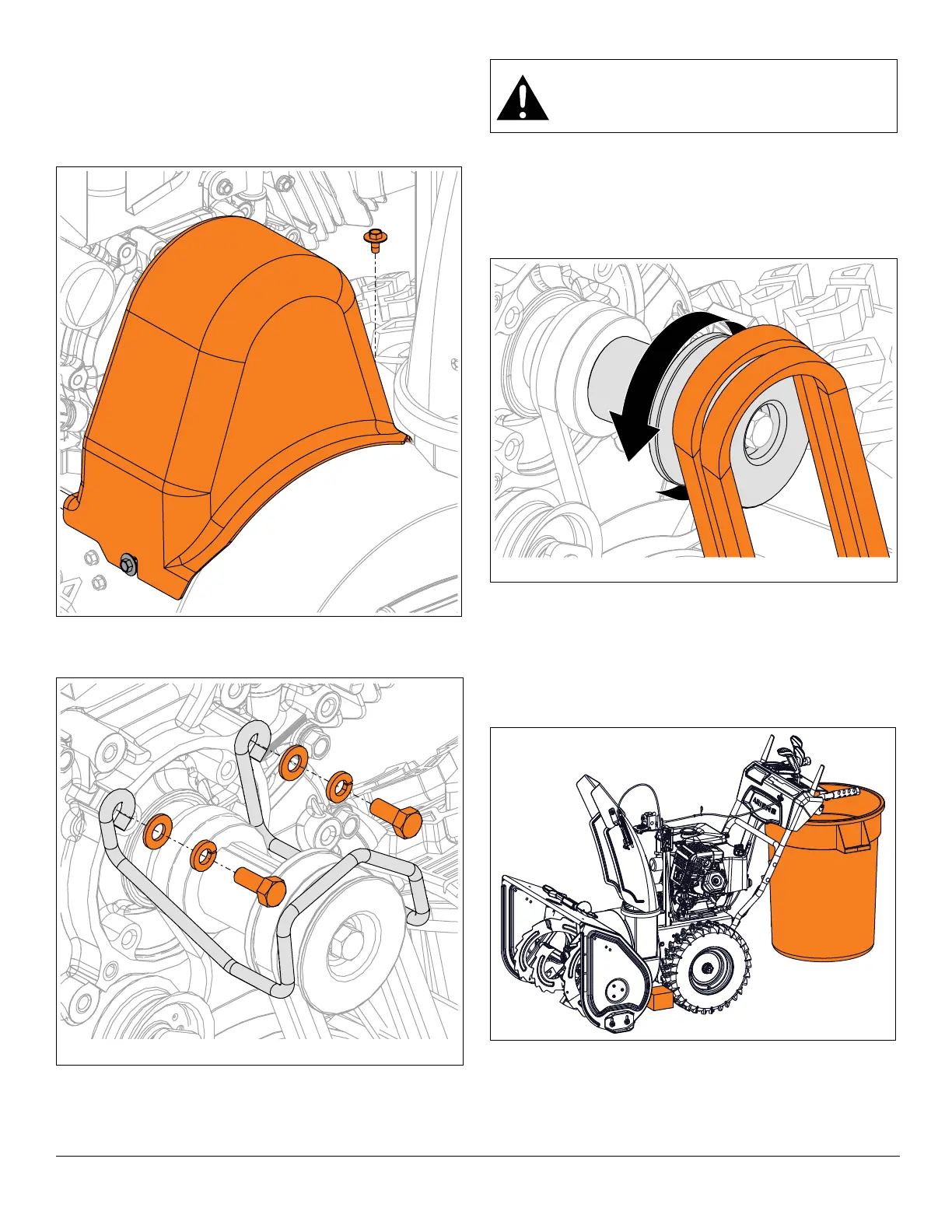

See Figure 9.
19. Remove tapping screw securing left side of belt cover
to frame.
20. Loosen, but DO NOT remove tapping screw securing
right side of belt cover to frame and remove belt cover.
21. Remove hardware retaining belt finger to engine and
remove belt finger. See Figure 10.
See Figure 11.
22. Remove attachment drive belts from attachment
sheave.
To assist belt removal, slowly pull recoil starter handle
while gently guiding belts out of attachment sheave.
See Figure 12.
23. Position support, such as a trash can, under
handlebars so tractor / frame remains upright when
separated from auger housing.
24. Chock or block wheels to prevent tractor / frame
movement.
WARNING: AVOID INJURY. Attachment sheave
edges are sharp. Wear thick gloves to remove
belts from attachment sheave.
