64

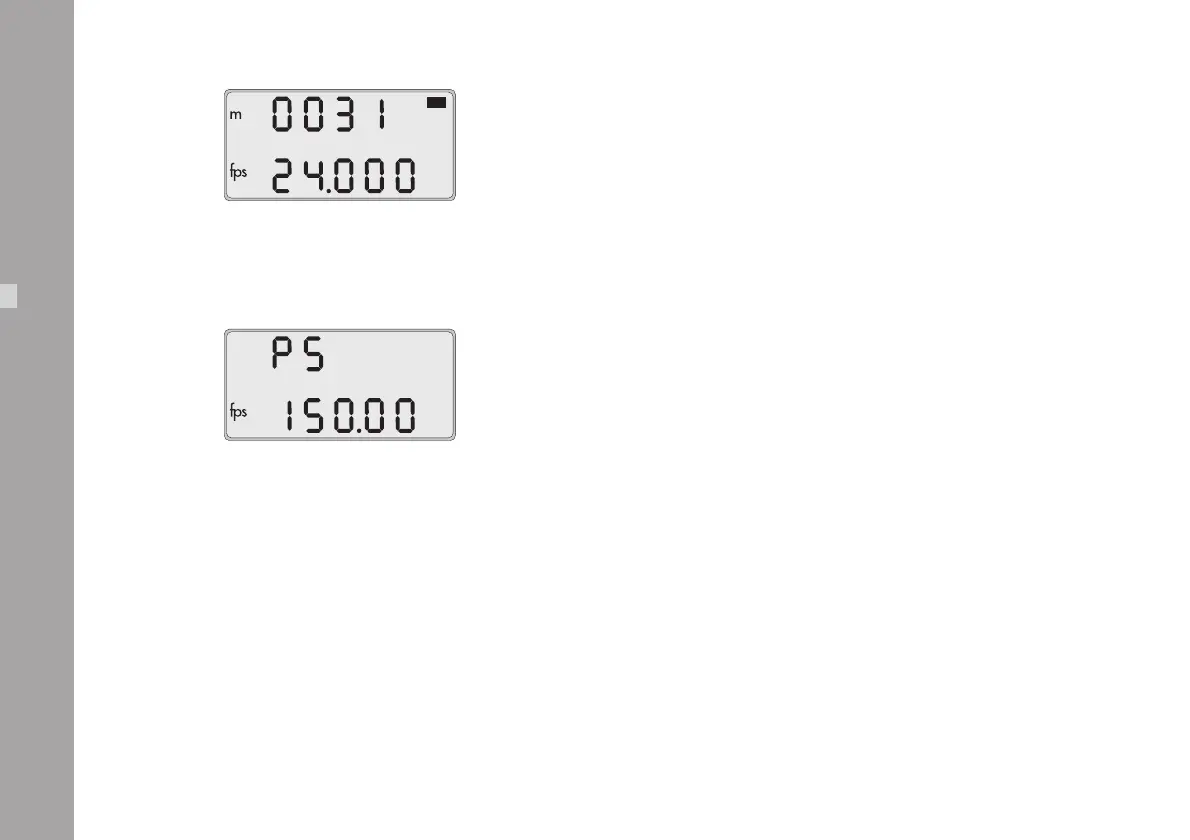

Selecting a Standard Frame Rate
(Mode 1)
Standby Operation
• The camera must be in Mode 1 and the “NORM/PS”
switch must be in the position “NORM”.
• Depress the “SEL”-button repeatedly until the desired
frame rate is selected. Within 3 seconds, confirm this
choice by depressing the “SET”-button, otherwise the
initial setting is retained.
Setting a Programmed Frame Rate
(Mode 2)
Standby Operation
• Change from Mode 1 to Mode 2 by depressing the
“MODE”-button once.
• Depress the “SEL”-button repeatedly until the digit to
be set blinks.
• Depress the “SET”-button repeatedly until the desired
value is reached.
• Repeat this procedure until all digits are set to the
desired values. For frame rates below 100 fps, a “0“
should be entered as the first digit, for frame rates
above 100 fps, a “1“. A final confirmation of the set
frame rate is not necessary.
Note: The frame rate can be set between 0.1 and 150 fps.
For frame rates over 130 fps and a ramping speed
set to LO or St, the power supply voltage has to
be at least 24 V. for rampspeed Hi at least 26.5 V.
Note: The programmed frame rate is stored in a non-
volatile memory.
Camera Operation
