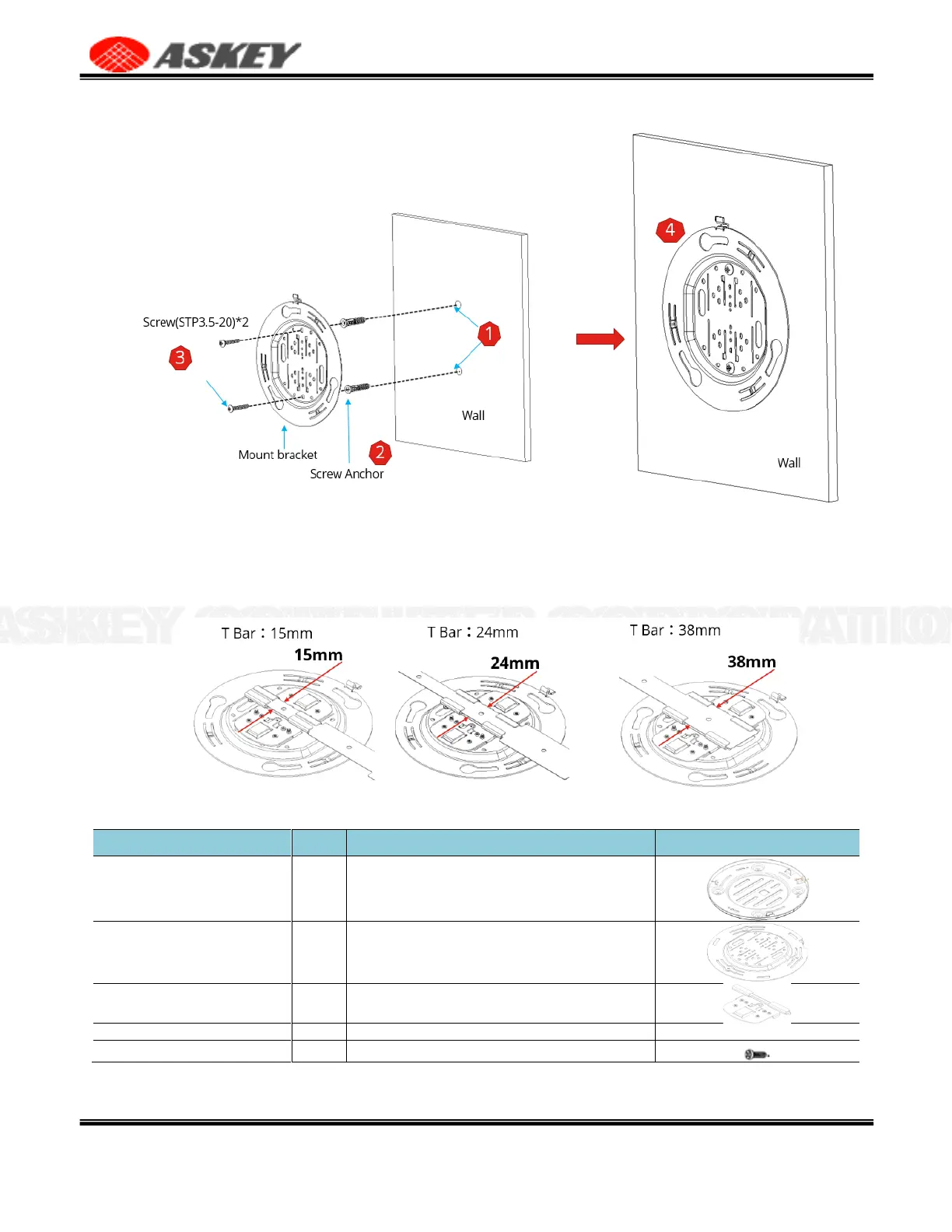

Figure 6. Wall Mount Overview
2.4.3 Ceiling Mount
Only 3 widths of T bar are supported, 15mm, 24mm & 38mm.
Figure 7. T Bar Width
Table 6 List of Items for Ceiling Mount
Items
Qty
Description
1. Mount base
1
Fix the mount base to NR xCell 46116A with M4 screw*4
2. Mount bracket
1
Fixed to the T bar, used with the mount base to fix the NR
xCell 46116A
3. Ceiling bracket
2
To fix T bar & mount bracket
4. M3 Screw
6
To fix the ceiling bracket
5. M4 Screw
4
To fix the mount base to NR xCell 46116A
