Table 17. The Askey 5G NR Small Cell DU Configuration – Time Slot Format
Items
Descriptions
Profile
List the common time slot patterns and provide the default value for detailed setting
numDlSlot
The number of downlink slots
numDlSlot2
The number of P2 downlink slots
numDlSymbol
The number of downlink symbols for slot format
numDlSymbolP2
The number of P2 downlink symbols for slot format
numUlSlot
The number of uplink slots
numUlSlotP2
The number of P2 uplink slots
numUlSymbol
The number of uplink symbols for slot format
numUlSymbolP2
The number of P2 uplink symbols for slot format
p2Pres
The Pattern 2 (P2) presence value
PrachCfgIdx
The PRACH configuration index value
PreambleFormat
Long preamble: Format 0, 1, 2, and 3
Short preamble: Format A1, A2, A3, B1, B2, B3, B4, C0, and C2

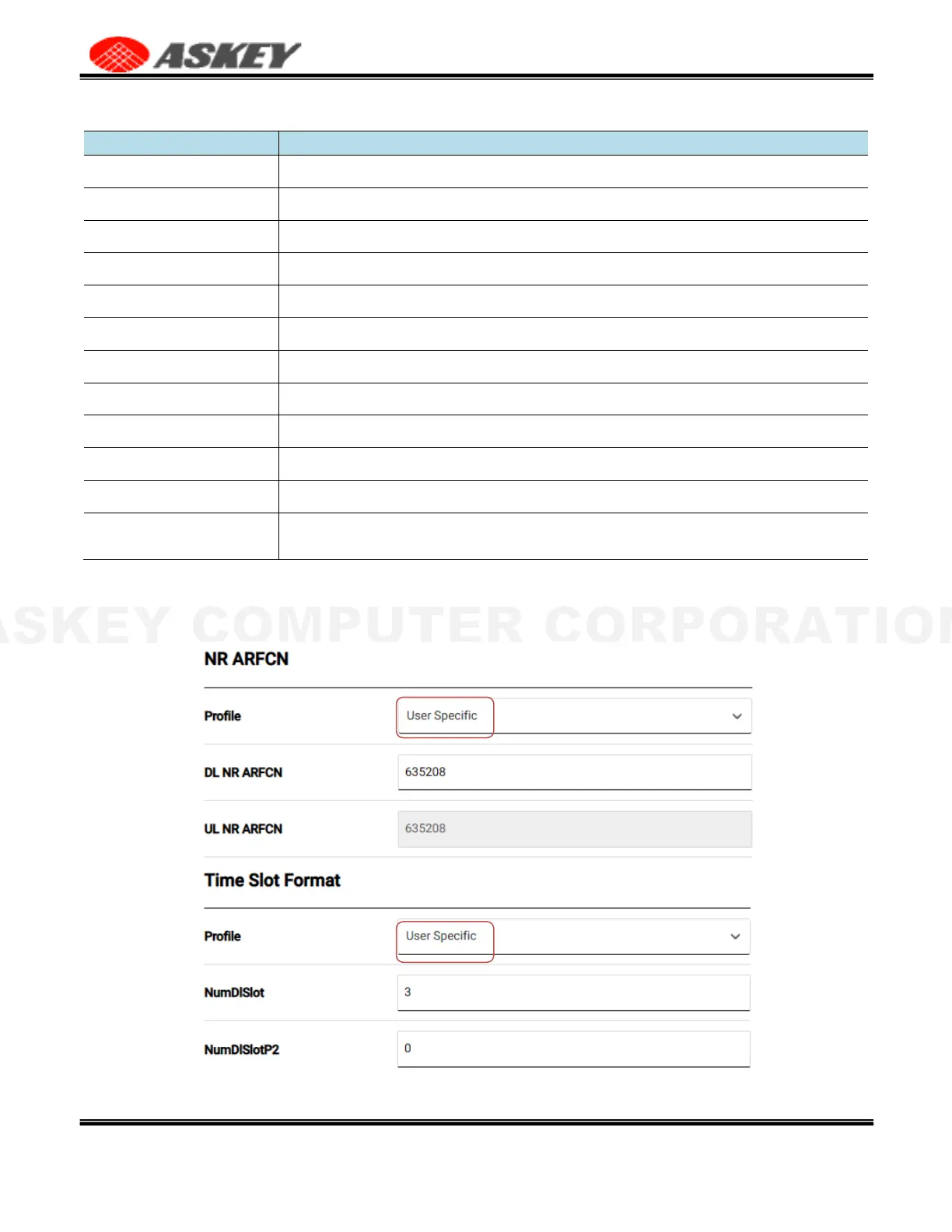

In the NR ARFCN and Time Slot Format configurations, the detailed items will be read-only for the pre-
defined profile. If the user wants to modify the detailed items, the profile should be selected to “User
Specific”.
