ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 39

You can click the upper button to switch the configuration from gNB CU to gNB DU, and vice versa.

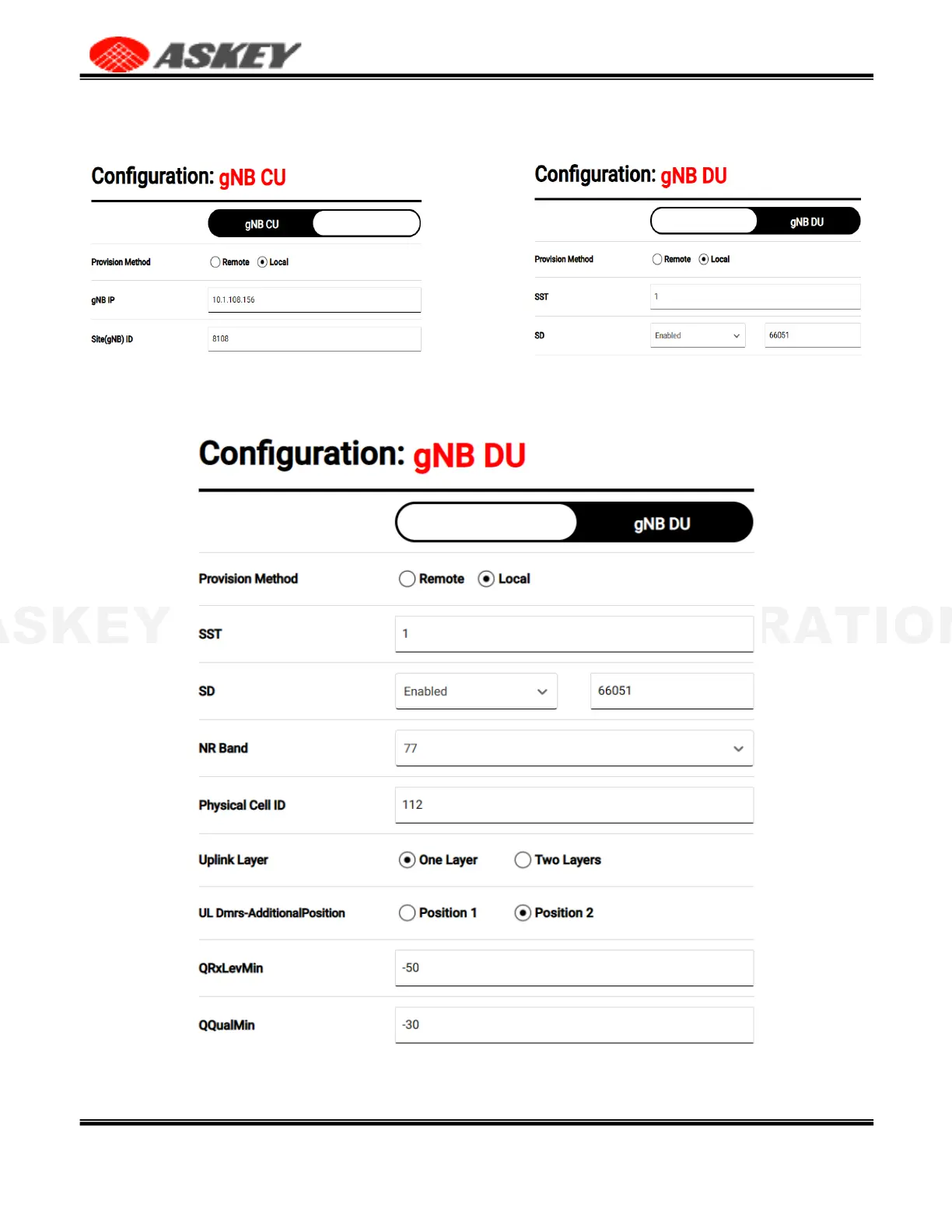

Figure 36. The Askey 5G NR Small Cell Switch CU or DU Configuration

There are many items in the DU configuration tab; they can be split by Common Items, Bandwidth Profile,

NR ARFCN Profile, and Time Slot Profile.

Figure 37. The Askey 5G NR Small Cell DU Configuration – Common Items

Table 15. The Askey 5G NR Small Cell DU Configuration – Common
