ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 29

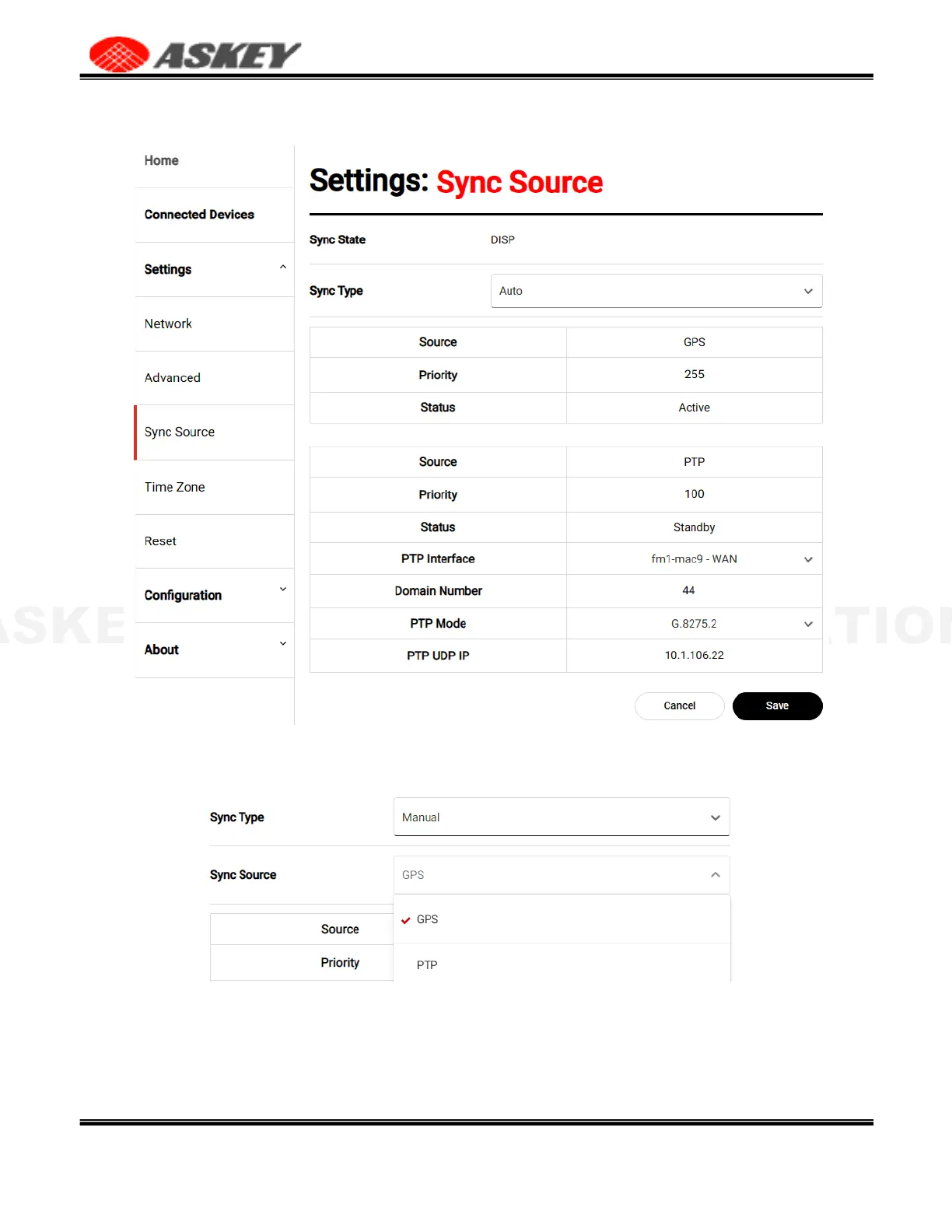

Figure 28. The Askey 5G NR Small Cell Sync Source Page

The sync type can be Auto or Manual. If the type is Manual, you should specify GPS or PTP as the sync

source.

The PTP Mode will be G.8275.1 or G.8275.2. If the mode is G.8275.2, it should also specify the PTP UDP

IP.
