ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 53

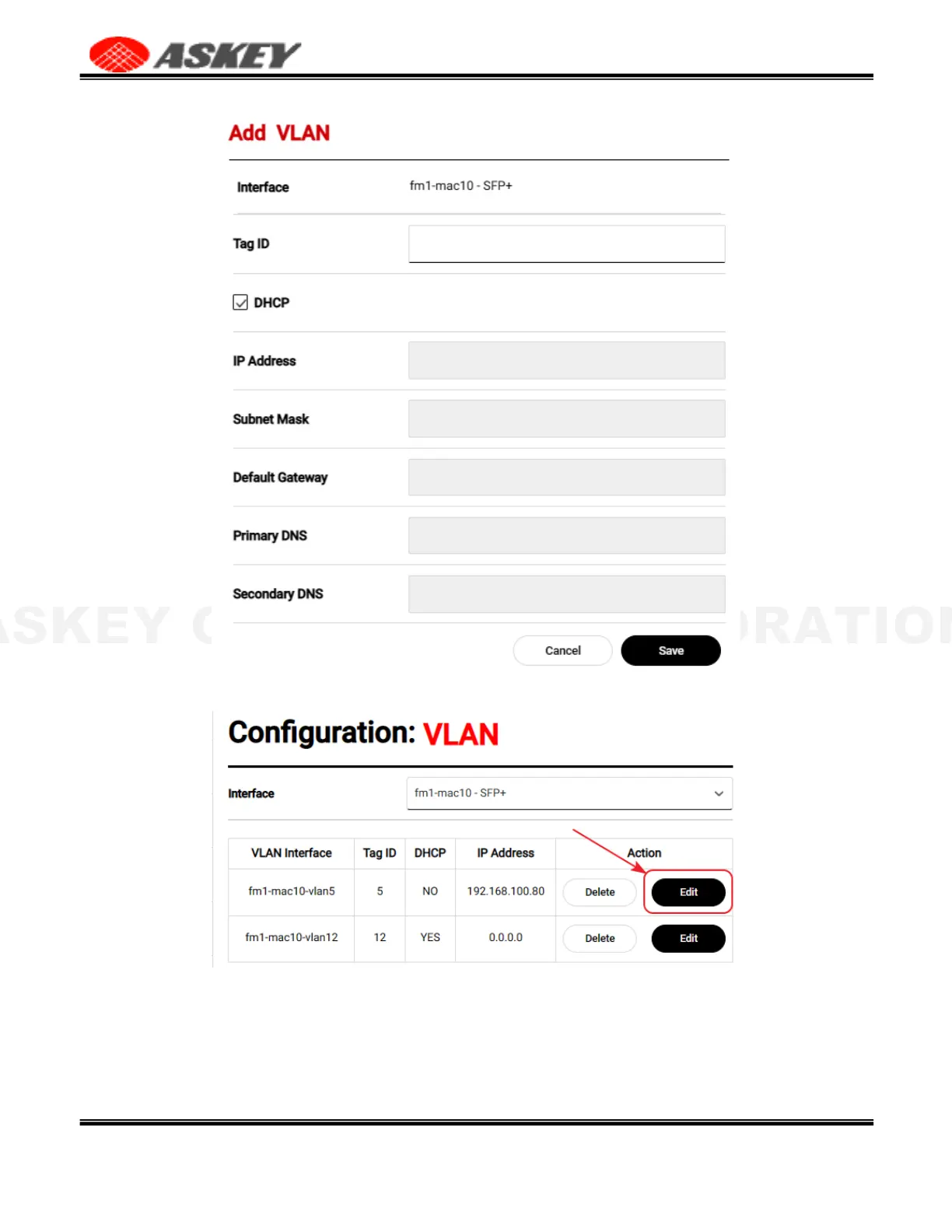

Click the Edit button in the VLAN list will prompt a window to update the specified VLAN configuration.

Figure 48. The Askey 5G NR Small Cell VLAN Page – Update Operation
