ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 18

The GPS coordinates will be displayed at the bottom of the page if the GPS location is acquired. You can

click the “GPS Detail” link to surf the GPS information page or click the “Map” to open the map illustration

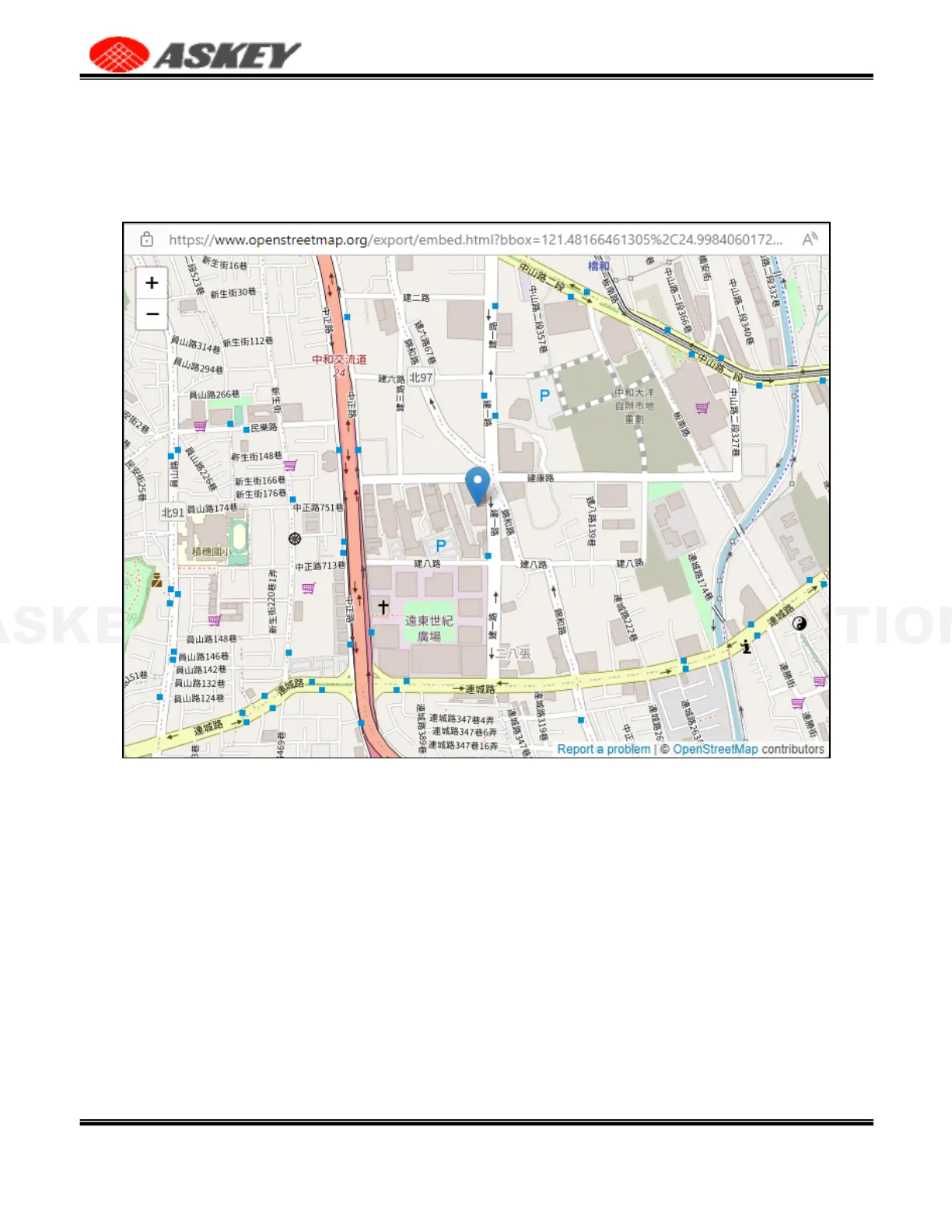

Figure 18. Map Illustration
