ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 35

3.5.2 gNB

This Askey 5G NR Small Cell gNB page shows the principal configurations of CU and DU. There are some

items different between SA and NSA mode. These items on Web GUI will be read-only in the remote provision

method except for gNB IP because the value of gNB IP address may be one of the physical network interfaces

or VLAN interfaces.

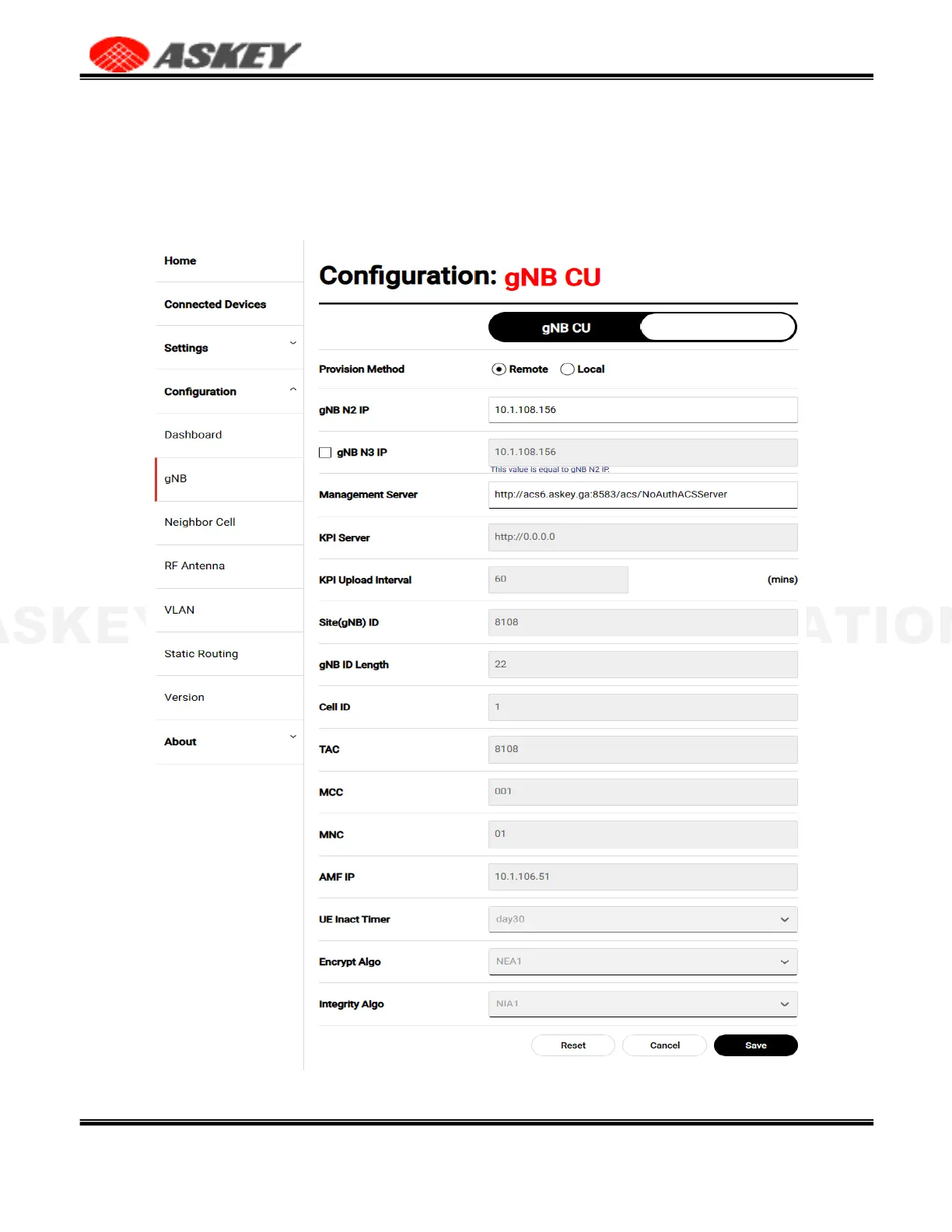

Figure 32. The Askey 5G NR Small Cell gNB Page
