ASKEY COMPUTER CORPORATION

Chapter 3. The Askey 5G NR Small Cell Admin Website

NR xCell 46116A User Guide 37

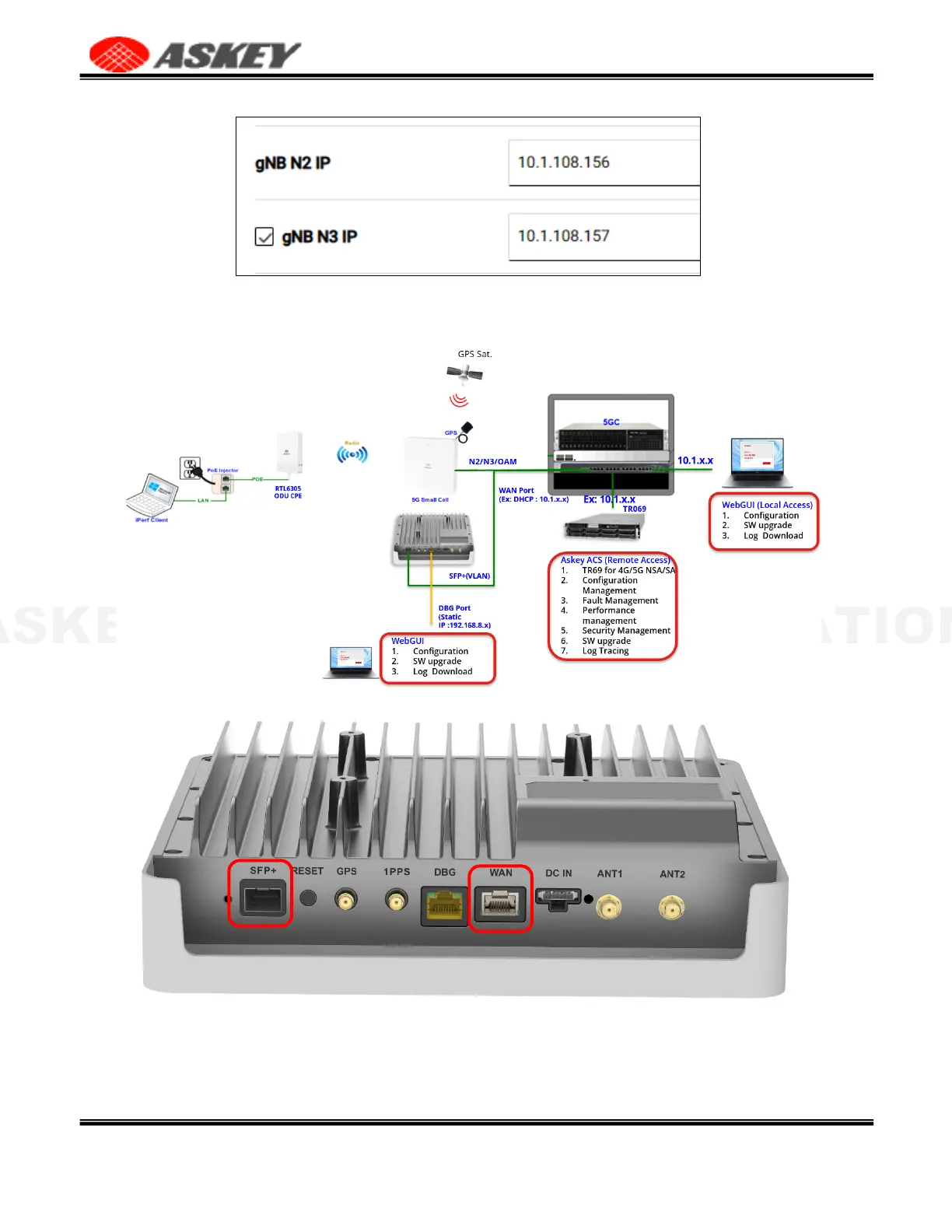

According the following figure, you should check whether the gNB IP is correct based on the network

setting and whether the cable connects to the WAN port, SFP+ port, or one of the VLAN IP addresses.

Figure 34. The Askey OAM Architecture

Figure 35. VLAN IP Adress
